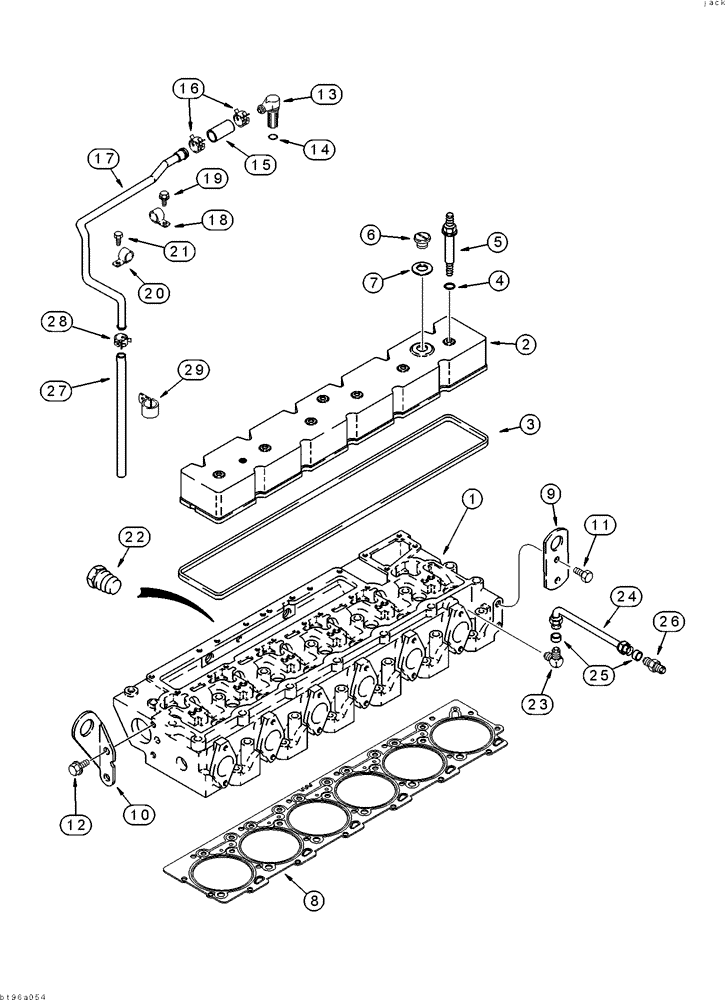

Запчасти Case IH 2155 (2-29A) - CYL. HEAD COVER & GASKET, 6TA-830 EMISSIONS CERTIFIED ENG., COTTON PICKER P.I.N. JJC0156230 & AFT. (01) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, parts list page 2-35B

1шт.

2

J927907

VALVE COVER

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, sealing

6шт.

5

J922639

STUD

- valve cover

6шт.

6

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

8

J928168

GASKET

- cylinder head, standard

1шт.

8

J928180

GASKET

- cylinder head, 0.25 mm thicker

1шт.

8

J928181

GASKET

- cylinder head, 0.50 mm thicker

1шт.

9

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, Front lifting bracket to cylinder head

2шт.

12

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, Rear lifting bracket to cylinder head

2шт.

13

J920497

ELBOW

CONNECTOR - 90 degree, breather vent

1шт.

14

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Breather tube -115, 70 Duro, .674" ID x .103" Thk

1шт.

15

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Connector 19.05 mm ID x 51.00 mm

1шт.

16

J918163

CLIP

CLAMP - spring type

2шт.

17

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

18

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Breather tube to valve cover M15.88, M9.52 Bolt Hole

1шт.

19

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm, breather tube clamp to valve cover

1шт.

20

A77538

CLIP

CLAMP - P-style, breather tube to cylinder head

1шт.

21

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

1шт.

22

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

23

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT

1шт.

24

J924589

TUBE,6.35 mm OD x 112.6 mm L

- vent, air, to thermostat housing

1шт.

25

222-153

SLEEVE,1/4" Tube

2шт.

26

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/8 inch PT

1шт.

27

1546368C1

LARGE HOSE

HOSE - 35-1/4 inch (895 mm) long, cut from 1977295CX bulk hose, cylinder head breather, not part of engine assembly, see below

1шт.

28

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable, Not part of engine assembly #24

1шт.

29

1345263C1

CLIP

CLAMP - J-type, 3/4 inch ID

2шт.

1977295CX

LARGE HOSE

HOSE - bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long

1шт.
