(3-07A) - FUEL INJ. PUMP & DRIVE, 6TA-830 EMISSIONS CERT. ENGINE, COTTON PICKER S/N JJC0156230 AND AFTER

Запчасти Case IH 2155 (3-07A) - FUEL INJ. PUMP & DRIVE, 6TA-830 EMISSIONS CERT. ENGINE, COTTON PICKER S/N JJC0156230 AND AFTER (02) - FUEL SYSTEM

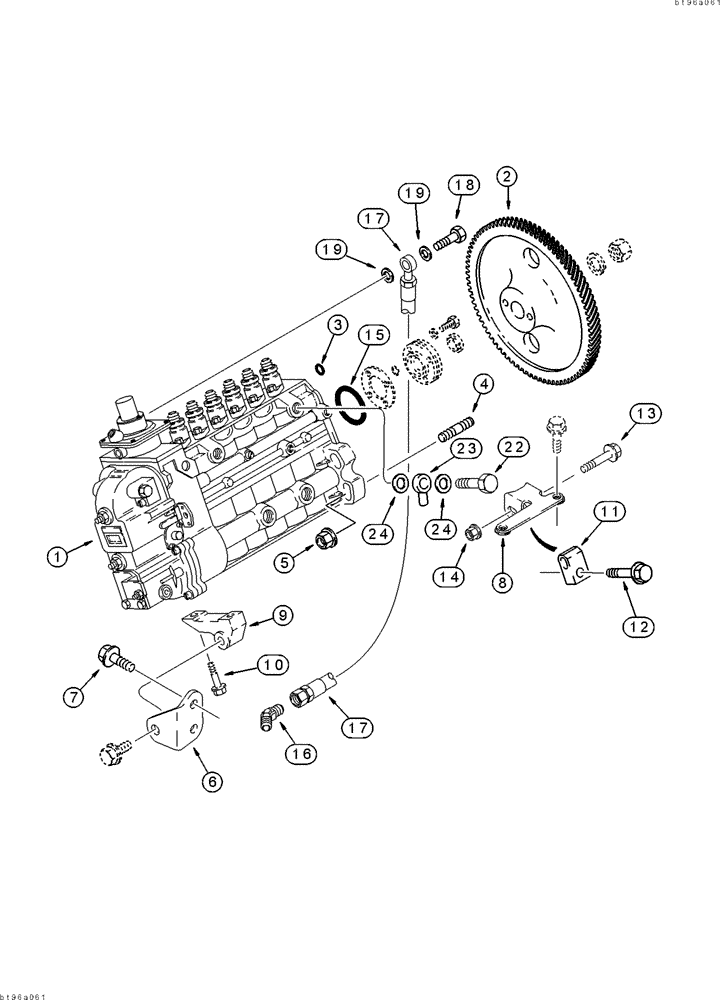

Схема запчастей Case IH 2155 - (3-07A) - FUEL INJ. PUMP & DRIVE, 6TA-830 EMISSIONS CERT. ENGINE, COTTON PICKER S/N JJC0156230 AND AFTER (02) - FUEL SYSTEM
3
9
13
8
12
19
17
10
19
24
17
15
7
11
6
22
16
14
1
23
5
4
18
2
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J926887

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, with aneroid, component parts not serviced separately

1шт.

1

JR926887

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1

JC926887

CORE-INJECTION PUMP

Return Number

1шт.

2

J923578

GEAR

GEAR - fuel pump

1шт.

3

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

RING - quad, fuel injection pump

1шт.

4

J915036

STUD

STUD - pump mounting, 55 mm (2-5/32 in)

4шт.

5

J902662

FLANGE NUT

NUT - hex flange, 10 mm

4шт.

6

J930597

SUPPORT

SUPPORT - injection pump, injection pump to cylinder block

1шт.

The phantom bolt shown with item (6) is J920622

1шт.

7

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

BOLT - heavy hex flange, 10 - 1.5 x 20 mm, support to block

2шт.

8

J930382

HOLDER

BRACKET - fuel pump

1шт.

9

J926273

SUPPORT

SUPPORT - injection pump, lower

1шт.

10

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

BOLT, , Injection pump to lower support Hex Flg, M8 x 90, 8.8

2шт.

11

J930383

SUPPORT

SUPPORT - bracket to fuel pump

1шт.

12

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

BOLT - heavy hex flange, 10 - 1.5 x 40 mm, support to pump

1шт.

13

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 45 mm, 8.8, Upper bracket to support

1шт.

14

J900589

NUT

NUT - hex flange, special, 8 mm

1шт.

15

J924605

SEAL

SEAL - rectangular ring, injection pump to gear housing

1шт.

16

222-1704

ELBOW,45 Degree, 7/16"-24, 45 Degree Fl x 1/4 NPT

ELBOW - 45 degree, 7/16-20 flare x 1/8 inch PT

1шт.

17

J916779

FUEL HOSE,508.00 mm

1шт.

18

J918002

BANJO BOLT

SCREW - banjo

1шт.

19

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm

2шт.

22

J926563

VALVE

VALVE - overflow

1шт.

23

J911447

CONNECTOR, ELEC

CONNECTOR CONNECTOR - banjo, fuel return

1шт.

24

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.
