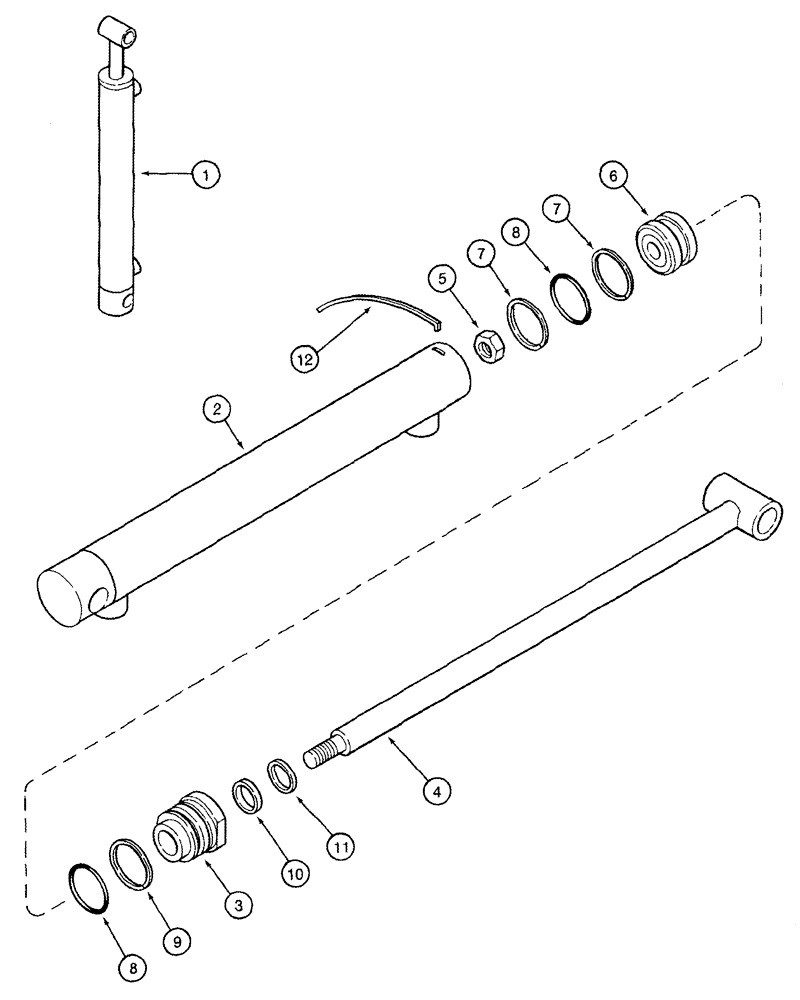

Запчасти Case IH 2555 (08-41) - BASKET DOOR CYLINDER - BSN JFG010001 (07) - HYDRAULICS

1

1282155C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 373.5mm Stroke

Basket Door, 51 ID x 374 mm strk, Inc. 2 - 12

2шт.

2

NSS

NOT SOLD SEPARAT

Tube

1шт.

3

108641C1

GLAND

1шт.

4

1282222C1

PISTON ROD

1шт.

5

231-41310

LOCK NUT,5/8"-11, GB

5/8

1шт.

6

108640C2

PISTON

1шт.

7

381850R2

BACK-UP RING,Split, 41.68mm ID x 51.18mm OD x 2.39mm Thk

2шт.

8

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

2шт.

9

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

1шт.

10

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

1шт.

11

532773R1

WIPER SEAL

1шт.

12

461180R1

RETAINER

169 mm (6-1/4 in)

1шт.

63884C92

SEAL KIT

Inc. 7 - 12, No Longer Available, Order Components

1шт.
