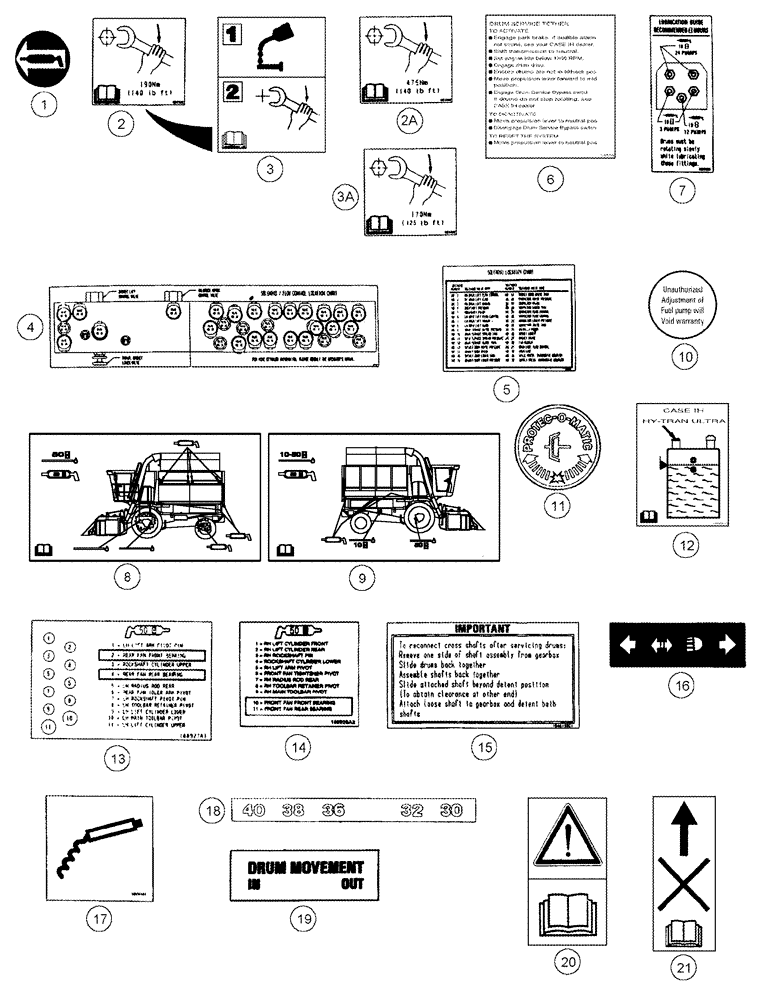

Запчасти Case IH 2555 (09F-22) - DECALS - GENERAL INSTRUCTIONS (12) - CHASSIS

1

128490C1

DECAL

Grease Fitting Locator

8-10шт.

2

181916A2

DECAL

Wheel Bolt Torque, Models with Standard Steering

2шт.

2a

181917A2

DECAL

Wheel Bolt Torque, Models with Mud Hog

2шт.

3

321233A1

DECAL

Wheel Bolt Torque, Serial Range: -JJC0249799

2шт.

3a

181992A1

DECAL

Wheel Bolt Torque, Start Serial: JJC0249800

2шт.

4

1546129C1

DECAL

Solenoid/Flow Control Location Chart, English

1шт.

4

302623A1

DECAL

Solenoid/Flow Control Location Chart, Spanish Language, European Models, Latin American Spanish

1шт.

4

302353A1

DECAL

Solenoid/Flow Control Location Chart, Portuguese Language

1шт.

5

1546130C2

DECAL

Solenoid Location Chart, English

1шт.

5

109145A1

DECAL

Solenoid Location Chart, Spanish Language, European Models, Latin American Spanish

1шт.

5

302223A1

DECAL

Solenoid Location Chart, Portuguese Language

1шт.

6

194003A2

DECAL

Drum Service Tether, English

1шт.

6

254902A2

DECAL

Drum Service Tether, Spanish Language, European Models, Latin American Spanish

1шт.

6

302229A2

DECAL

Drum Service Tether, Portuguese Language

1шт.

7

1990032C2

DECAL

Drum Lubrication Guide, Recommended Hours, English

4-5шт.

7

1546225C1

DECAL

Drum Lubrication Guide, Recommended Hours, Spanish LanguageEuropean Models, Latin American Spanish

4-5шт.

7

302289A1

DECAL

Drum Lubrication Guide, Recommended Hours, Portuguese Language

4-5шт.

8

186940A1

DECAL

Lubrication Chart, Left Hand Chassis, Serial Range: -JJC0249555

1шт.

419896A1

DECAL

Lubrication Chart, Left Hand Chassis, Serial Range: JJC0249555-JJC0249799

1шт.

8

87417846

DECAL

Lubrication Chart, Left Hand Chassis (Shown), Start Serial: JJC0249800

1шт.

9

186939A1

DECAL

Lubrication Chart, Right Hand Chassis, Serial Range: -JJC0249555

1шт.

419895A1

DECAL

Lubrication Chart, Right Hand Chassis, Serial Range: JJC0249555-JJC0249799

1шт.

9

87417845

DECAL

Lubrication Chart, Right Hand Chassis (Shown), Start Serial: JJC0249800

1шт.

10

184666A1

DECAL

Warranty, Fuel Pump, English

1шт.

10

184669A1

DECAL

Warranty, Fuel Pump, Spanish Language, European Models, Latin American Spanish

1шт.

10

278583A1

DECAL

Warranty, Fuel Pump, Portuguese Language

1шт.

11

1545966C1

DECAL

Protec-O-Matic

1шт.

12

186936A3

DECAL

Hydraulic Oil Level

1шт.

13

188927A1

DECAL

Lube Bank, Left Hand, English

1шт.

13

254900A1

DECAL

Lube Bank, Left Hand, Spanish Language, European Models, Latin American Spanish

1шт.

13

302350A1

DECAL

Lube Bank, Left Hand, Portuguese Language

1шт.

14

188928A2

DECAL

Lube Bank, Right Hand, English

1шт.

14

302349A1

DECAL

Lube Bank, Right Hand, Portuguese Language, European Models

1шт.

14

254901A1

DECAL

Lube Bank, Right Hand, Spanish Language, Latin American Spanish

1шт.

15

1546103C1

DECAL

Cross Shaft Reconnect, English

4-5шт.

15

254991A1

DECAL

Cross Shaft Reconnect, Spanish Language, European Models, Latin American Spanish

4-5шт.

15

302227A1

DECAL

Cross Shaft Reconnect, Portuguese Language

4-5шт.

16

120332A1

DECAL

Directional Arrows

1шт.

17

186944A1

DECAL

Tether Location

1шт.

18

120789A1

DECAL

Service Channel Guide, Left Hand, 4 Row Narrow

1шт.

19

1982880C2

DECAL

English

1шт.

19

254990A1

DECAL

Spanish Language, European Models, Latin American Spanish

1шт.

19

302352A1

DECAL

Portuguese Language

1шт.

20

256147A1

DECAL

Read the Operator's Manual, Spanish Language, European Models

1шт.

21

314781A1

DECAL

Spanish Language, European Models

1шт.

313050A5

PACKAGE

4 Row and 5 Row - All, Spanish Language, European Models, Includes 4 - 7, 10, 13 - 15, 19, See Page(s) 09F-23 - 09F-25

1шт.

304850A6

PACKAGE

4 Row and 5 Row - All, Latin American Spanish, Order Components, Includes 4 - 7, 10, 13 - 15, 19, See Page(s) 09F-23 - 09F-25

1шт.

304852A8

PACKAGE

4 Row and 5 Row - All, Portuguese Language, Order Components, Includes 4 - 7, 10, 13 - 15, 19, See Page(s) 09F-23 - 09F-25

1шт.
