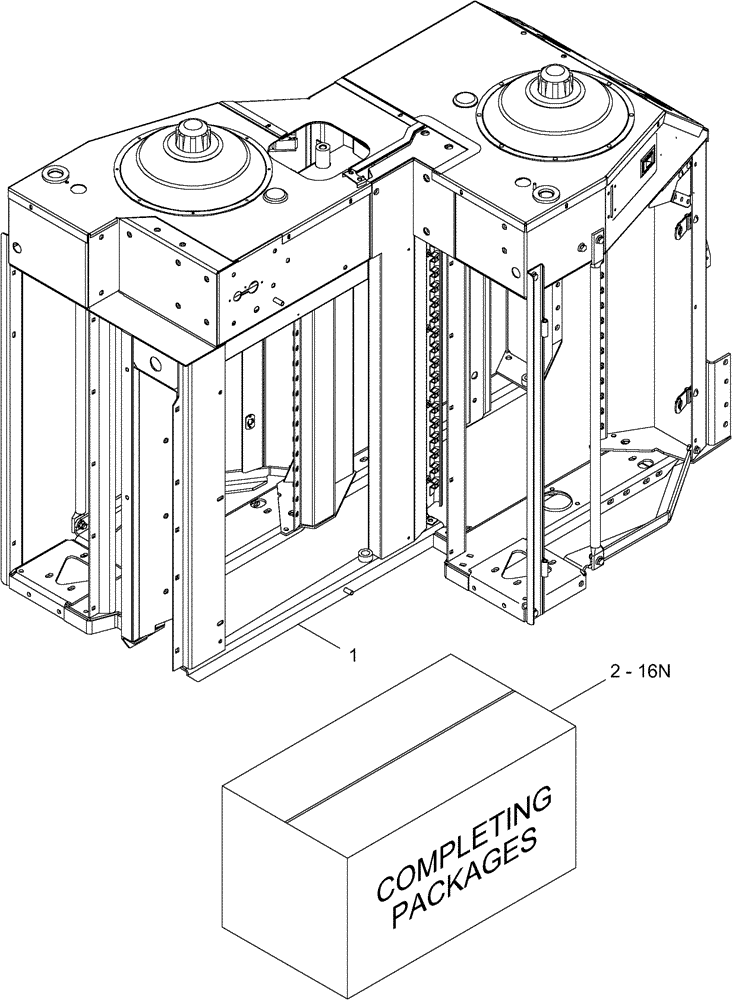

Запчасти Case IH 2555 (09A-40) - DRUM SERVICE ASSEMBLIES / COMPLETING PACKAGES (13) - PICKING SYSTEM

378509A2

DRUM

Assembly, Service, Drum #1, 4 Row Narrow; Inc. 1A, 2, 3, 6A, 7B, 9, 11C, 12C, 14, 15, 16B

1шт.

378510A2

DRUM

Assembly, Service, Drum #2, 4 Row Narrow; Inc. 1, 2A - 4A, 5, 6B, 7B, 11D, 12A, 13B, 14A, 15C, 16D

1шт.

378511A1

DRUM

Assembly, Service, Drum #3, 4 Row Narrow; Inc. 1 - 3, 4A, 5, 8B, 10A, 12C, 14A, 15C, 16E, 17

1шт.

378512A2

DRUM

Assembly, Service, Drum #4, 4 Row Narrow; Inc. 1 - 3, 4A, 5, 6, 7A, 8, 9, 10A, 11, 12E, 14, 15A, 16C

1шт.

378499A2

DRUM

Assembly, Service, Drum #1, 4 Row Wide; Inc. 1 - 6, 7A, 8B, 9A, 10B, 11, 12 , 15 - 16

1шт.

378500A2

DRUM

Assembly, Service, Drum #2, 4 Row Wide; Inc. 1A, 2 - 7, 9, 10C, 11A, 12B, 13, 14A, 15C, 16A

1шт.

378502A2

DRUM

Assembly, Service, Drum #3, 4 Row Wide; Inc. 1 - 7, 8B, 10D, 11B, 12D, 13, 15C, 16F

1шт.

378503A2

DRUM

Assembly, Service, Drum #4, 4 Row Wide; Inc. 1 - 6, 7A, 8A, 9, 10B, 11, 12E, 13A, 14, 15A, 16C

1шт.

378505A2

DRUM

Assembly, Service, Drum #1, 4 Row Wide, High Yield; Inc. 1B, 2 - 6, 7A, 8B, 9A, 10B, 11, 12, 14 - 16

1шт.

378506A2

DRUM

Assembly, Service, Drum #2, 4 Row Wide, High Yield; Inc. 1C, 2 - 7, 9, 10C, 11A, 12B, 13, 14A, 15C, 16A

1шт.

378507A2

DRUM

Assembly, Service, Drum #3, 4 Row Wide, High Yield; Inc. 1B, 2 - 7, 8B, 10D, 11B, 12D, 13 , 14A, 15C, 16F

1шт.

378508A2

DRUM

Assembly, Service, Drum #4, 4 Row Wide, High Yield; Inc. 1B, 2 - 6, 7A, 8A, 10B, 11 , 12E, 15A

1шт.

378513A2

DRUM

Assembly, Service, Drum #1, 5 Row Narrow; Inc. 1 - 3, 4A, 5, 6, 7A, 8B, 9A, 10A, 11, 12, 14 - 16

1шт.

378514A2

DRUM

Assembly, Service, Drum #2, 5 Row Narrow; Inc. 1A, 2, 3, 6A, 7B, 9, 11C, 12C, 14, 15A, 16G, 17

1шт.

378515A2

DRUM

Assembly, Service, Drum #3, 5 Row Narrow; Inc. 1, 2A - 4A, 5, 6B, 7B, 10, 11D, 12F, 13B, 14A, 15C, 16H

1шт.

378516A2

DRUM

Assembly, Service, Drum #4, 5 Row Narrow; Inc. 1 - 3, 4A, 5, 8B, 10A, 12C, 14, 15A, 16J, 17

1шт.

378517A2

DRUM

Assembly, Service, Drum #5, 5 Row Narrow & Wide; Inc. 1 - 6, 7A, 8A, 9, 10B, 11, 12E, 14, 15A, 16K

1шт.

87439096

DRUM Assembly, Service #1, 5 Row Narrow, High Yield; Inc. 1B, 2, 3, 4A, 5, 6, 7A, 8B,9A, 10A, 11, 12, 14 - 16

1шт.

87439097

DRUM Assembly, Service #2, 5 Row Narrow, High Yield; Inc. 1C, 2, 3, 6A, 7B, 9, 11C, 12G, 14, 15A, 16G, 17

1шт.

87439098

DRUM Assembly, Service #3, 5 Row Narrow, High Yield; Inc. 1B, 2A, 3A, 4A, 5, 6B, 7B, 10, 11D, 12F, 13B, 14A, 15C, 16H

1шт.

87439099

DRUM Assembly, Service #4, 5 Row Narrow, High Yield; Inc. 1B, 2, 3, 4A, 5, 8B, 10A, 12C, 14, 15A, 16J, 17

1шт.

87439100

DRUM Assembly, Service #5, 5 Row Narrow, High Yield; Inc. 1B, 2 - 6, 7A, 8A, 9, 10B, 11, 12E, 14, 15A, 16K

1шт.

378518A2

DRUM

Assembly, Service, Drum #1, 5 Row Wide; Inc. 1 - 5, 7A, 8B, 9A, 10B, 11, 12, 14 - 16

1шт.

378519A2

DRUM

Assembly, Service, Drum #2, 5 Row Wide; Inc. 1A, 2, 3, 6A, 7B, 9, 11C, 14, 15A, 16L, 17

1шт.

378520A2

DRUM

Assembly, Service, Drum #3, 5 Row Wide; Inc.1, 2B, 3B, 4A, 5, 6B, 7B, 10, 11D, 12F, 13B, 14A, 15C, 16M

1шт.

378521A2

DRUM

Assembly, Service, Drum #4, 5 Row Wide; Inc. 1 - 5, 8B, 10B, 12C, 14, 15A, 16N, 17

1шт.

1

431233A2

DRUM

Basic Service, With Covers and Harness

1шт.

1a

431234A2

DRUM

Basic Service, With Covers and Harness

1шт.

1b

431235A2

DRUM

Basic Service, High Yield, With Covers and Harness

1шт.

1c

431236A2

DRUM

Basic Service, High Yield, With Covers and Harness

1шт.

2

431238A1

PACKAGE

Rotor Doors, See Figure 09A-39A

1шт.

2a

431783A1

PACKAGE

Rotor Doors, See Figure 09A-39A

1шт.

2b

432014A1

PACKAGE

Rotor Doors, See Figure 09A-39A

1шт.

3

431239A1

PACKAGE

Doffer Supports, See Figure 09A-31A

1шт.

3a

431787A1

PACKAGE

Doffer Supports, See Figure 09A-40A

1шт.

3b

432015A1

PACKAGE

Doffer Supports, See Figure(s) 09A-39A, 09A-40A

1шт.

4

431242A1

PACKAGE

Front Outlets, See Figure 09C-02

1шт.

4a

431725A1

PACKAGE

Front Outlets, See Figure 09C-01

1шт.

5

431245A1

PACKAGE

Front Nozzles, See Figure 09C-02

1шт.

6

431470A1

PACKAGE

Rear Outlets, See Figure 09C-06

1шт.

6a

431759A1

PACKAGE

Rear Outlets, See Figure 09C-05

1шт.

6b

431791A1

PACKAGE

Rear Outlets, See Figure 09C-05

1шт.

7

431491A1

PACKAGE

Rear Nozzles, See Figure 09C-06

1шт.

7a

431473A1

PACKAGE

Rear Nozzles, See Figure 09C-06

1шт.

7b

431767A1

AIR DUCT

Rear Nozzles, See Figure 09C-05

1шт.

8

431725A1

PACKAGE

Front Transition, See Figure 09C-01

1шт.

8a

431474A1

PACKAGE

Front Transition, See Figure 09C-01

1шт.

8b

431244A1

PACKAGE

Front Transition, See Figure 09C-01

1шт.

9

431475A1

PACKAGE

Rear Transition, See Figure 09C-05

1шт.

9a

431472A1

PACKAGE

Rear Transition, See Figure 09C-06

1шт.

10

431797A1

PACKAGE

Front Extension, See Figure 09C-01

1шт.

10a

431728A1

PACKAGE

Front Extension, See Figure 09C-01

1шт.

10b

431243A1

PACKAGE

Front Extension, See Figure 09C-02

1шт.

10c

431480A1

PACKAGE

Front Extension, See Figure 09C-02

1шт.

10d

431496A1

PACKAGE

Front Extension, See Figure 09C-02

1шт.

11

431471A1

PACKAGE

Rear Extension, See Figure 09C-06

1шт.

11a

431481A1

PACKAGE

Rear Extension, See Figure 09C-06

1шт.

11b

431497A1

PACKAGE

Rear Extension, See Figure 09C-06

1шт.

11c

431760A1

PACKAGE

Rear Extension, See Figure 09C-05

1шт.

11d

431798A1

PACKAGE

Rear Extension, See Figure 09C-05

1шт.

12

431240A1

PACKAGE

Gearbox, See Figure 09A-08

1шт.

12a

431634A1

PACKAGE

Gearbox, See Figure 09A-09

1шт.

12b

431278A1

PACKAGE

Gearbox, See Figure 09A-10

1шт.

12c

431636A1

PACKAGE

Gearbox, See Figure 09A-11

1шт.

12d

431279A1

PACKAGE

Gearbox, See Figure 09A-12

1шт.

12e

431280A1

PACKAGE

Gearbox, See Figure 09A-14

1шт.

12f

431789A1

PACKAGE

Gearbox, See Figure 09A-13

1шт.

12g

431758A1

PACKAGE

Gearbox, See Figure 09A-07

1шт.

13

433188A1

PACKAGE

Gearbox Completing, See Figure 09A-10

1шт.

13a

433186A1

PACKAGE

Gearbox Completing, See Figure 09A-08

1шт.

13b

433189A1

PACKAGE

Gearbox Completing, See Figure 09A-09

1шт.

14

414357A1

PACKAGE

Plant Lifter with Automatic Height Control, See Figure(s) 09A-26, 09A-27, 09A-30

1шт.

14a

414358A1

PACKAGE

Plant Lifter without Automatic Height Control, See Figure(s) 09A-25, 09A-26

1шт.

15

448177A1

PACKAGE

Automatic Height Control Completing with Ladder Latch, See Figure(s) 09A-25; 09A-31A

1шт.

15a

431241A1

PACKAGE

Automatic Height Control Completing without Ladder Latch, See Figure(s) 09A-30, 09A-39A

1шт.

15c

431281A1

PACKAGE

Automatic Height Control Fillers, See Figure 09A-39A

1шт.

16

431246A1

PACKAGE

Completing Parts, See Figure 09A-40A

1шт.

16a

431492A1

PACKAGE

Completing Parts

1шт.

16b

431878A1

PACKAGE

Completing Parts

1шт.

16c

431476A1

PACKAGE

Completing Parts

1шт.

16d

431879A1

PACKAGE

Completing Parts

1шт.

16e

431880A1

PACKAGE

Completing Parts

1шт.

16f

431519A1

PACKAGE

Completing Parts

1шт.

16g

431769A1

PACKAGE

Completing Parts

1шт.

16h

431799A1

PACKAGE

Completing Parts

1шт.

16j

431831A1

PACKAGE

Completing Parts

1шт.

16k

431833A1

PACKAGE

Completing Parts

1шт.

16l

431930A1

PACKAGE

Completing Parts

1шт.

16m

431932A1

PACKAGE

Completing Parts

1шт.

16n

431831A1

PACKAGE

Completing Parts

1шт.

17

433187A1

PACKAGE

Tread Assy

1шт.
