(09B-01) - WATER TANK

Запчасти Case IH 2555 (09B-01) - WATER TANK (14) - WATER SYSTEM

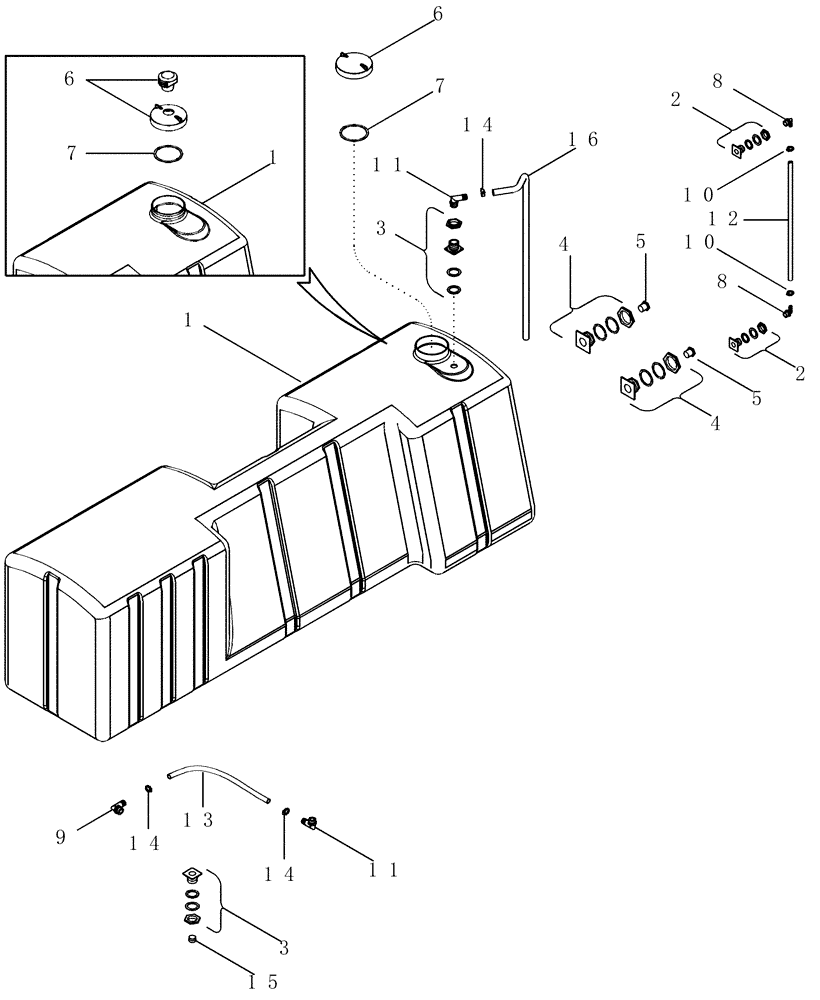

Схема запчастей Case IH 2555 - (09B-01) - WATER TANK (14) - WATER SYSTEM
14
12
15
4
4
8
5
6
1
6
7
11
10
5
3
1
11
10
14
13
8
7
14
9
2
3
2
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

414028A1

PACKAGE

Water Tank Service, Inc. 1, 8 - 14, Serial Range: -JJC0249799

1шт.

414028A2

PACKAGE

Water Tank Service, Inc. 1 - 14, 16, Start Serial: JJC0249800

1шт.

1

398293A1

TANK

Water, 1362.6 l (360 gal), Inc. 2 - 7, Serial Range: -JJC0249799

1шт.

1

398293A2

TANK

Water, 1362.6 l (360 gal), Inc. 2 - 7, Start Serial: JJC0249800

1шт.

2

1345186C1

FITTING

3/4 PT, Nylon, 4 Piece

1-2шт.

3

398292A1

FITTING

1 PT, Plastic, 4 Piece

2шт.

4

1254377C1

FITTING

1-1/4 PT, Nylon, 4 Piece, Special

2шт.

5

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

1-1/4 PT, Nylon, Special

2шт.

6

404811A1

CAP

Inc. 7, Serial Range: -JJC0249799

1шт.

6

1345185C1

CAP

Inc. 7, Start Serial: JJC0249800

1шт.

7

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

1шт.

8

1329210C1

ELBOW

1/2 stem x 3/4 PT

2шт.

9

134271C2

ELBOW,ELBOW, 90

1 stem x 3/4 PT

1шт.

10

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1/2 - 29/32

2шт.

11

405229A1

ELBOW

1 PT x 1 barb, Serial Range: -JJC0249799

1шт.

11

405229A1

ELBOW

1 PT x 1 barb, Start Serial: JJC0249800

2шт.

12

1545978C3

HOSE

Sight Gauge, 686 mm (27 in), Cut From 665181R1

1шт.

13

398291A2

HOSE,25.40 mm ID x 2286.00 mm

Drain, Cut From 414027A1

1шт.

14

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

, Serial Range: -JJC0249799

2шт.

14

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

, Start Serial: JJC0249800

3шт.

15

86625135

PLUG,1" - 11-1/2 NPT

If Equipped

1шт.

16

87414203

HOSE,25.40mm ID x 1219mm L

1219 mm (48 in), Overflow, Cut From 414027A1, Start Serial: JJC0249800

1шт.
