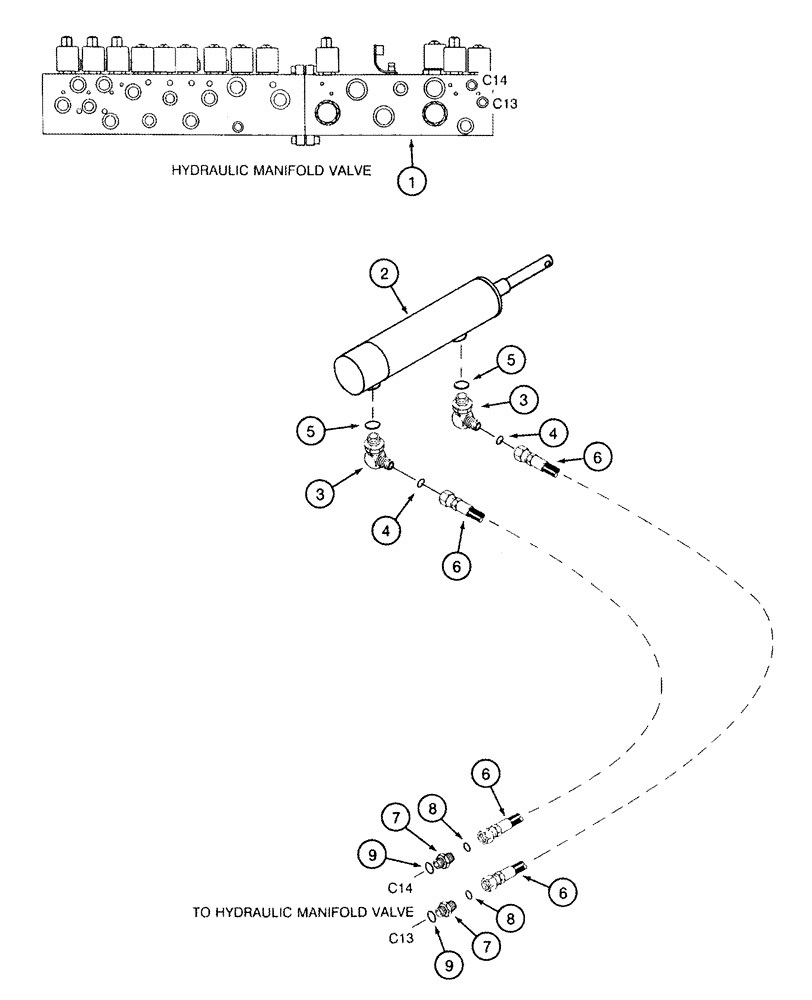

Запчасти Case IH 2555 (08-29) - FAN ENGAGEMENT CYLINDER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Manifold, See Page(s) 8-49 - 8-71

1шт.

2

133405C92

CYLINDER

Fan clutch, See Page(s) 8-83

1шт.

2

87337239R

REMAN-HYD CYLINDER

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), Fan clutch, BSN JJC0249499, Reman for New PN 133405C92

1шт.

2

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

3

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Includes Ref. 4, 5

2шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

1990117C1

HOSE

Fan Clutch Cylinder Engage and Disengage

2шт.

7

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Includes 8, 9

2шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
