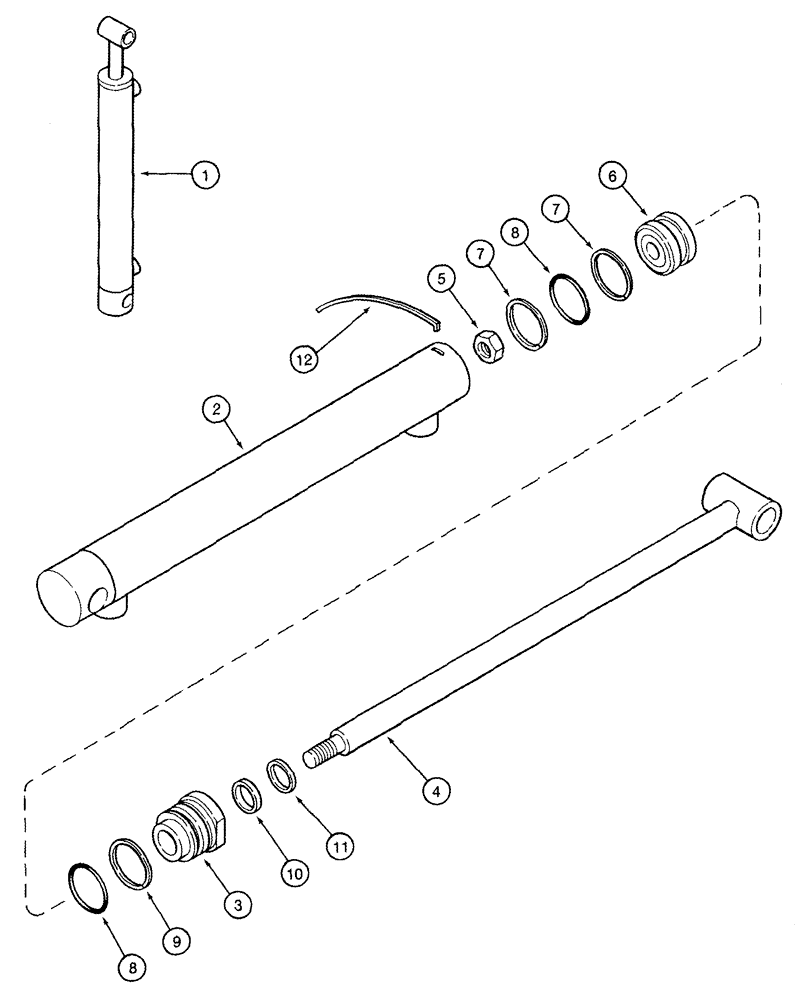

Запчасти Case IH 2555 (08-42) - BASKET DOOR CYLINDER (07) - HYDRAULICS

1

1282155C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 373.5mm Stroke

Basket Door, Includes 2 - 12

2шт.

2

NSS

NOT SOLD SEPARAT

Tube

1шт.

3

108641C1

GLAND

1шт.

4

1282222C1

PISTON ROD

1шт.

5

232-41110

NUT,5/8"-11, GC

1шт.

6

108640C2

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

2шт.

8

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

Ring

1шт.

10

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

1шт.

11

532773R1

WIPER SEAL

1шт.

12

NSS

NOT SOLD SEPARAT

Ring

1шт.

63884C92

SEAL KIT

Includes 7 - 12, No Longer Available, Order Components

1шт.
