(02-12) - TURBOCHARGER ASSY

Запчасти Case IH 2555 (02-12) - TURBOCHARGER ASSY (01) - ENGINE

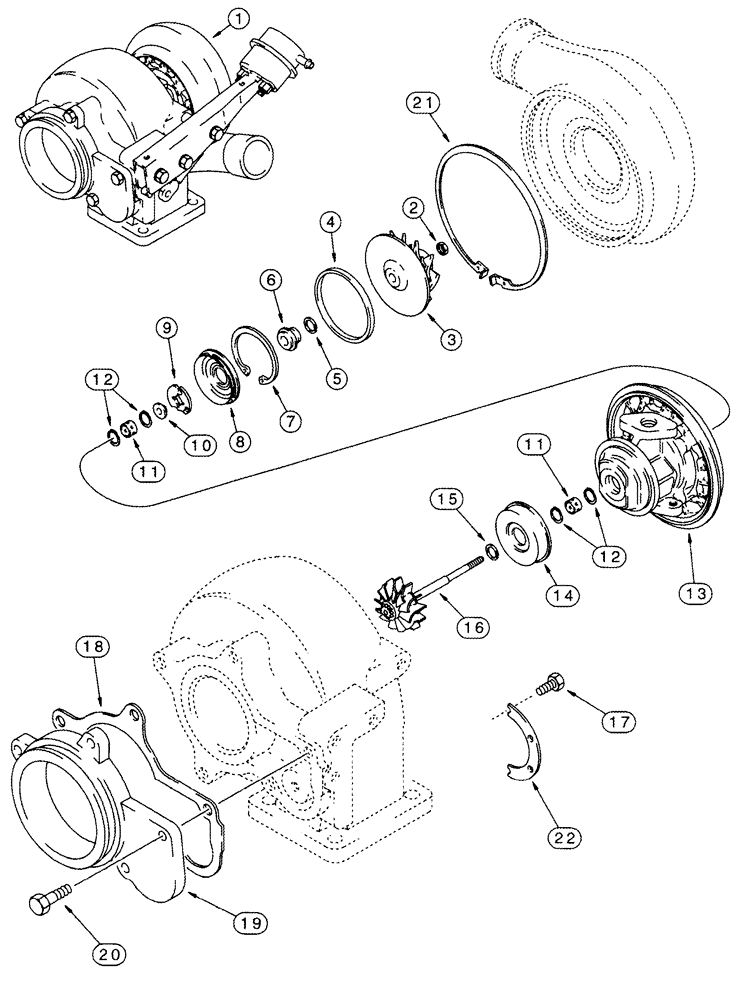

Схема запчастей Case IH 2555 - (02-12) - TURBOCHARGER ASSY (01) - ENGINE
14
21
22
18
4
3
19
6
13
17
15
20
12
11
7
10
2
8
5
16
11
9
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

6TA-830 Emissions Certified Engine

1шт.

1

J802649

TURBOCHARGER

Consists Of 2 - 22, Also Includes 1 - 12, See Page(s) 2-27, Includes J519807, J937706

1шт.

1

JR802649

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC535617

CORE-TURBOCHARGER

Return Part Number

1шт.

J535324

CARTRIDGE

Consists Of 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Journal

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Thrust

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Consists Of 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
