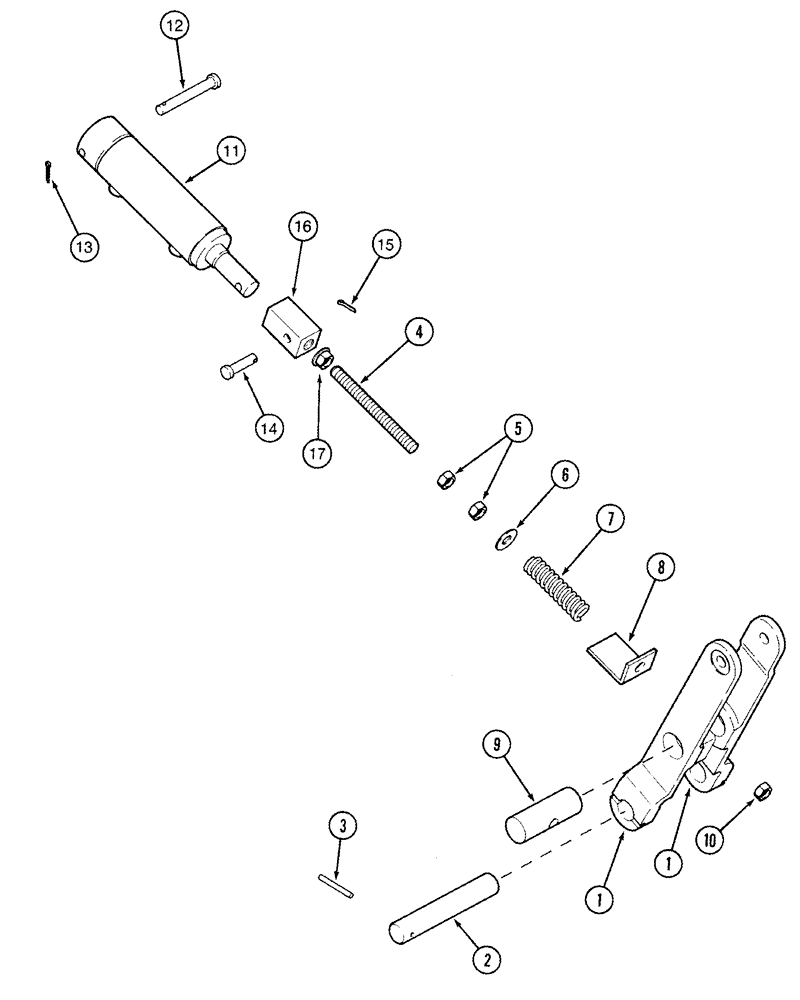

Запчасти Case IH 2555 (09C-14) - REAR FAN PULLEY LINKAGE (15) - HANDLING SYSTEM

1

1990156C1

ARM

Idler Pulley

1шт.

2

1990151C1

SHAFT,25.4mm OD x 135mm L

Idler Pivot

1шт.

3

438-11232

LOCK PIN,3/16" x 2", Slotted

3/16" x 2", Slotted

1шт.

4

138183A1

ROD,THREADED

THREADED ROD Idler

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

2шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

7

1990062C1

SPRING

Idler

1шт.

8

1990058C1

ANGLE

1шт.

9

1990152C1

PIN,31.75mm OD x 90mm L

Pivot

1шт.

10

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

11

133405C92

CYLINDER

51 ID x 63 mm strk, Fan clutch, See Page(s) 8-83

1шт.

11

87337239R

REMAN-HYD CYLINDER

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), 51 ID x 63 mm strk., Fan clutch, BSN JJC0249499, Reman for New PN 133405C92

1шт.

11

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

12

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

3/8 x 3-1/4; 2

1шт.

13

432-816

COTTER PIN,1/8" x 1"

1шт.

14

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

1шт.

15

432-616

COTTER PIN,3/32" x 1"

1шт.

16

138184A1

BLOCK

Idler

1шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.
