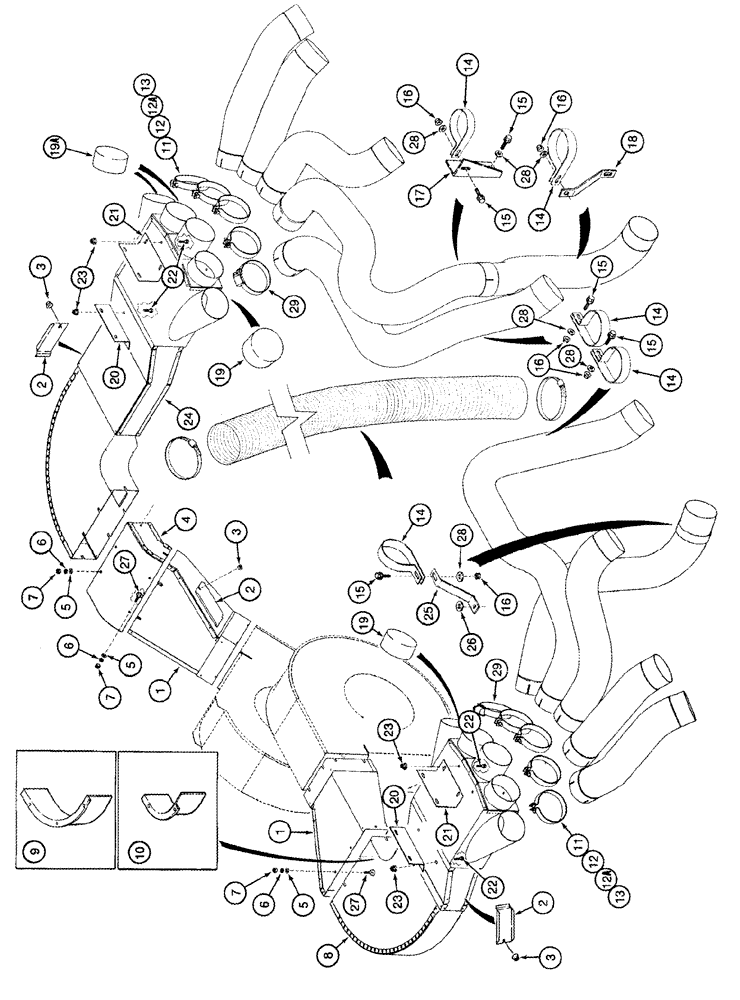

Запчасти Case IH 2555 (09C-18) - AIR DUCTS AND HOSES (15) - HANDLING SYSTEM

All Models

1шт.

1

1270084C1

DUCT

Left Hand, Right Hand

2шт.

2

1270220C1

COVER

Access Hole

3шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

4

1270166C1

DUCT

1шт.

5

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

34шт.

6

492-11031

LOCK WASHER,5/16"

34шт.

7

425-105

NUT,5/16"-18, G5

34шт.

8

1988729C3

VENT

Includes 9, 10, Air Plenum, Right Hand, With Access Hole

1шт.

9

139713A1

DEFLECTOR

Right Hand, Outer

1шт.

10

139712A1

DEFLECTOR

Right Hand, Inside

1шт.

11

650988C1

CLAMP,130mm

Air Supply Duct

9шт.

12

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

9шт.

12a

495-21044

WASHER,3/8"

20шт.

13

131-822

NUT,3/8"-16

9шт.

14

1546033C1

CLAMP,127mm ID, 10.3mm Bolt Hole, P Type

2-4шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

16

231-1446

NUT,3/8" - 16, Gr 5

2шт.

17

112449A1

SUPPORT

Air Supply Duct, No. 2 Drum, Front, 4 Row

1шт.

Note: See pages 9C-69 - 9C-73, 4 Row Wide and 9C-79 - 9C-81, 5 Row Narrow, and 9C-75 and 9C-77, 5 Row Wide, for remaining air ducts and hoses.

1шт.

Nota: Ver las páginas 9C-69 - 9C-73, 4 hileras anchas y 9C-79 - 9C-81, 5 hileras estrechas y 9C-75 y 9C-77, 5 hileras anchas, para los restantes conductos de aire y mangueras.

1шт.

Nota: Veja as páginas 9C-69 - 9C-73, unidade larga de 4 fileiras e 9C-79 - 9C-81, unidade estreita de 5 fileiras, e as 9C-75 e 9C-77, unidades largas de 5 fileiras, para informações sobre as mangueiras e ductos de ar restantes.

1шт.

All Models

1шт.

18

132150A1

SUPPORT

Air Supply Duct, No. 2 Drum, Front, 5 Row

1шт.

19

175231A1

CAP

Plenum Tube, 4 Row Wide, If Used

2шт.

19a

175231A1

CAP

Plenum Tube, 5 Row Narrow, If Used

2шт.

20

1990442C1

ANGLE

Duct Support, Rear

2шт.

21

1988854C2

ANGLE

Duct Support

2шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

24

1988738C3

VENT

Air Plenum, Left Hand, With Access Hole

1шт.

25

132150A1

SUPPORT

1шт.

26

495-11066

WASHER,5/8", SAE

1шт.

27

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

12шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

29

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

If Used

2шт.

Note: See pages 9C-69 - 9C-73, 4 Row Wide and 9C-79 - 9C-81, 5 Row Narrow, and 9C-75 and 9C-77, 5 Row Wide, for remaining air ducts and hoses.

1шт.

Nota: Ver las páginas 9C-69 - 9C-73, 4 hileras anchas y 9C-79 - 9C-81, 5 hileras estrechas y 9C-75 y 9C-77, 5 hileras anchas, para los restantes conductos de aire y mangueras.

1шт.

Nota: Veja as páginas 9C-69 - 9C-73, unidade larga de 4 fileiras e 9C-79 - 9C-81, unidade estreita de 5 fileiras, e as 9C-75 e 9C-77, unidades largas de 5 fileiras, para informações sobre as mangueiras e ductos de ar restantes.

1шт.
