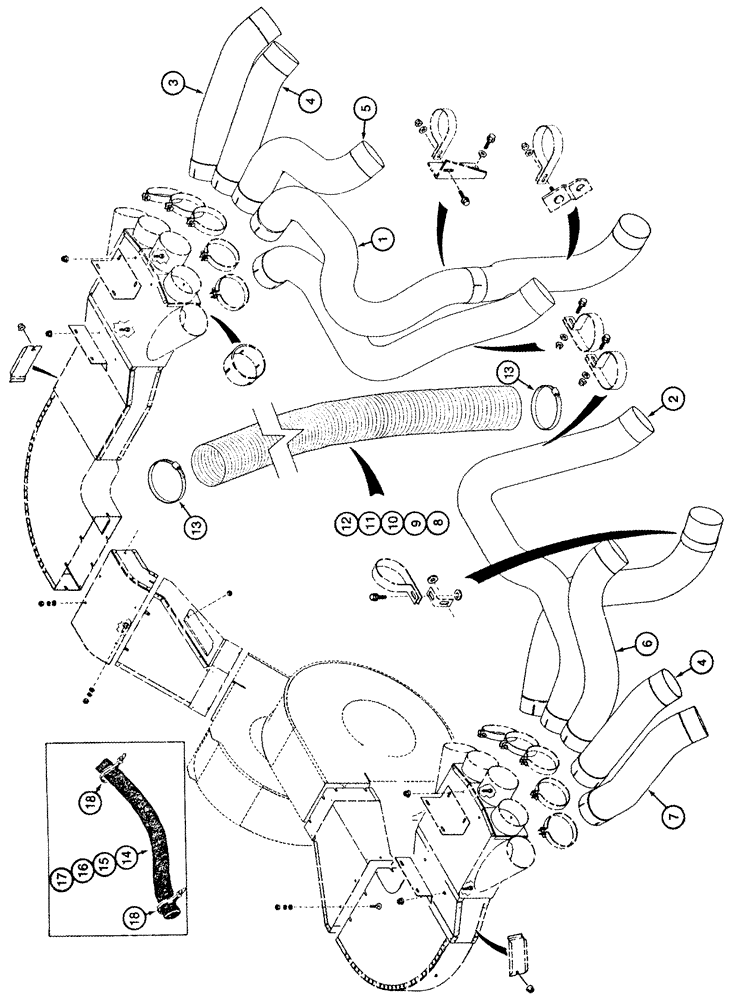

Запчасти Case IH 2555 (09C-20) - AIR DUCTS AND HOSES JJC0157150- (15) - HANDLING SYSTEM

4 Row Wide

1шт.

1

1988742C1

TUBE

No. 2 Front, Upper

1шт.

2

1988747C1

TUBE

No. 3 Rear

1шт.

3

1988871C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 1 Rear

1шт.

4

1988872C1

TUBE

No. 1 Front, No. 4 Rear

2шт.

5

1988873C1

TUBE

No. 2 Rear

1шт.

6

1988874C1

TUBE

No. 3 Front

1шт.

7

1988876C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 4 Front

1шт.

8

1984190C1

AIR HOSE

No. 1 Front, 1651 mm (65 in), Cut From 1349877CX

1шт.

9

1984191C1

AIR HOSE

No. 4 Rear, No. 3, No. 4 Front, 1473 mm (58 in), Cut From 1349877CX

3шт.

10

284528A1

HOSE,1320.80 mm

No. 1 Rear, No. 2 Rear, Cut from 1349877CX

2шт.

11

1338078C3

AIR HOSE,127.00 mm ID x 889.00 mm

No. 3 Rear, Cut From 1349877CX

1шт.

12

112424A2

AIR HOSE,127.00 mm ID x 1371.60 mm

No. 2 Front, Cut from 1349877CX

1шт.

4 Row Wide

1шт.

14

284896A1

HOSE PROTECTION

1067 mm (42 in), No. 2, No. 4 Rear, No. 2 Front

3шт.

15

284897A1

HOSE PROTECTION

1219 mm (48 in), No. 1, No. 4 Front, No. 1 Rear

3шт.

16

254023A2

HOSE PROTECTION

No. 3 Rear

1шт.

17

298854A1

HOSE PROTECTION

1321 mm (52 in), No. 3 Front

1шт.
