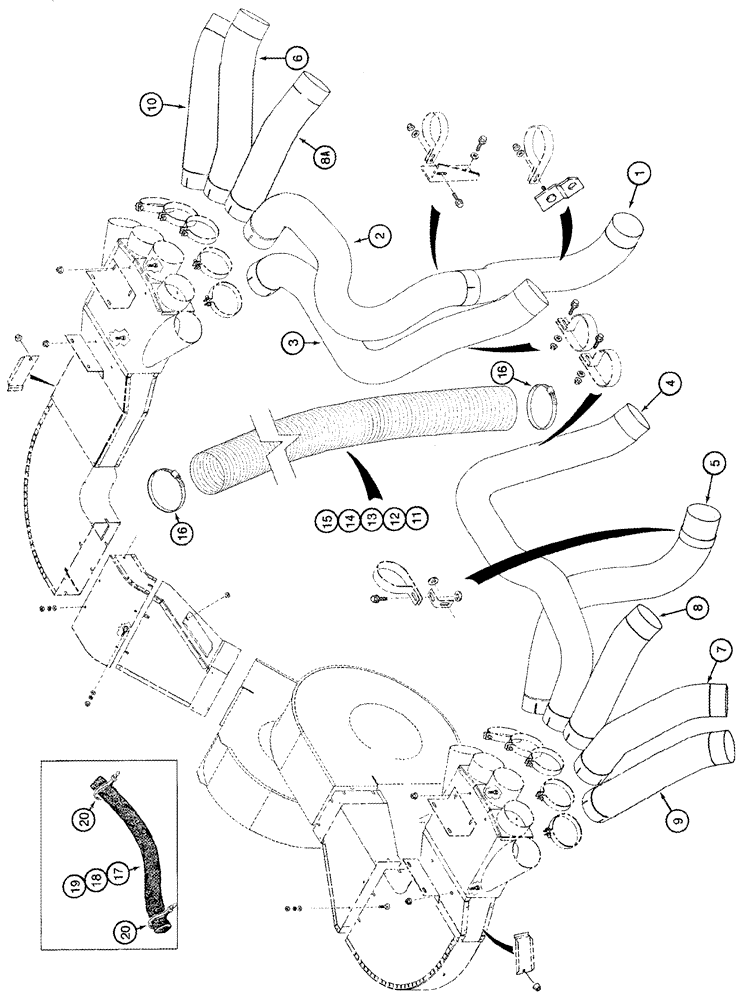

Запчасти Case IH 2555 (09C-21) - AIR DUCTS AND HOSES (15) - HANDLING SYSTEM

5 Row Wide

1шт.

1

1988744C2

TUBE,124.6 mm OD

No. 2, Lower, Front

1шт.

2

1988742C1

TUBE

No. 2, Upper, Front

1шт.

3

1988746C1

PIPE

No. 3, Rear

1шт.

4

1988747C1

TUBE

No. 3, Front

1шт.

5

1988749C1

PIPE

No. 4, Rear

1шт.

6

1988876C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 1, Front

1шт.

7

1988871C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 5, Rear

1шт.

8

140143A1

PIPE

No. 2, Rear

1шт.

8a

140143A1

PIPE

No. 4, Front

1шт.

9

1988872C1

TUBE

No. 1, Rear

1шт.

10

1988872C1

TUBE

No. 5, Front

1шт.

Note: See pages 9C-65 and 9C-67 for air duct and hose parts that are common to all models.

1шт.

Nota: véase las páginas 9C-65 y 9C-67 para mayor información acerca de ductos de aire y piezas de manguera que sean comunes a todos los modelos.

1шт.

Nota: Veja as páginas 9C-65 e 9C-67 para informações sobre peças de ductos de ar e mangueiras comuns a todos os modelos.

1шт.

5 Row Wide

1шт.

11

1266304C3

HOSE,127.00 mm ID x 685.80 mm

No. 2 Front, Cut From 1349877CX

1шт.

12

1338078C3

AIR HOSE,127.00 mm ID x 889.00 mm

No. 4 Rear, Cut From 1349877CX

1шт.

13

1984190C1

AIR HOSE

No. 1 Front, 1651 mm (65 in), Cut From 1349877CX

1шт.

14

1984191C1

AIR HOSE

No. 1, No. 2, No. 5 Rear, No. 4, No. 5 Front, 1473 mm (58 in), Cut From 1349877CX

5шт.

15

1984192C1

AIR HOSE

No. 3 Front and Rear, Cut From 1349877CX

2шт.

16

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

20шт.

17

284896A1

HOSE PROTECTION

1067 mm (42 in), No. 1, No. 5 Rear, No. 1, No. 3, No. 4, No. 5 Front

6шт.

18

284895A1

HOSE PROTECTION

661 mm (26 in), No. 2 Front, No. 3, No. 4 Rear

3шт.

19

284897A1

HOSE PROTECTION

1219 mm (48 in), No. 2 Rear

1шт.
