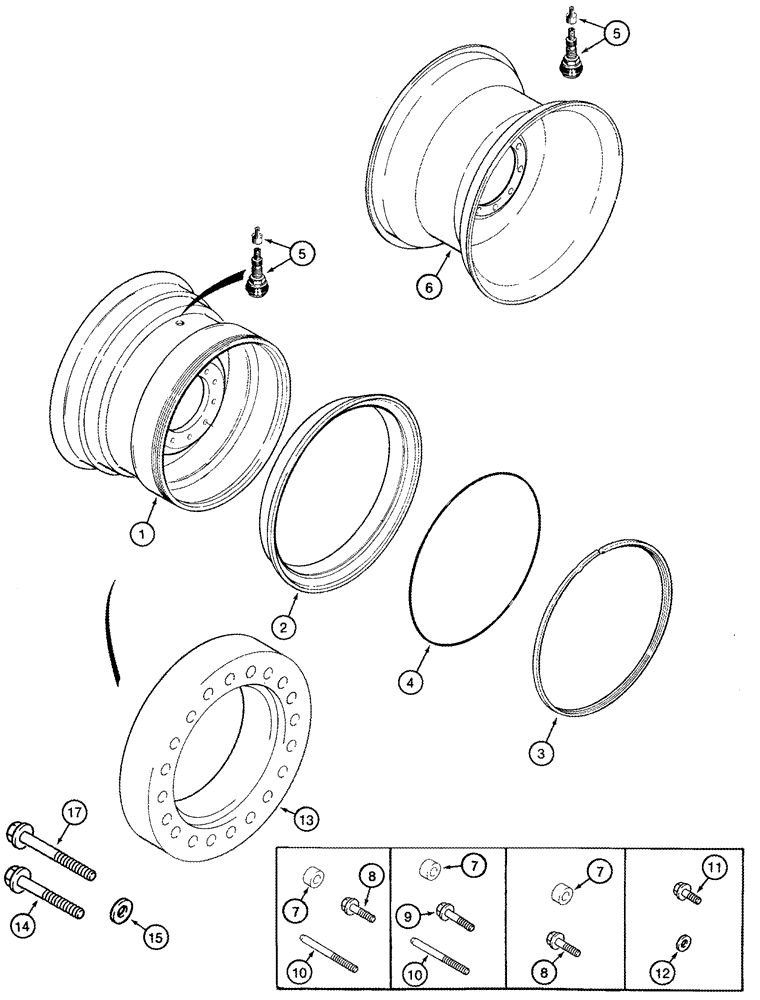

Запчасти Case IH 2555 (06-22) - WHEELS, DRIVE SPACERS (03) - POWER TRAIN

359179A2

WHEEL ASSY.

330 x 813 mm (13 x 32 in), Consists Of 1 - 4, Includes Decals 300951A1

2шт.

359180A2

WHEEL ASSY.

330 x 813 mm (13 x 32 in), Dual Ready, Consists Of 1 - 4, Includes Decals 300951A1

2шт.

1

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

2

184471C1

WHEEL

1шт.

3

184472C1

RING

1шт.

4

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

1шт.

5

179482C1

VALVE STEM

7/16 in dia, 7/16 Inch Diameter, Includes Cap, For 5/8 Inch Hole

2шт.

6

124092A2

WHEEL ASSY.

622 x 813 mm (24-1/2 x 32, One Piece, 16 PR Tire, Single Drive, 4 Row Wide

2шт.

6

191139A2

WHEEL ASSY

622 x 813 mm (24-1/2 x 32, One Piece, 16 PR Tire, Dual Ready Wheels, 4 Row Wide

2шт.

6

129948A1

WHEEL

One Piece, 20.8-38 14 PR Tire, Outer Dual, 5 Row Wide, Includes Decals 135786A2

2шт.

6

359306A1

WHEEL ASSY.

32 x 27 in, One Piece

2шт.

7

130871A2

SPACER

Used With 111977A3, 135898A1, 124092A1, See Page(s) 6-57, If Used

30шт.

8

130965A1

FLANGE BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

M20 x 70; 10.9, Used With 111977A3, 124092A1, See Page(s) 6-57

30шт.

9

130934A1

FLANGE BOLT,Hex, M20 x 1.5 x 90mm, Cl 10.9

M20 x 90; 10.9, Used With 135898A1, See Page(s) 6-57

30шт.

10

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter, Used With 111977A3, 135898A1, 124092A1, See Page(s) 6-57

2шт.

11

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

M20 x 45; 10.9, Used With 129948A1

10шт.

12

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm, Used With 129948A1, See Page(s) 6-57

10шт.

13

135171A2

SPACER

76 mm, 40 Inch Rows, 5 Row Wide

2шт.

14

514-1225

BOLT,Hex, M20 x 1.5 x 140mm, Cl 10.9

M20 x 140; 10.9, 40 Inch Rows, 5 Row Wide

40шт.

15

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm, 40 Inch Rows, 5 Row Wide

40шт.

16

140712A1

SPACER

127mm (5 in), Not Illustrated

2шт.

17

514-1226

BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9

M20 x 190; 10.9

40шт.
