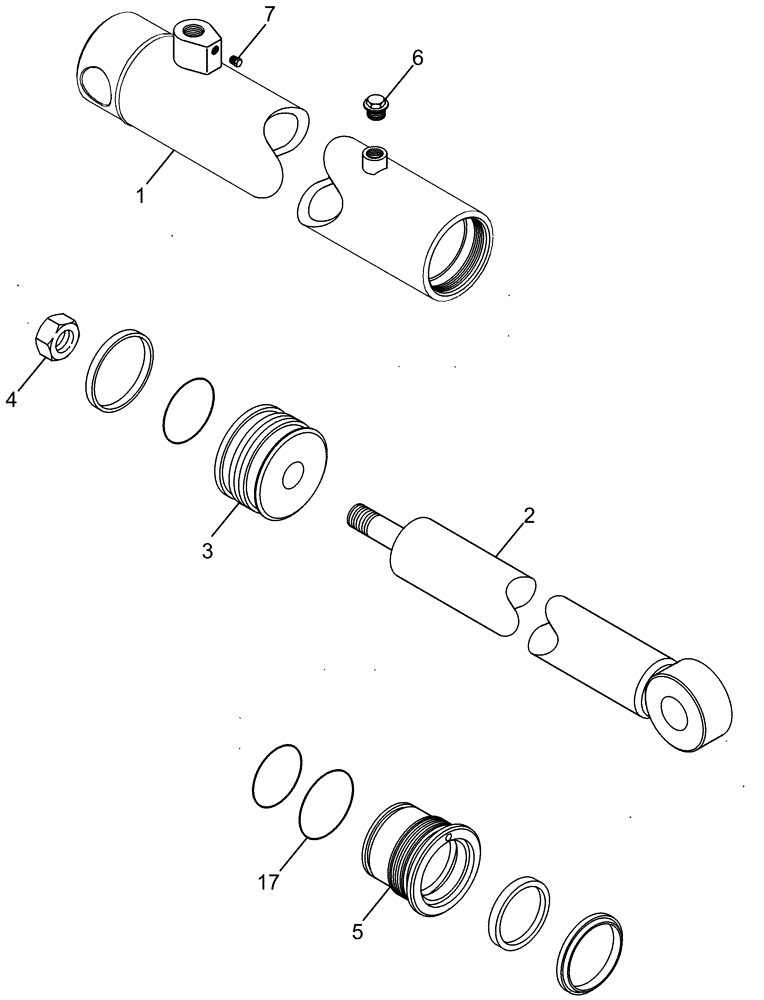

Запчасти Case IH 420 (08-36) - BASKET DOOR CYLINDER (07) - HYDRAULICS

87272674

CYLINDER,Double Acting, 38.1mm Rod, 892.1mm Stroke

Basket Door, Inc. 1 - 21

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

87385489

ROD

Assy

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

NUT, Lock

1шт.

5

NSS

NOT SOLD SEPARAT

HEAD

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG

2шт.

7

87413032

FITTING

Bleeder

2шт.

8

NSS

NOT SOLD SEPARAT

RING, Wear

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, Piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER, Back-Up

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

RING, Wear

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, Rod, Unloaded

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER, Canned

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

87384990

SEAL KIT

Kit

1шт.
