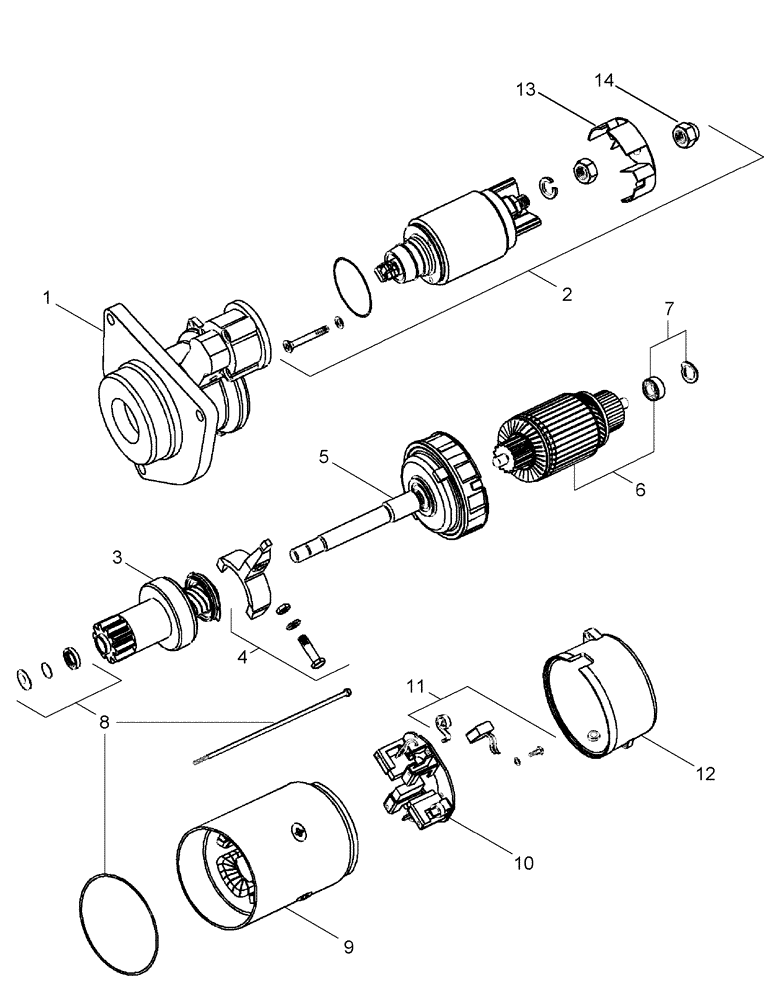

Запчасти Case IH 420 TIER 3 (04-18) - STARTER ASSY - ISKRA (06) - ELECTRICAL SYSTEMS

87419387

STARTING MOTOR

Iskra, Inc. 1 - 12

1шт.

84146320R

REMAN-STARTER,12V, 4.2kW

420 TIER 3 (3/08-), Reman for New P/N 87419387

1шт.

84146320C

CORE-STARTER,12V, 4.2kW

Return Number

1шт.

1

87452304

BRACKET

Drive End

1шт.

2

87452305

SOLENOID

1шт.

3

87452306

DRIVE ASSY.

1шт.

4

87452307

LEVER

Engaging

1шт.

5

87452308

GEAR

Reduction

1шт.

6

87452309

ARMATURE

1шт.

7

87452310

KIT

1шт.

8

87452311

KIT, STARTER MTR REP

SET Fixing Parts

1шт.

9

87452312

STATOR

1шт.

10

87452313

BRUSH HOLDER

1шт.

11

87452314

BRUSH, COMMUTATOR

BRUSH SET Spring

1шт.

12

87452315

COVER

Commutator End

1шт.

13

87422566

COVER

Protective

1шт.

14

87422567

NUT

1шт.
