(04-28) - REAR LICENSE PLATE AND HARNESS, CHINA ONLY

Запчасти Case IH 420 TIER 3 (04-28) - REAR LICENSE PLATE AND HARNESS, CHINA ONLY (06) - ELECTRICAL SYSTEMS

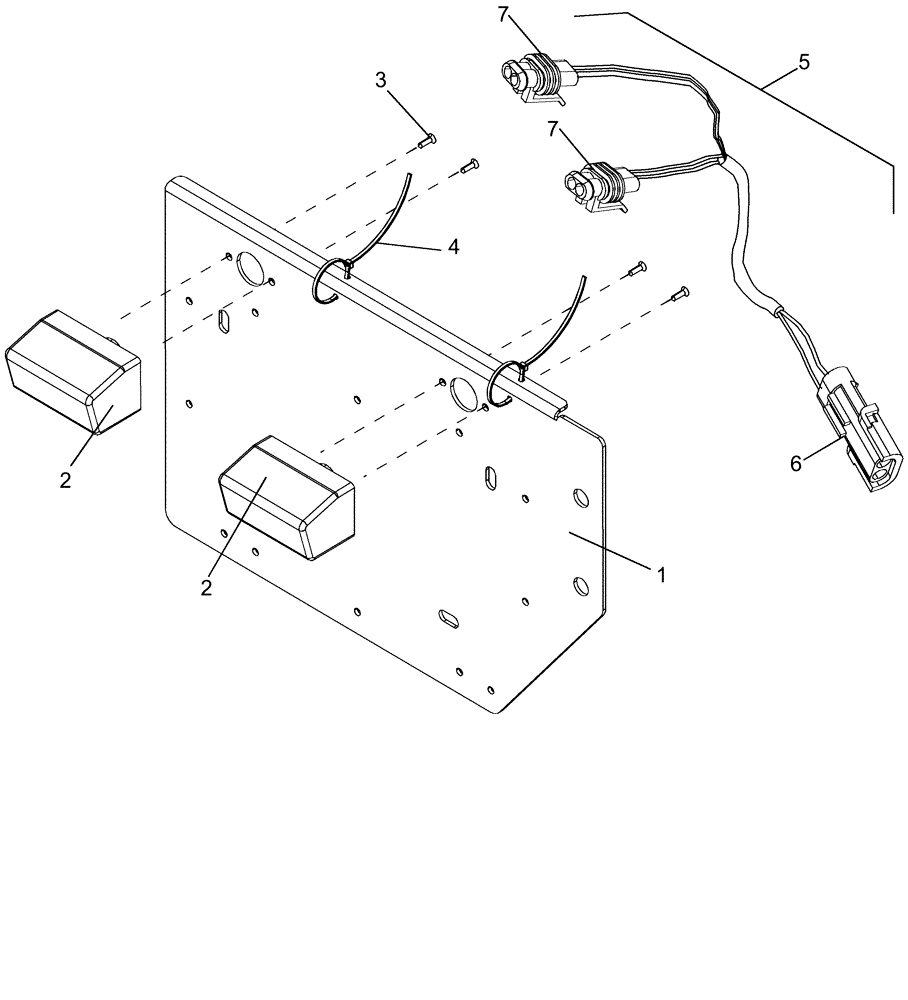

Схема запчастей Case IH 420 TIER 3 - (04-28) - REAR LICENSE PLATE AND HARNESS, CHINA ONLY (06) - ELECTRICAL SYSTEMS
5
4
2
7
6
2
7
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84129424

PLATE

License

1шт.

2

84067964

NUMBER PLATE LAMP

2шт.

3

9835804

SCREW,Oval HD, M3.5 x 1.3 x 13mm

4шт.

4

702093C1

CABLE TIE

CABLE STRAP

2шт.

5

84172274

WIRE HARNESS

License Plate Lamps

1шт.

6

245483C1

ELEC CONNECTOR,Male, 2 Pin

License Plate Harness

1шт.

7

371614A1

ELEC CONNECTOR,Female, 2 Pin

License Plate Harness

2шт.
