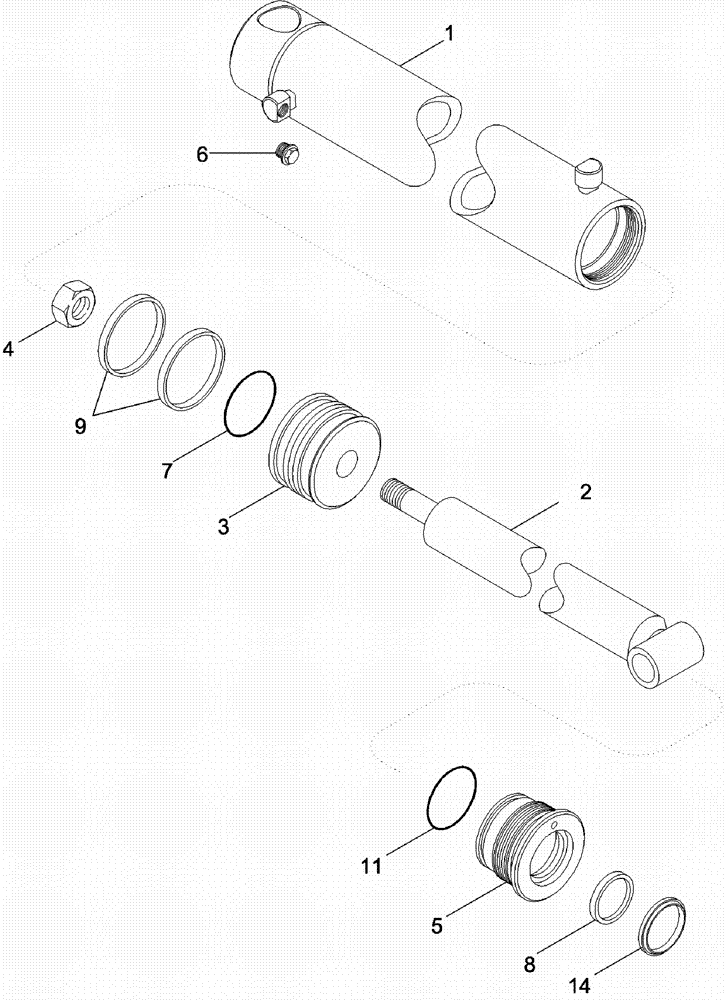

Запчасти Case IH 620 (08-31) - DRUM SPREAD CYLINDER ASSEMBLY (07) - HYDRAULICS

87272673

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 374.9mm Stroke

Drum Spread, Inc. 1 - 14

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

87385488

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

LOCKNUT

1шт.

5

NSS

NOT SOLD SEPARAT

HEAD

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG

3шт.

87384989

SEAL KIT

Kit, Inc. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON SEAL

1шт.

9

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

10

NSS

NOT SOLD SEPARAT

BACK-UP WASHER

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

13

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.
