(74.141.26) - HOOD, INLET - 6 ROW NARROW - 2007 AND PRIOR

Запчасти Case IH 625 (74.141.26) - HOOD, INLET - 6 ROW NARROW - 2007 AND PRIOR (74) - CLEANING

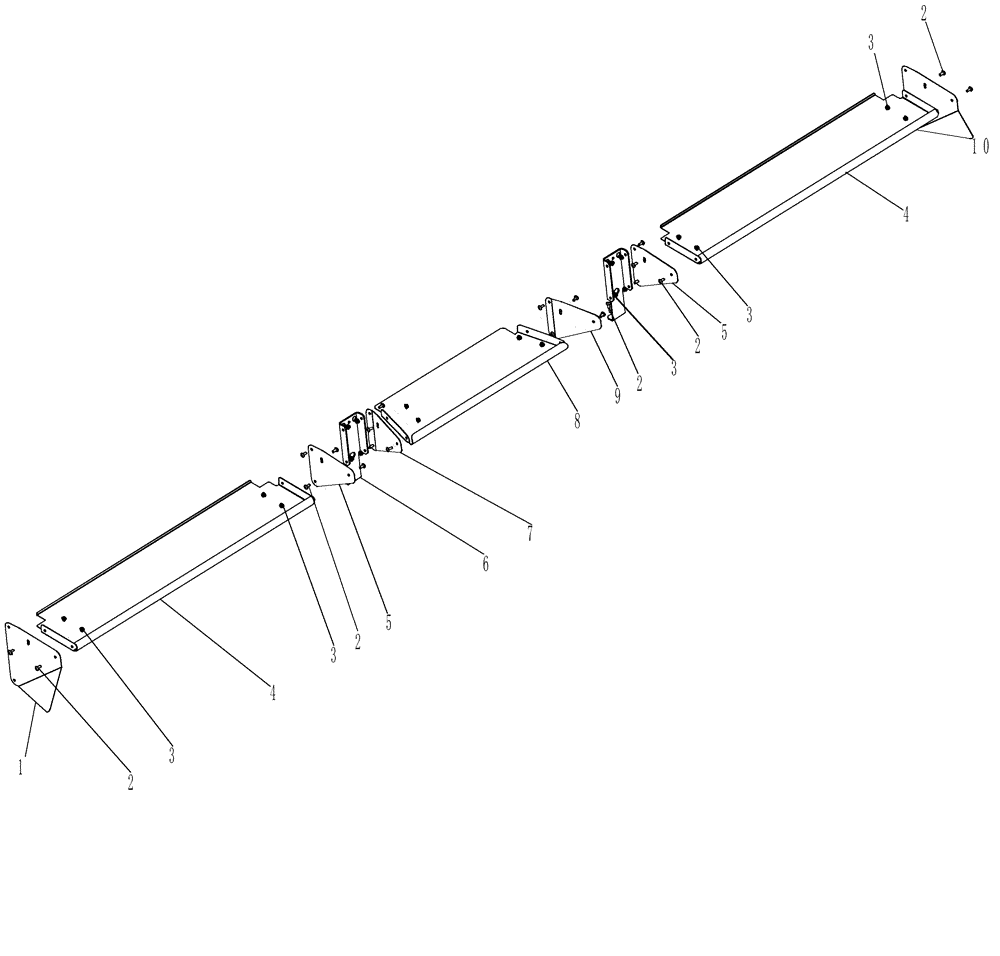

Схема запчастей Case IH 625 - (74.141.26) - HOOD, INLET - 6 ROW NARROW - 2007 AND PRIOR (74) - CLEANING
2
10
3
3
4
4
7
5
3
8
2
1
3
2
9
5
3
6
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87345320

SHEET METAL

Right Hand, Side

1шт.

2

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

24шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

4

87600878

DEFLECTOR

Top, Outer

2шт.

5

87709441

RUNNER

2шт.

6

87532515

CHANNEL

Inlet Hood Mount

2шт.

7

87722555

PLATE

Inlet Hood Side, Right Hand

1шт.

8

87722556

PLATE

Center Hood Inlet Cover

1шт.

9

87722554

PLATE

Inlet Hood Side, Left Hand

1шт.

10

87345319

SHEET METAL

Left Hand, Side

1шт.
