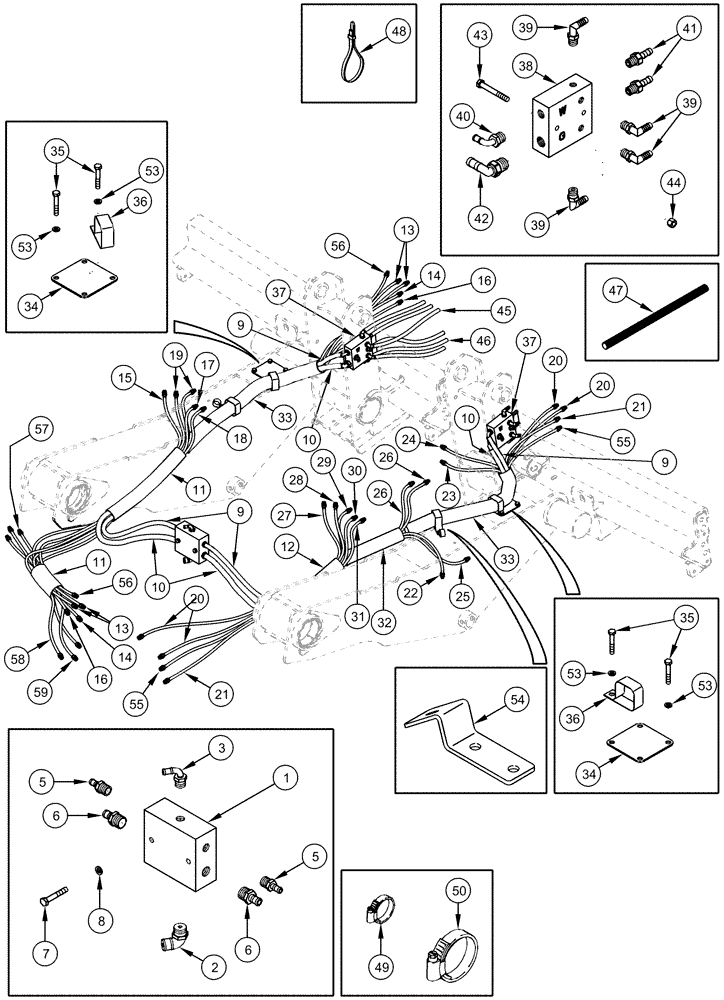

Запчасти Case IH 625 (88.460.01) - LUBRICATION AND WATER SYSTEMS - MANIFOLDS AND HOSE BUNDLES (88) - ACCESSORIES

1

426601A1

BLOCK

Manifold, Plastic

1шт.

2

426780A1

FITTING,1/2" Male Thread x 3/4" 90 Degree Hose Barb

1/2 Male x 3/4 hose shank

1шт.

3

426777A1

FITTING,3/8" Male Thread x 3/8" 90 Degree Hose Barb

3/8 Male x 3/8 barb

1шт.

4

1546018C1

ELBOW

1/4 PT x 3/8 stem

2шт.

5

426778A1

PIPE FITTING,3/8" Male Thread x 3/8" Hose Barb

3/8 Male x 3/8 hose shank

2шт.

6

426779A1

PIPE FITTING,1/2"Male Thread x 1/2"Hose Barb

1/2 Male x 1/2 hose shank

2шт.

7

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

8

495-31031

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

2шт.

NSS

NOT SOLD SEPARAT

HOSE BUNDLE, Left Hand, Inc. 9 (1), 10 (1), 11, 13 - 19, 33 (1)

1шт.

NSS

NOT SOLD SEPARAT

HOSE BUNDLE, Right Hand, Inc. 9 (1), 10 (1), 12, 20 - 32, 33 (1), 34

1шт.

9

87414875

HOSE,9.53 mm ID x 2540.00 mm

Water Line, 2540 mm (100"), Cut From 87417263

2шт.

10

426127A1

HOSE

Bar Lube Line, 2337 mm (92"), Cut From 426950A1

2шт.

11

87323276

SLEEVE,60.3mm ID x 1525mm L

Hose, Cordura, 840 mm (60")

2шт.

13

87323228

HOSE,3.17mm ID x 6757mm L, SAE 100R7

Drum Feed #2, 6757 mm (266"), Grease Filled

2шт.

14

87323238

HOSE,3.17mm ID x 7569mm L, SAE 100R7

Drum Feed #1, 7569 mm (298"), Grease Filled

1шт.

15

87323245

HOSE,3.17mm ID x 3150mm L, SAE 100R7

Lift Arm Pivot, Left Hand, 3150 mm (124"), Grease Filled

1шт.

16

87323271

HOSE,3.17mm ID x 4191mm L, SAE 100R7

Toolbar Pivot, Left Hand, 4191 mm (165"), Grease Filled

1шт.

17

87323251

HOSE,3.17mm ID x 3861mm L, SAE 100R7

Left Hand Front Cylinder Pin, 3861 mm (152"), Grease Filled

1шт.

18

87323273

HOSE ASSY.

Rockshaft Pivot, Left Hand, 3455 mm (136"), Grease Filled

1шт.

19

87323254

HOSE,3.17mm ID x 3505mm L, SAE 100R7

Rear Cylinder Pin, 3505 mm (138"), Grease Filled

1шт.

20

87323231

HOSE,4.76mm ID x 4598mm L, SAE 100R7

Drum Feed #4, 4166 mm (164"), Grease Filled

1шт.

21

87323239

HOSE,3.17mm ID x 5600mm L, SAE 100R7

Drum Feed #5, 5258 mm (207"), Grease Filled

1шт.

22

87323246

HOSE,3.17mm ID x 2337mm L, SAE 100R7

Lift Arm Pivot, Right Hand, 2337 mm (92"), Grease Filled

1шт.

23

87323272

HOSE,3.17mm ID x 3327mm L, SAE 100R7

Toolbar Pivot, Right Hand, 3327 mm (131"), Grease Filled

1шт.

24

87323250

HOSE,3.17mm ID x 3556mm L, SAE 100R7

Toolbar Retainer, Right Hand, 3556 mm (140"), Grease Filled

1шт.

25

87414993

HOSE

Right Hand Front Cylinder Pin, 1169 mm (46"), Grease Filled

1шт.

26

87323255

HOSE,3.17mm ID x 2845mm L, SAE 100R7

Rockshaft Right Hand Rear Cylinder Pin, 2845 mm (112"), Grease Filled

1шт.

27

87323258

HOSE,3.17mm ID x 914mm L, SAE 100R7

Fan Idler Pivot, Right Hand, 914 mm (36"), Grease Filled

1шт.

28

87323242

HOSE,3.17mm ID x 1397mm L, SAE 100R7

Front Fan Front Bearing, 1397 mm (39-1/2"), Grease Filled

1шт.

29

87323244

HOSE,3.17mm ID x 1041mm L, SAE 100R7

Front Fan Rear Bearing, 1041 mm (41"), Grease Filled

1шт.

30

87323226

HOSE

Pump Outlet Drum, 1321 mm (52"), Grease Filled

1шт.

31

87323227

HOSE,4.76mm ID x 711mm L, SAE 100R7

Pump Outlet Chassis, 1500 mm (59"), Grease Filled

1шт.

32

87323277

HOSE,60.3mm ID x 1220mm L

Cordura Hose, 1067 mm (48")

1шт.

33

87415927

SLEEVE

Cordura Hose, 1346 mm (53")

2шт.

34

87415938

COVER

2шт.

35

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

36

1301387C2

CLIP

8шт.

37

87414625

MANIFOLD

Block Assy, Grease and Water, Serviced as Individual Pieces

2шт.

38

87414568

MANIFOLD

1шт.

39

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

4шт.

40

426777A1

FITTING,3/8" Male Thread x 3/8" 90 Degree Hose Barb

3/8 x 3/8 elbow

1шт.

41

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1/4 x 3/8 barb

2шт.

42

87414643

FITTING,1/2" Male Thread x 1/2" 90 Degree Hose Barb

1/2 x 1/2 barb 90

1шт.

43

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

44

231-1445

NUT,5/16"-18, GB

2шт.

45

87414876

HOSE,9.53 mm ID x 3048.00 mm

Water, 3048 mm (120"), Cut From 87417263

6шт.

46

427377A1

HOSE,9.52 mm ID x 3048.00 mm

Lube, Cut From 122467A1

6шт.

47

427379A1

CONDUIT

Convoluted Insulation, 2337 mm (92"), 1.25" ID

6шт.

48

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

60шт.

49

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

28шт.

50

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

4шт.

53

892-11008

LOCK WASHER,8mm ID

8шт.

54

87355854

PLATE

P Clamp Lift Arm, Used on Right Hand Lift Arm

1шт.

55

87323230

HOSE,4.76mm ID x 5385mm L, SAE 100R7

Drum # 3 Lube Supply, 5385 mm (212") Long

1шт.

56

87323228

HOSE,3.17mm ID x 6757mm L, SAE 100R7

Drum #6 Lube Supply, 6757 mm (266") Long

1шт.

57

87323256

HOSE,3.17mm ID x 2159mm L, SAE 100R7

Rear Fan Tightener, 2159 mm (85") Long

1шт.

58

87414999

HOSE

Rear Fan Front Bearing, 661 mm (26") Long

1шт.

59

87323243

HOSE,3.17mm ID x 2692mm L, SAE 100R7

Rear Fan, Rear Bearing, 2692 mm (106") Long

1шт.

60

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

61

419744A1

BRACKET

Lubrication Hose

1шт.

62

1301387C2

CLIP

1шт.

63

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.
