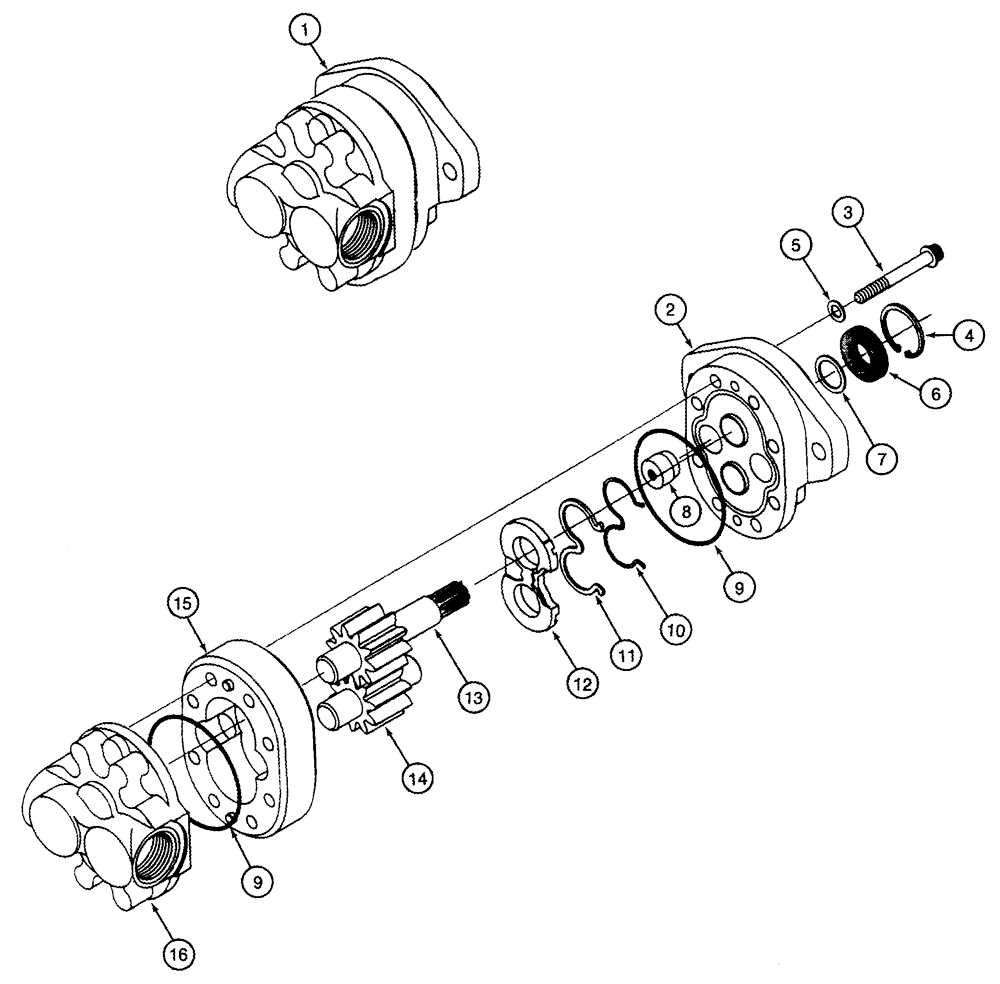

Запчасти Case IH 625 (35.322.01) - HYDRAULIC GEAR PUMP ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

87423529

PUMP,11 CC

Gear, Inc. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

COVER

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW

8шт.

4

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER

8шт.

6

NSS

NOT SOLD SEPARAT

SEAL

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

2шт.

10

NSS

NOT SOLD SEPARAT

GASKET, Housing, Back-Up

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR, Drive, With Shaft

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR, Idler

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING, Center, Gear Shaft

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING, Port End

1шт.

291744A1

SEAL KIT

(Not Shown)

1шт.
