(50.200.03) - HEATER, AIR CONDITIONING CHASSIS CONNECTIONS

Запчасти Case IH 635 (50.200.03) - HEATER, AIR CONDITIONING CHASSIS CONNECTIONS (50) - CAB CLIMATE CONTROL

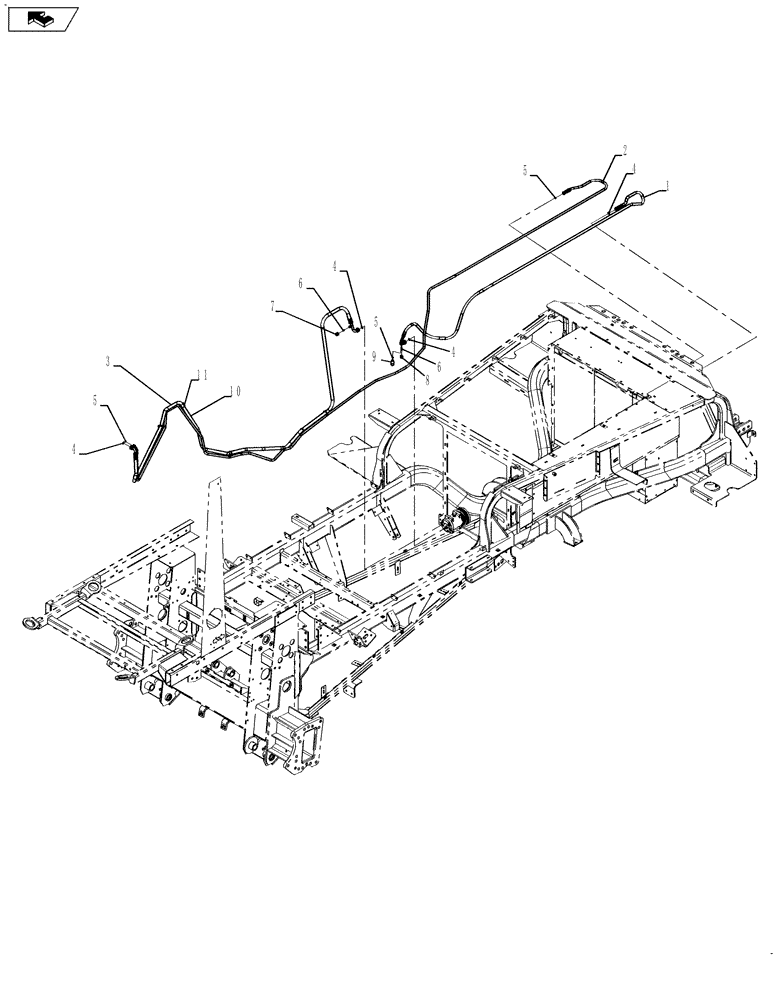

Схема запчастей Case IH 635 - (50.200.03) - HEATER, AIR CONDITIONING CHASSIS CONNECTIONS (50) - CAB CLIMATE CONTROL
3
2
1
6
4
5
8
5
4
11
7
4
4
5
6
10
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

301267A1

HOSE

Assembly, Serial Range: Compressor-Condensor

1шт.

2

301265A1

HOSE

Assembly, Serial Range: Condensor-Cab

1шт.

3

301269A1

HOSE

Assembly, Serial Range: Cab-Compressor

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

4шт.

5

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

3шт.

6

1250594C2

CORE

Valve

2шт.

7

122554A1

CAP

High Side Service Port

1шт.

8

122553A1

CAP

Low Side Service Port

1шт.

9

369798A2

SWITCH

A/C High Pressure

1шт.

10

191134A1

HOSE,60.3mm ID x 956mm L

Cordura

1шт.

11

291207C1

CLAMP

Cable Strap

6шт.
