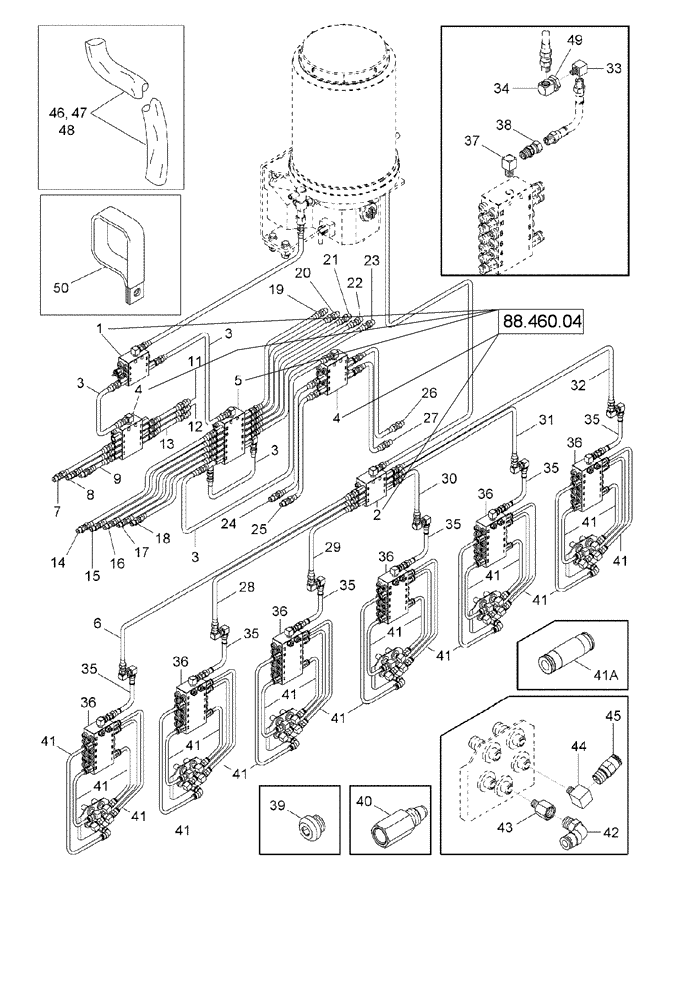

Запчасти Case IH 635 (88.460.05) - LUBE LINES (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
6
87323239
HOSE,3.17mm ID x 5600mm L, SAE 100R7
Grease Filled, Drum #6 Lube Supply, 5258 mm (207") Long
1шт.
7
87323246
HOSE,3.17mm ID x 2337mm L, SAE 100R7
Grease Filled, Right Hand Lift Pivot, 2337 mm (92") Long
1шт.
8
87323272
HOSE,3.17mm ID x 3327mm L, SAE 100R7
Grease Filled, Right Hand Toolbar Pivot, 3327 mm (131") Long
1шт.
9
87323250
HOSE,3.17mm ID x 3556mm L, SAE 100R7
Grease Filled, Right Hand Toolbar Retainer Pivot, 3556 mm (140") Long
1шт.
11
87323245
HOSE,3.17mm ID x 3150mm L, SAE 100R7
Grease Filled, Left Hand Lift Arm Pivot, 3150 mm (124") Longø
1шт.
12
87323271
HOSE,3.17mm ID x 4191mm L, SAE 100R7
Grease Filled, Left Hand Toolbar Pivot, 4191 mm (165") Long
1шт.
13
87323248
HOSE,3.17mm ID x 4318mm L, SAE 100R7
Grease Filled, Left Hand Toolbar Retainer Pivot, 4318 mm (170") Long
1шт.
14
87323253
HOSE,3.17mm ID x 3023mm L, SAE 100R7
Grease Filled, Right Hand Lift Cylinder Pin, 3023 mm (119") Long
1шт.
15
87323255
HOSE,3.17mm ID x 2845mm L, SAE 100R7
Grease Filled, Rear Right Hand Lift Cylinder Pin, 2845 mm (112") Long
1шт.
16
87323275
HOSE,3.17mm ID x 2590mm L, SAE 100R7
Grease Filled, Right Hand Rockshaft Pivot, 2590 mm (106") Long
1шт.
18
87323275
HOSE,3.17mm ID x 2590mm L, SAE 100R7
Grease Filled, Lower Rockshaft Cylinder Pin, 2590 mm (106") Long
1шт.
19
87323251
HOSE,3.17mm ID x 3861mm L, SAE 100R7
Grease Filled, Front Left Hand Lift Cylinder Pin, 3861 mm (152") Long
1шт.
20
87323254
HOSE,3.17mm ID x 3505mm L, SAE 100R7
Grease Filled, Rear Left Hand Lift Cylinder Pin, 3505 mm (138") Long
2шт.
21
87323273
HOSE ASSY.
Grease Filled, Left Hand Rockshaft Pivot, 3455 mm (136") Long
1шт.
22
87323256
HOSE,3.17mm ID x 2159mm L, SAE 100R7
Grease Filled, Rear Fan Tightener, 2159 mm (85") Long
1шт.
23
87323254
HOSE,3.17mm ID x 3505mm L, SAE 100R7
Grease Filled ,Upper Rockshaft Cylinder Pin, 3505 mm (138") Long
1шт.
24
87323242
HOSE,3.17mm ID x 1397mm L, SAE 100R7
Grease Filled, Front Fan Front Bearing, 1397 mm (39-1/2") Long
1шт.
25
87323244
HOSE,3.17mm ID x 1041mm L, SAE 100R7
Grease Filled, Front Fan Rear Bearing, 1041 mm (41") Long
1шт.
26
87323241
HOSE,3.17mm ID x 2184mm L, SAE 100R7
Grease Filled, Rear Fan Front Bearing, 2184 mm (86") Long
1шт.
27
87323243
HOSE,3.17mm ID x 2692mm L, SAE 100R7
Grease Filled, Rear Fan, Rear Bearing, 2692 mm (106") Long
1шт.
29
87323231
HOSE,4.76mm ID x 4598mm L, SAE 100R7
Grease Filled, Drum #4 Lube Supply, 4166 mm (164") Long
1шт.
30
87323230
HOSE,4.76mm ID x 5385mm L, SAE 100R7
Grease Filled, Drum #3 Lube Supply, 5385 mm (212") Long
1шт.
31
87323228
HOSE,3.17mm ID x 6757mm L, SAE 100R7
Grease Filled, Drum #2 Lube Supply, 6757 mm (266") Long
1шт.
32
87323238
HOSE,3.17mm ID x 7569mm L, SAE 100R7
Grease Filled, Drum #1 Lube Supply, 7569 mm (298") Long
1шт.
41
430140A1
TUBE
Grease Filled, 750 mm (29-1/2") Long 1/4" OD, Cut From 430134A1
30шт.
46
87323276
SLEEVE,60.3mm ID x 1525mm L
Hose Cordura Right and Left Hand Sides, 1525 mm (60") Long
2шт.
47
87323277
HOSE,60.3mm ID x 1220mm L
Hose Cordura, Left Hand Side, 1220 mm (48") Long
1шт.
48
87415927
SLEEVE
Hose Cordura Right and Left Hand Sides, 1346 mm (53") Long
2шт.
