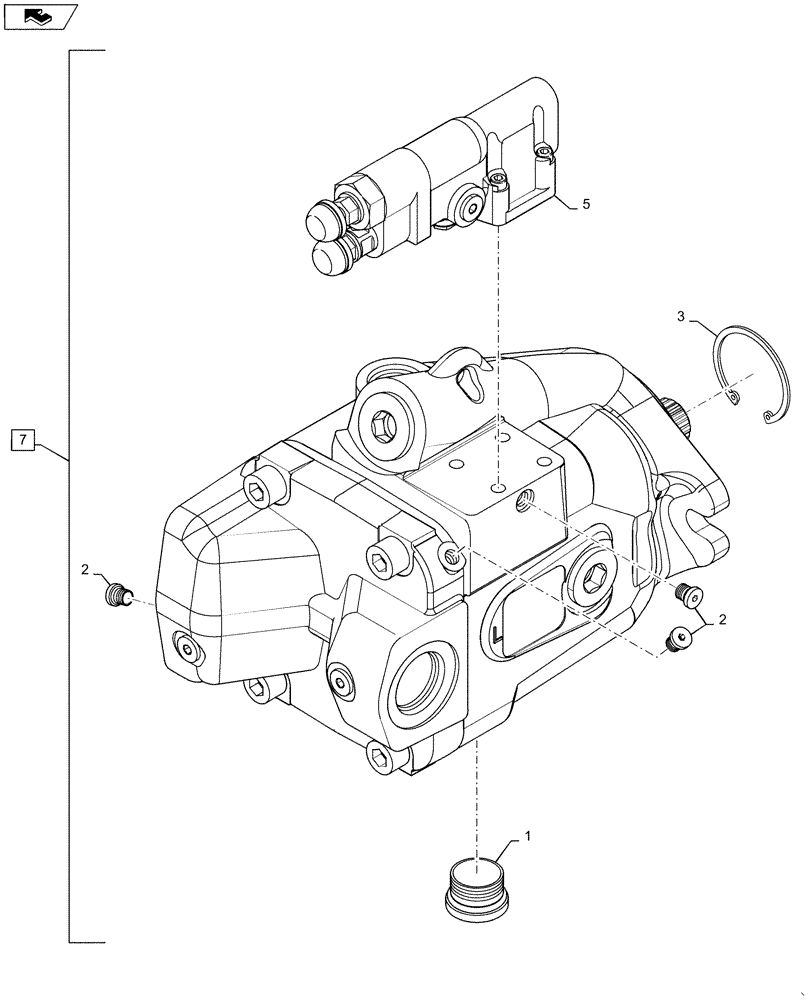

Запчасти Case IH 635 (29.218.03[02]) - AUXILLARY HYDRAULIC PUMP, MDL YEAR 2012 (29) - HYDROSTATIC DRIVE

1

9841223

PLUG,1-1/16" - 12 ORB

1шт.

2

86632547

PLUG,Hex, 5/16"-24 ORB

3шт.

3

66800

SNAP RING,2", Int, #200

1шт.

4

87581184

BEARING SET

Not Illustrated, Incl Front and Rear Bearings

1шт.

5

84554701

COMPENSATOR

1шт.

6

84233196

SEAL KIT

Not Illustrated, Incl 8 different O-Rings, Shaft Seal, Retaining Ring and Backup Washer

1шт.

7

84495692

HYDRAULIC PUMP,46 CC

Piston, Incl 2 - 6, 8 - 9

1шт.

8

47572781

HYDRAULIC PUMP,45 CC

Drive, (Not Shown)

1шт.

9

47804892

SHAFT

Charge Pump (Not Shown)

1шт.

10

409970

COUPLING

Charge Pump (Not Shown)

1шт.
