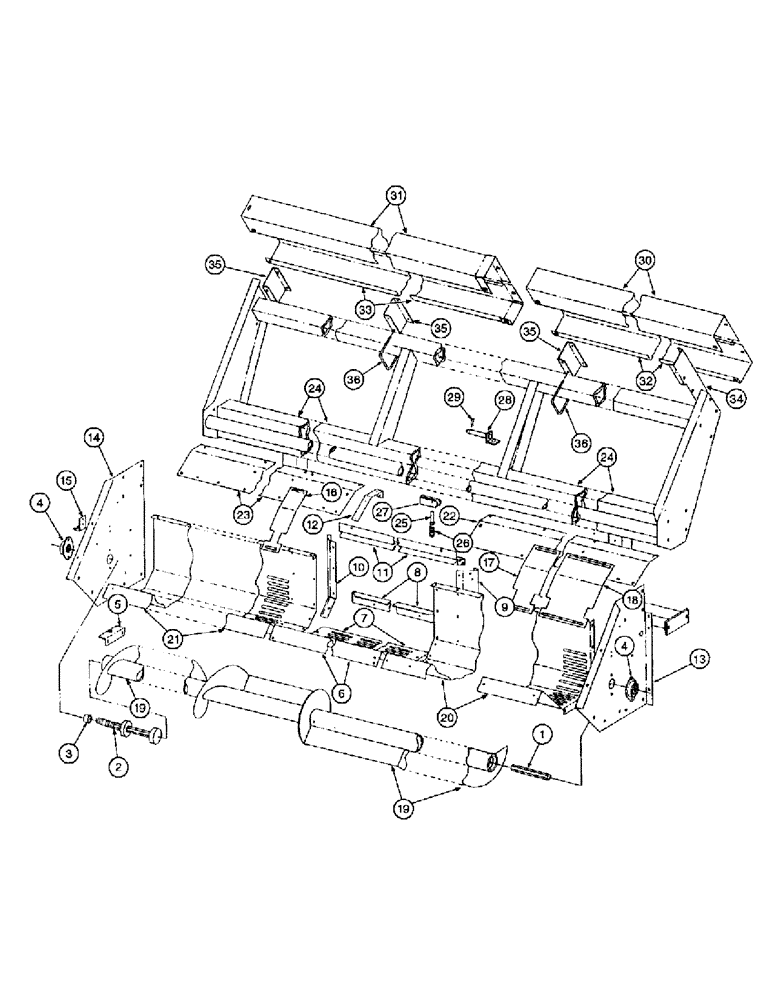

Запчасти Case IH 1400 (9A-20) - CROSS AUGER AND KICKER, TWO ROW (13) - PICKING SYSTEM

1

217738C1

BAR ASSY.

BAR - cross auger, left-hand

1шт.

2

222271C1

SHAFT

- cross auger shaft, right-hand

1шт.

3

217740C1

SPACER

- auger

1шт.

4

217935C91

BEARING HOUSING,4.4375" OD x 0.8125"

BEARING - flush mount

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

4шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

4шт.

5

222368C1

SUPPORT

- lower shield

1шт.

6

217791C1

HOUSING

SECTION - center

1шт.

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW, self-tapping, hex washer head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

5шт.

7

217795C2

SECTION - auger housing center

1шт.

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW, self-tapping, hex washer head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

5шт.

8

220956C2

PLATE

- boll edge

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch (Replaces screw 27569R1)

2шт.

9

220978C1

HOLDER

SUPPORT - opening, left-hand

1шт.

10

220979C1

HOLDER

SUPPORT - opening, right-hand

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

8шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

8шт.

11

220977C1

HOLDER

SUPPORT - opening, upper

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

4шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

12

217863C1

HOLDER

SUPPORT - auger sheet

4шт.

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

(Replaces bolt 191249) Hex, 3/8"-16 x 3 3/4", G5

4шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

12шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

12шт.

13

1999049C1

HOLDER

SUPPORT - housing end, left-hand (Replaces support 217880C1)

1шт.

14

1999050C1

HOLDER

SUPPORT - housing end, right-hand (Replaces support 217881C1)

1шт.

15

222417C1

ANGLE

- sensor

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

16

219817C1

HOLDER

SECTION - auger

2шт.

17

219818C1

HOLDER

SECTION - auger

6шт.

18

219819C1

HOLDER

SECTION - auger

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

10шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

10шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

10шт.

129-410

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC (Replaces nut 126032)

10шт.

19

219684C2

AUGER - cross

1шт.

20

1251234C1

ASSEMBLY

SECTION - auger housing, left-hand, also order decal 65982C1

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

5шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

8шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

1шт.

21

1251235C1

ASSEMBLY

SECTION - auger housing, right-hand, also order decal 65982C1

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

5шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

10шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

15шт.

22

219704C2

SECTION - auger front, left-hand

1шт.

23

219705C1

SUPPORT

SECTION - auger front, right-hand

1шт.

24

219754C3

SUPPORT - cross auger (Replaces support 219754C2)

1шт.

25

222416C1

PIN

- handle bar

2шт.

26

251262R2

VALVE SPRING

SPRING - handle bar

2шт.

27

222415C1

HOLDER

BAR - handle

2шт.

38-11620

PIN,1/4" x 1 1/4", Slotted

(Replaces 576485R1) 1/4" x 1 1/4", Slotted

2шт.

219915C1

NUT

- retainer, 5/16 inch NC

9шт.

28

219831C1

HEADED PIN

PIN - support

2шт.

29

1978738C1

HAIR PIN COTTER

- quick attach (Replaces pin 517843R1)

2шт.

30

1251230C1

SHIELD - upper left-hand, also order decals 174732C1 and 175311C1

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

31

1251231C1

SHIELD

- upper right-hand, also order decal 175311C1

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

4шт.

32

219708C2

SHIELD - lower left-hand

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

33

219709C1

SUPPORT

SHIELD - lower right-hand

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

4шт.

34

217877C1

CHANNEL

SUPPORT - end, right-hand

1шт.

219915C1

NUT

- retainer

3шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces bolt 180175)

1шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

(Replaces nut 487374R1) Flg, USR, 1/2"-13

1шт.

386170C1

CABLE TIE,.30" x 27 1/2"

TIE - cable

10шт.

35

1251534C1

CHANNEL

SUPPORT - unit shield, two row

2шт.

36

668790R1

BOLT

- shield support

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.
