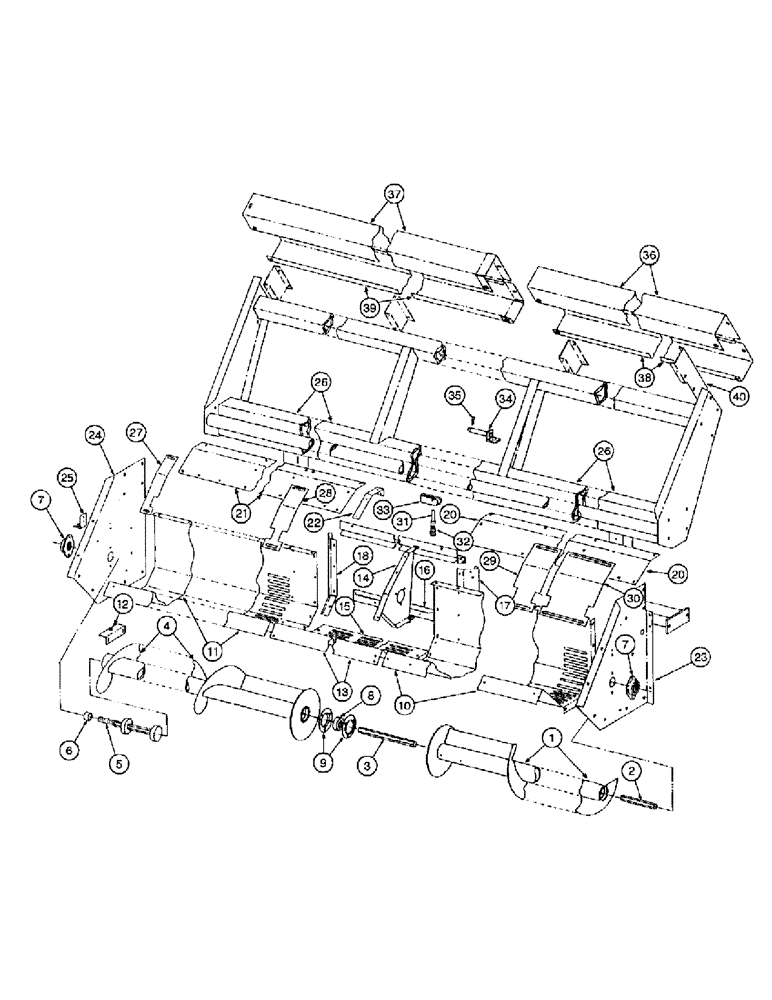

Запчасти Case IH 1400 (9A-22) - CROSS AUGER AND KICKER, FOUR ROW (13) - PICKING SYSTEM

1

217722C1

AUGER

- cross, left-hand

1шт.

2

217738C1

BAR ASSY.

BAR - cross auger, left-hand

1шт.

113-263

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5, Full Thd

(Replaces 189305) Hex, 3/8"-16 x 3 1/2", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

3

217736C2

BAR ASSY.

BAR - cross auger center

1шт.

4

217727C2

AUGER

- cross, right-hand

1шт.

113-263

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5, Full Thd

(Replaces 189305) Hex, 3/8"-16 x 3 1/2", G5, Full Thd

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

3шт.

5

222271C1

SHAFT

- cross auger, right-hand

1шт.

6

217740C1

SPACER

- auger

1шт.

7

217935C91

BEARING HOUSING,4.4375" OD x 0.8125"

BEARING - flush mount

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

4шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

4шт.

8

211587C91

BALL BEARING,1.586" ID x 62 mm OD x 24 mm

BEARING - center

1шт.

9

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing retainer, no longer used, order flange H747188 below

2шт.

9

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing retainer, if used (Replaces flange 565631R1)

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

10

1251232C1

HOUSING

SECTION - left-hand, also order decal 65982C1

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

13шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

12шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

12шт.

11

1251233C1

HOUSING

SECTION - right-hand, also order decal 65982C1

1шт.

12

222368C1

SUPPORT

- lower shield

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

13шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

12шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

12шт.

13

217791C1

HOUSING

SECTION - center

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

5шт.

14

217792C1

HOLDER

SUPPORT - bearing center

1шт.

22239R1

BOLT - hex, 3/8 NC x 3/4 inch

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

4шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

5шт.

15

217796C2

HOUSING

SECTION - auger housing center

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

8шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

4шт.

16

220956C2

PLATE

- boll edge

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch (Replaces screw 27569R1)

2шт.

17

220978C1

HOLDER

SUPPORT - opening, left-hand

1шт.

18

220979C1

HOLDER

SUPPORT - opening, right-hand

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

8шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

8шт.

19

220977C1

HOLDER

SUPPORT - opening, upper

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

4шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

20

217846C1

HOLDER

SECTION - auger, front left-hand

1шт.

21

217845C1

HOLDER

SECTION - auger, front right-hand

1шт.

22

217863C1

HOLDER

SUPPORT - auger sheet

10шт.

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

(Replaces bolt 191249) Hex, 3/8"-16 x 3 3/4", G5

10шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

30шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

30шт.

23

1999049C1

HOLDER

SUPPORT - housing end, left-hand (Replaces support 217880C1)

1шт.

24

1999050C1

HOLDER

SUPPORT - housing end, right-hand (Replaces support 217881C1)

1шт.

25

222417C1

ANGLE

- sensor

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

4шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

4шт.

26

217839C2

SUPPORT - cross auger (Replaces support 217839C1)

1шт.

219915C1

NUT

- retainer, 5/16 inch NC

4шт.

38-11620

PIN,1/4" x 1 1/4", Slotted

(Replaces 576485R1) 1/4" x 1 1/4", Slotted

2шт.

27

219816C1

HOLDER

SECTION - auger cover

1шт.

28

219817C1

HOLDER

SECTION - auger cover

3шт.

29

219818C1

HOLDER

SECTION - auger cover

6шт.

30

219819C1

HOLDER

SECTION - auger cover

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

10шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

10шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

10шт.

129-410

WING NUT,3/8"-16

NUT - wing, 3/8 inch (Replaces nut 126032)

10шт.

31

222416C1

PIN

- quick attach

2шт.

32

251262R2

VALVE SPRING

SPRING - handle bar

2шт.

33

222415C1

HOLDER

BAR - handle

2шт.

38-11620

PIN,1/4" x 1 1/4", Slotted

(Replaces 576485R1) 1/4" x 1 1/4", Slotted

2шт.

34

219831C1

HEADED PIN

PIN - support

2шт.

35

1978738C1

HAIR PIN COTTER

- quick attach (Replaces pin 517843R1)

2шт.

36

1251228C1

SHIELD - upper left-hand, also order decal 174732C1

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

4шт.

37

1251229C1

SHIELD

- upper right-hand, also order decal 175311C1

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

6шт.

38

217715C1

SUPPORT

SHIELD - lower left-hand

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

4шт.

39

217716C1

SUPPORT

SHIELD - lower right-hand

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

6шт.

40

217877C1

CHANNEL

SUPPORT - end right-hand

1шт.

219915C1

NUT

- retainer

3шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces bolt 180175)

1шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

(Replaces nut 487374R1) Flg, USR, 1/2"-13

1шт.
