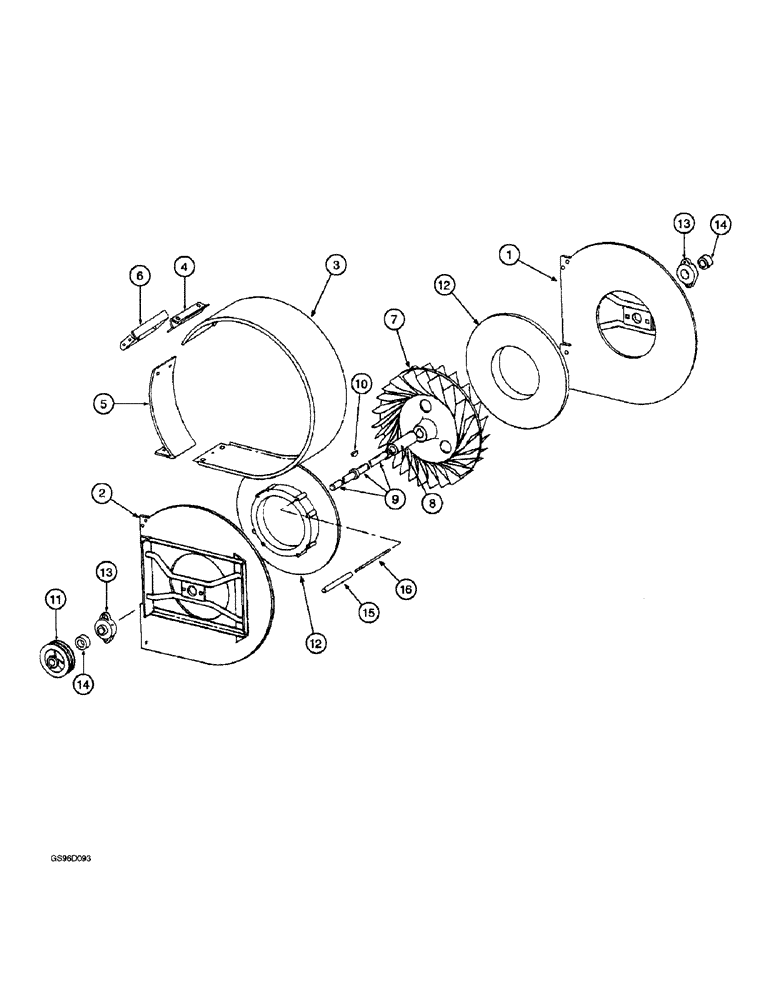

Запчасти Case IH 1400 (9B-04) - CONVEYOR FAN (15) - HANDLING SYSTEM

1

217542C1

HOUSING

- fan front

1шт.

2

217543C1

HOUSING

- fan rear

1шт.

3

221533C1

COVER

- outer sheet (Replaces cover 204413C1)

1шт.

27044R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 NC x 3/8 inch

2шт.

4

204414C1

SUPPORT

- tie bracket

1шт.

412-412

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 3/4", Gr 2

BOLT - carriage, 1/4 NC x 3/4 inch, grade 2 (Replaces bolt 12653R1)

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

4шт.

5

1251167C1

BAFFLE

- fan

1шт.

27044R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 NC x 3/8 inch

2шт.

6

204415C1

SUPPORT

- bolt anchor

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolts 16897R1 and 598802R1)

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

6шт.

111-327

CARRIAGE BOLT,Short NK, 3/8"-16 x 3", G2

BOLT - carriage, 3/8 NC x 3 inch (Replaces bolt 18511R1)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

7

221673C1

FAN

ROTOR - fan

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 17433R1) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

1шт.

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch (Replaces washer 607895R1)

1шт.

8

217547C1

SPACER

- fan blade

1шт.

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch (Replaces washer 22050R1)

1шт.

9

217548C1

SHAFT

- fan

1шт.

10

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

(Replaces key 118001) #28, 5/16" x 2 1/8", HT

2шт.

11

217940C1

PULLEY

- fan

1шт.

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch (Replaces washer 131000)

1шт.

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC (Replaces nut 22244R1)

1шт.

12

207515C1

BAFFLE

SECTION - fan baffle

2шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch (Replaces bolt 180085)

16шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

16шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

16шт.

13

219651C91

FLANGED BEARING,1.25" ID x 1.589" OD x 13"

BEARING - fan

2шт.

14

557995R11

COLLAR

- locking, includes set screw

1шт.

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch (Replaces bolt 634979R1)

4шт.

9628503

NUT,3/8"-16, G5

4шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

15

215020C1

PIPE

- fan housing

1шт.

16

215709C1

STUD

ROD - tie, fan housing

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces bolt 180175)

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") (Replaces washer 120396) 1/2", SAE

4шт.
