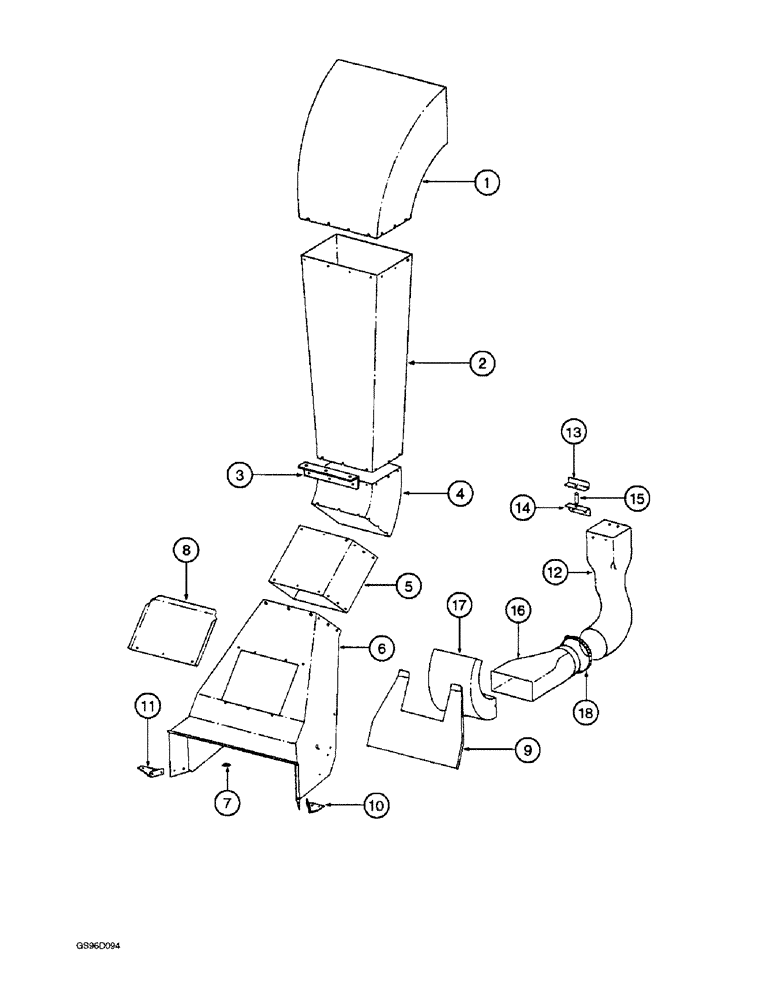

Запчасти Case IH 1400 (9B-06) - CONVEYOR (15) - HANDLING SYSTEM

1

217501C1

CHUTE ASSY.

CHUTE - conveyor

1шт.

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18673R1)

14шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

14шт.

2

217498C1

CHUTE ASSY.

CHUTE - elevator

1шт.

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18673R1)

12шт.

19817R1

BOLT - hex, 5/16 NC x 1 inch

14шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

12шт.

3

219781C1

ANGLE

- support

1шт.

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18673R1)

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

2шт.

4

217494C1

ELBOW

- elevator

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

12шт.

19882R1

BOLT - hex, 5/16 NC x 3/4 inch

12шт.

5

217491C1

CHUTE ASSY.

CHUTE - conveyor

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

6шт.

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

12шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

18шт.

6

1999003C1

CHAMBER

- air (Replaces chamber 222254C1)

1шт.

19882R1

BOLT - hex, 5/16 NC x 3/4 inch

3шт.

7

1251142C1

RECEPTACLE - clip-on

2шт.

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18673R1)

12шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

12шт.

8

222270C1

COVER

- boll separator

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC (Replaces nut 142745)

3шт.

9

1999008C1

BAFFLE

SHEET - air chamber lower baffle (Replaces sheet 222402C1)

1шт.

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18673R1)

10шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017r1 )

10шт.

10

222260C1

SUPPORT

ANGLE - clamp, left-hand

1шт.

11

222261C1

SUPPORT

ANGLE - clamp, right-hand

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

8шт.

12

220981C1

ELBOW

- fan outlet

1шт.

13

222352C1

ANGLE

- pipe upper

2шт.

14

222353C1

ANGLE

- pipe lower

2шт.

15

222354C1

SPACER

- pipe

2шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

4шт.

11-580

CARRIAGE BOLT,Short NK, 5/16"-18 x 5", G2

BOLT - carriage, 5/16 NC x 5 inch, grade 2 (Replaces bolt 18681R1)

2шт.

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch (Replaces washer 446470)

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

6шт.

16

222269C1

PIPE

- transition

1шт.

24411R1

SELF-TAP SCREW

- self-tapping, 1/4 NC x 7/8 inch

4шт.

17

222262C1

PIPE

- elbow nozzle

1шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

7шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

3шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

3шт.

18

603697C91

CLAMP

- hose, No. 156, Type F

1шт.
