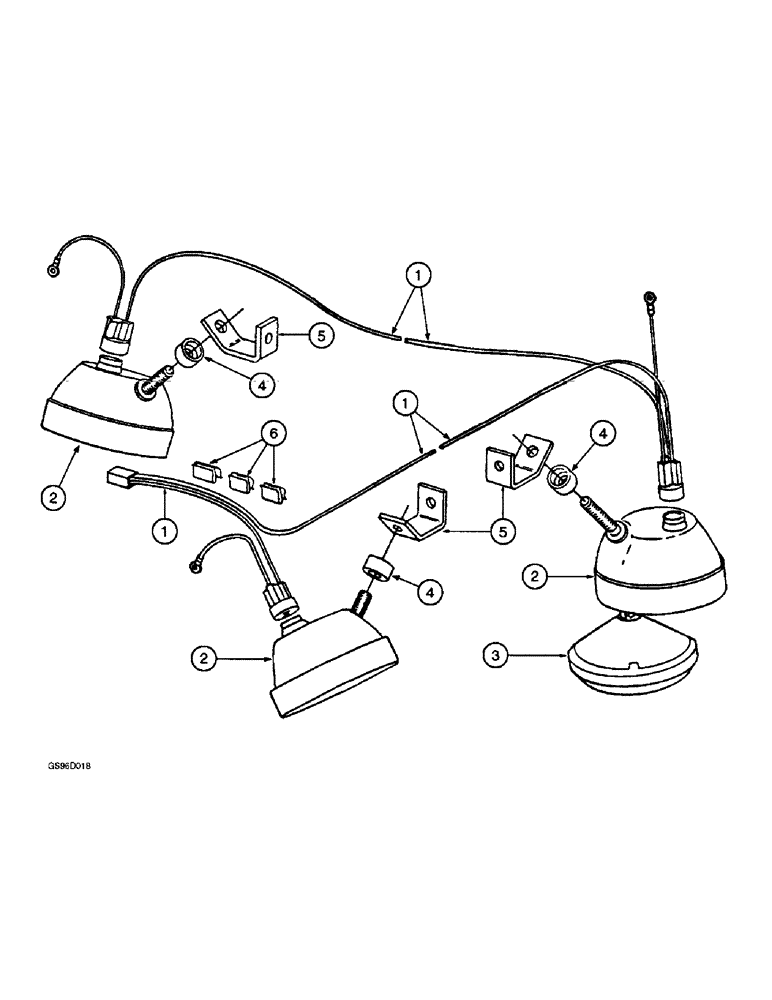

Запчасти Case IH 1400 (4-12) - AUXILIARY LAMPS (06) - ELECTRICAL SYSTEMS

1

107266C1

HARNESS - auxiliary lamps

1шт.

2

245954C91

LAMP

ASSEMBLY - head, sealed beam (Replaces lamp assembly 391005R91)

3шт.

373662R1

LAMP

SEAL BEAM - headlamp

4шт.

A25213

RETAINER

- for Hobbs lamp assembly (Replaces retainer 676078R1)

4шт.

1252609C1

RETAINER

- for Midwest lamp assembly

4шт.

3

A40034

LAMP BASE

LAMP - sealed beam (Replaces lamp 371443R91)

3шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

(Replaces nut 487374R1) Flg, USR, 1/2"-13

3шт.

4

49069D

SPACER

- lamp

3шт.

5

561915R1

BRACKET

- lamp

3шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr (Replaces bolt 202107C1)

1шт.

6

394763R1

CLIP,ELECTRICAL

CLIP - wire

8шт.
