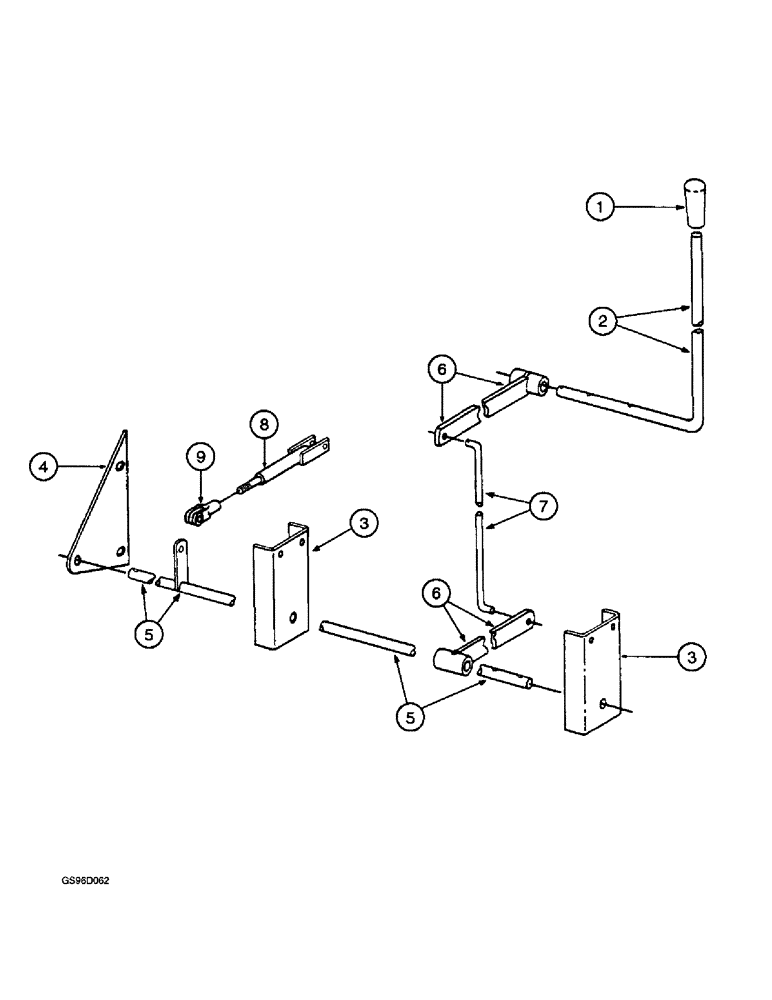

Запчасти Case IH 1400 (8-20) - BASKET LEVER CONTROLS (07) - HYDRAULICS

1

157473C1

KNOB

GRIP - basket control lever

1шт.

2

214984C1

ROD

- basket lever

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121224) 3/32" x 1"

2шт.

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 21/32 x 1-1/4 x 3/64 inch (Replaces washer 608701R1)

2шт.

3

217914C1

SUPPORT

CHANNEL - basket rockshaft support

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

4

217913C1

SUPPORT

- basket lift rockshaft

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

2шт.

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 1/16 inch (Replaces washer 120389)

2шт.

5

217910C1

ROD ASSY.

ROD - basket lift control

1шт.

432-816

COTTER PIN,1/8" x 1"

(Replaces pin 137185) 1/8" x 1"

2шт.

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 21/32 x 1-1/4 x 3/64 inch (Replaces washer 608701R1)

2шт.

6

214982C1

ARM

- basket lever

2шт.

38-11620

PIN,1/4" x 1 1/4", Slotted

(Replaces 576485R1) 1/4" x 1 1/4", Slotted

2шт.

7

217909C1

ROD

- basket lift upper

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121222) 3/32" x 1"

2шт.

8

217915C1

ROD ASSY.

ROD - basket lift control

1шт.

9

213-125

ADJUSTABLE CLEVIS,5/16" - 32

(Replaces clevis 104037) 5/16"-24

1шт.

427-5118

CLEVIS PIN,5/16" x 1 3/16"

PIN - clevis, 5/16 x 1-3/16 inch (Replaces pin 23840R1)

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121222) 3/32" x 1"

1шт.

23268R1

PIN - clevis, 1/4 x 1-1/4 inch

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin 112726) 1/16" x 1/2"

1шт.
