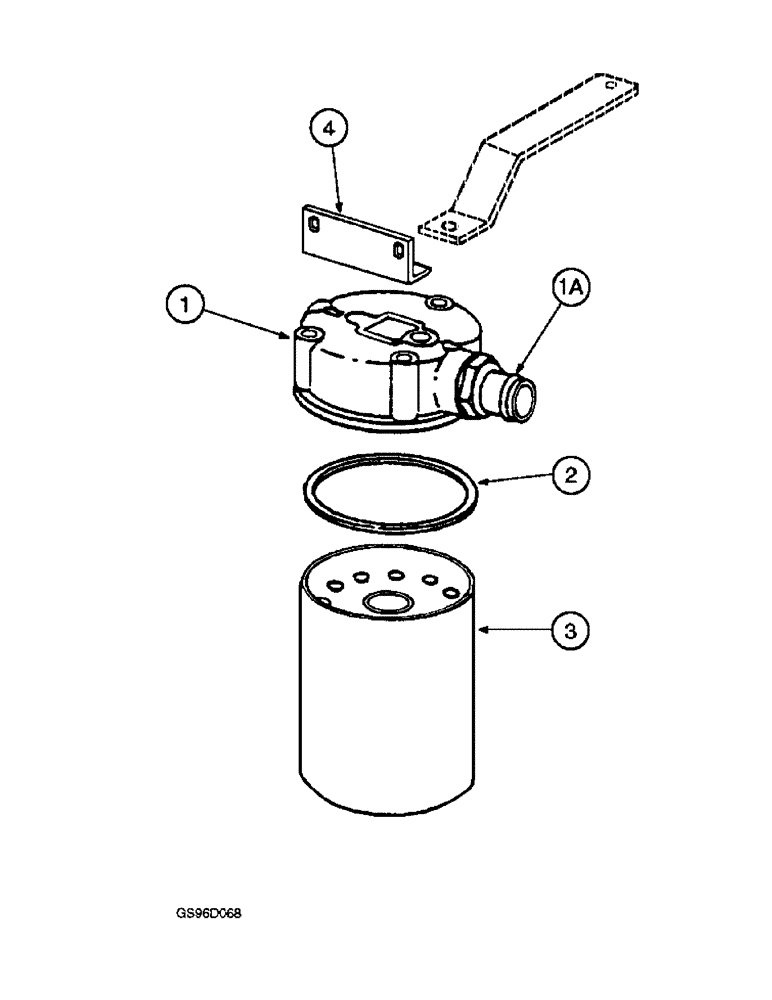

Запчасти Case IH 1400 (8-32) - CHARGE PUMP FILTER (07) - HYDRAULICS

127873C91

FILTER

ASSEMBLY - charge pump, no longer available as a unit, order components separately

1шт.

1

125712C91

BODY - filter

1шт.

1a

1288701C1

FITTING

- filter inlet

1шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

2

123010C2

GASKET

RING - spin-on oil filter (Replaces ring 123010C1)

1шт.

3

69149C1

FILTER

- spin-on oil

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

3шт.

4

219537C2

ANGLE

BRACKET - hydraulic filter support

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.
