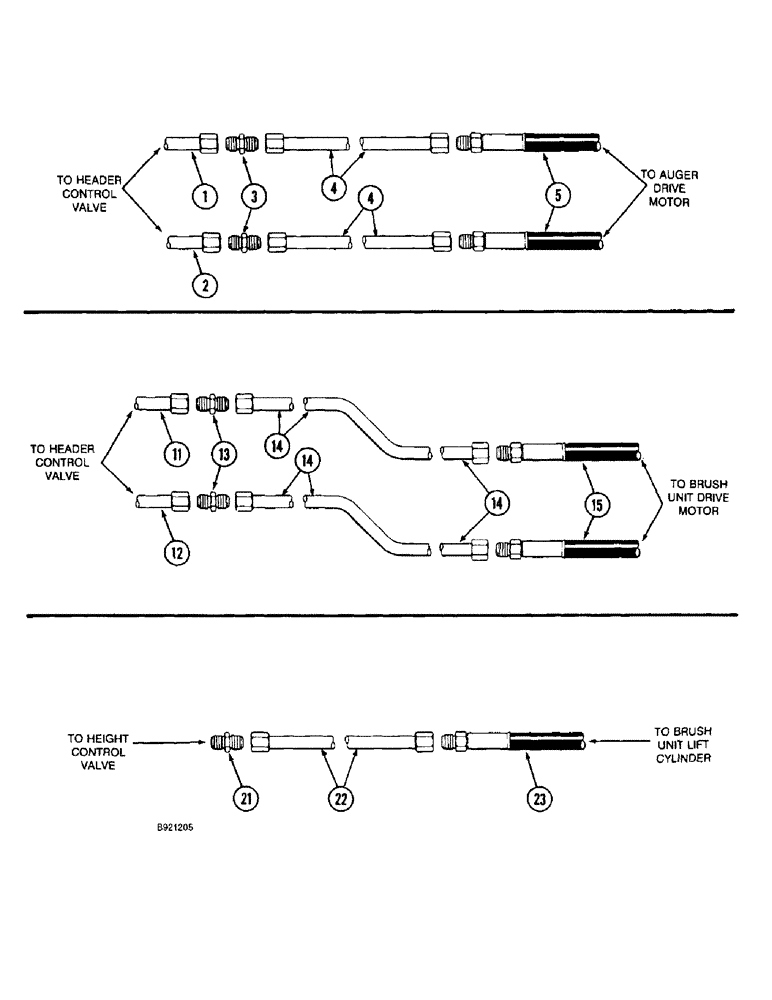

Запчасти Case IH 1800 (8-50) - CROSS AUGER EXTENSION SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

TUBE - hydraulic, return, auger drive, see page 8-47

1шт.

2

REF

INSTRUCTION

TUBE - hydraulic, supply, auger drive, see page 8-47

1шт.

3

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

2шт.

4

1541190C1

HYD TUBE,12.7 mm OD, 711.2 mm Length

TUBE - hydraulic, motor

2шт.

5

REF

INSTRUCTION

HOSE - pressure, see page 8-47

2шт.

11

REF

INSTRUCTION

TUBE - hydraulic, unit No. 3, see page 8-47 BRUSH DRIVE

1шт.

12

REF

INSTRUCTION

TUBE - hydraulic, supply, unit No. 3, see page 8-47 BRUSH DRIVE

1шт.

13

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare BRUSH UNIT DRIVE

2шт.

14

1541189C1

HYD TUBE

TUBE - hydraulic, motor BRUSH UNIT DRIVE

2шт.

15

1541257C1

TUBE

HOSE - tube to motor BRUSH UNIT DRIVE

1шт.

21

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare BRUSH UNIT LIFT

1шт.

22

1541190C1

HYD TUBE,12.7 mm OD, 711.2 mm Length

TUBE - hydraulic, cylinder BRUSH UNIT LIFT

1шт.

23

1541258C1

HOSE

- hydraulic, cylinder BRUSH UNIT LIFT

1шт.
