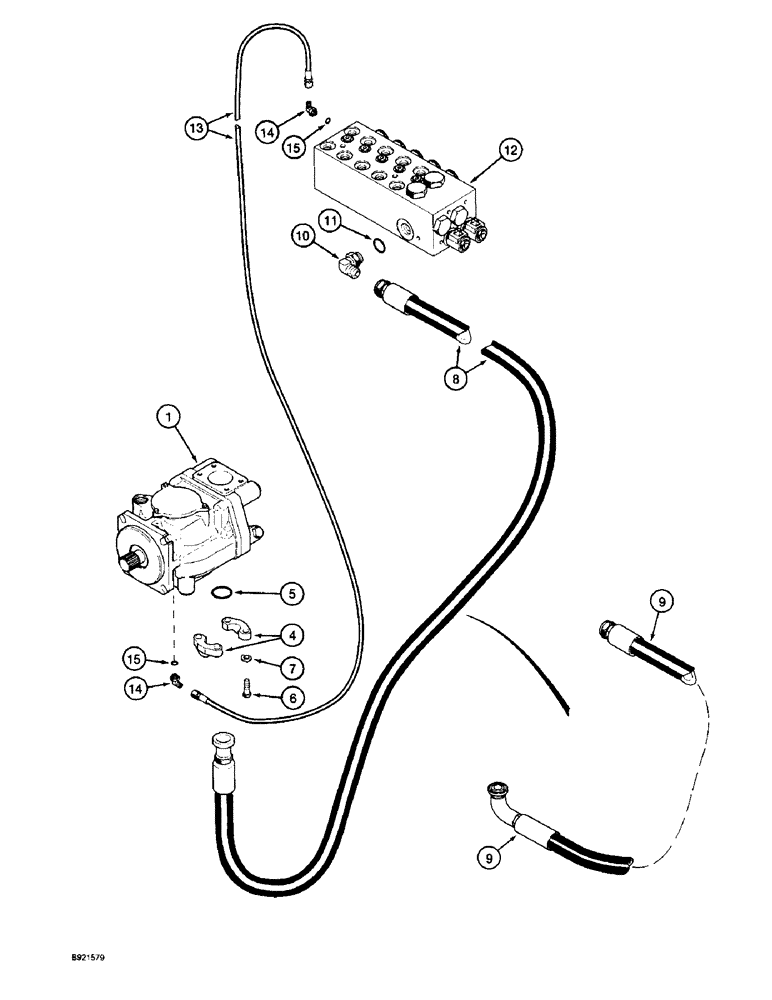

Запчасти Case IH 1800 (8-52) - DRIVE PUMP TO MOTOR CONTROL VALVE SYSTEM (07) - HYDRAULICS

1

1542633C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - unit drive, prior to P.I.N. JJC133070

1шт.

2

1998916C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - unit drive, flanged ends, P.I.N. JJC133070 and after, not shown, mounting shown on page 6-7B

1шт.

3

1542989C1

SEAL

- shaft, not shown

2шт.

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

4

1541238C1

FIXING BRACKET

FLANGE - 1 inch

2шт.

5

238-8219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 8, 90 Duro

- 1-5/16 ID x 1/8 inch wide

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

1541233C1

HOSE

- pressure, prior to P.I.N. JJC133070

1шт.

9

1541335C1

HYDRAULIC HOSE,1.00" ID x 89.00"

- Pressure, P.I.N. JJC133070 and after 1.00" ID x 89.00"

1шт.

10

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adjustable O-ring boss

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - motor control, parts list page 8-39

1шт.

13

1541232C1

HOSE

- sensor

1шт.

14

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adjustable O-ring boss

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
