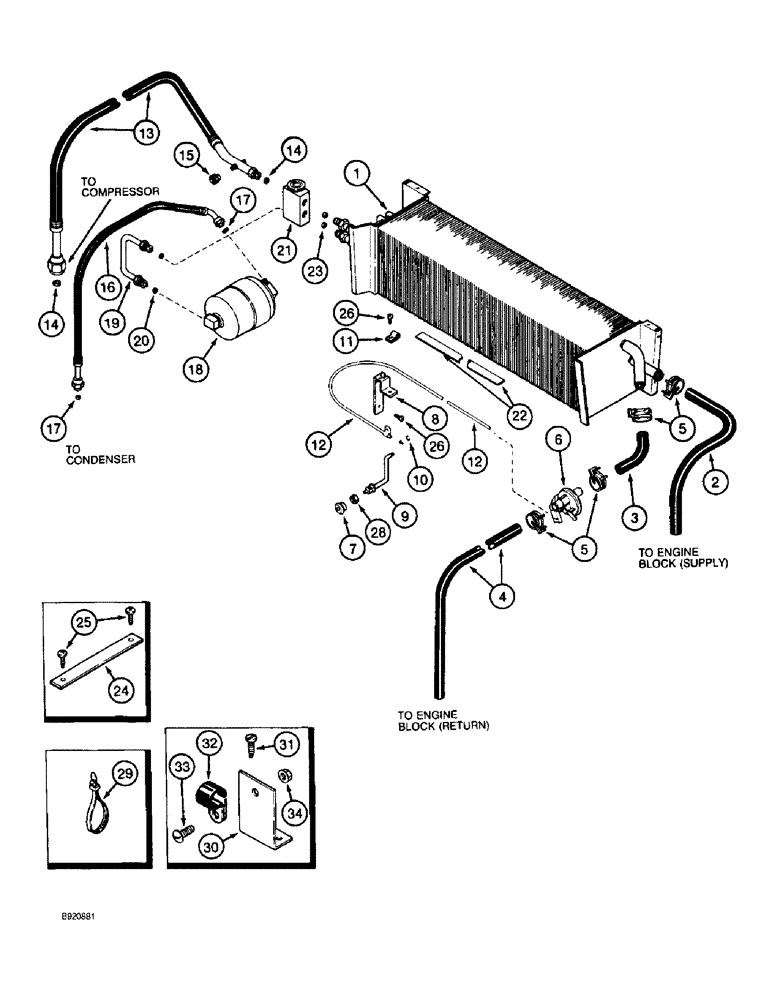

Запчасти Case IH 1800 (9D-30) - HEATER AND AIR CONDITIONING, CAB CONNECTIONS (10) - CAB & AIR CONDITIONING

1

1974632C3

EVAPORATOR

CORE ASSEMBLY - heater and evaporator, parts list page 9D-25

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - heater to chassis junction, 130 inch (3302 mm) long, cut from bulk hose 97252CX below

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater to valve, return, 5 inch (127 mm) long, cut from bulk hose 97252CX below

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to valve to chassis, return, 115 inch (2921 mm) long, cut from bulk hose 97252CX below

1шт.

5

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

4шт.

6

1331087C1

HEATER VALVE

VALVE - heater control

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1989808C1

SUPPORT

- cable, heater valve control

1шт.

9

1989809C1

ARM

LEVER - heater control

1шт.

10

100-3325

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

1шт.

11

1954626C1

SPRING CLIP

CLIP - retaining, cable

1шт.

12

1989810C1

CABLE

- control, heater valve

1шт.

13

1276164C1

HOSE

ASSEMBLY - evaporator discharge, 106 inch (2700 mm) long

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

16

1276163C2

HOSE

ASSEMBLY - drier to cab, 118 inch (3000 mm) long

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

18

REF

INSTRUCTION

RECEIVER-DRIER - see page 9D-25

1шт.

19

1250438C1

TUBE ASSY.

TUBE ASSEMBLY - receiver-drier

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

1990756C2

VALVE

- expansion (Replaces valve 98370C3 )

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - insulation, 96 inch (2438 mm) long, cut from bulk tape 1954475C1 below

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

23

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

24

1321363C2

STRAP

- retaining, hose

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

3шт.

28

109311H

JAM NUT

- hex jam, 7/16-28 NF

1шт.

29

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

30

98158C1

BRACKET

- heater valve support

1шт.

31

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

32

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

33

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.

1954475C1

ROLL

TAPE - bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.
