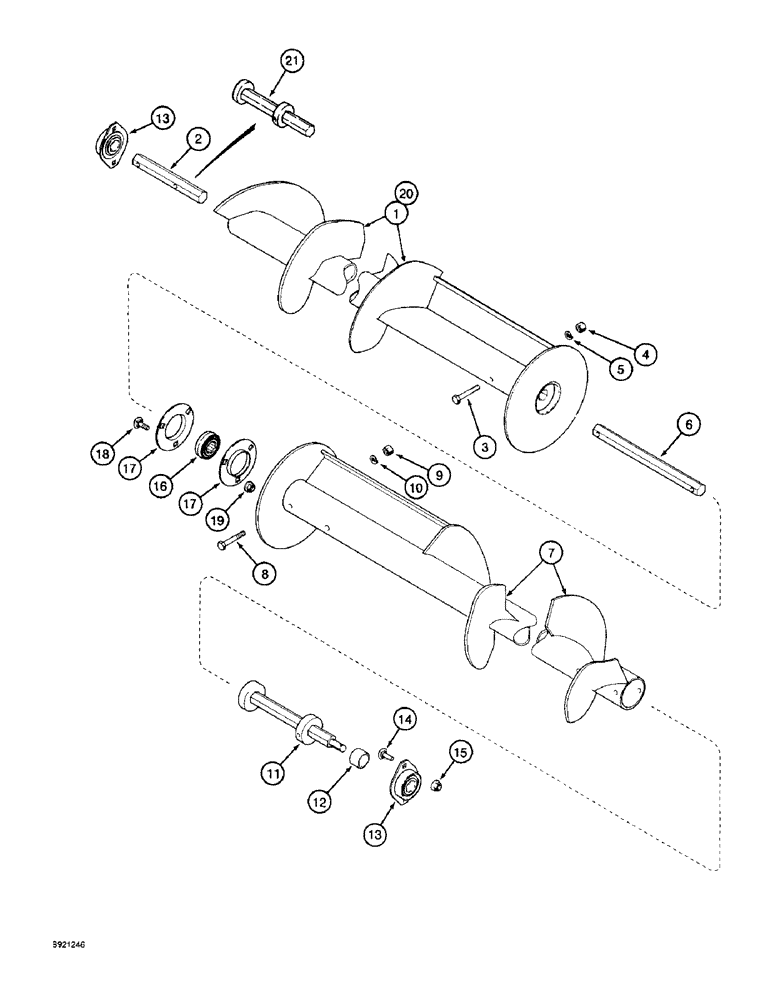

Запчасти Case IH 1800 (9A-14) - CROSS AUGER AND KICKER, AUGER (13) - PICKING SYSTEM

1

217722C1

AUGER

- cross, left-hand, with intenal hubs in left-hand end, used with bar 217738C1, item 2, if used

1шт.

2

217738C1

BAR ASSY.

BAR - cross auger, left-hand, used with auger 217722C1, item 1, if used

1шт.

3

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

217736C2

BAR ASSY.

BAR - cross auger, center

1шт.

7

217727C2

AUGER

- cross, right-hand

1шт.

8

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

3шт.

9

425-106

NUT,3/8"-16, Cl 5

3шт.

10

492-11038

LOCK WASHER,3/8"

3шт.

11

1999057C1

SHAFT ASSY.

SHAFT - cross auger shaft, right-hand

1шт.

12

1999073C1

SPACER

- auger

1шт.

13

217935C91

BEARING HOUSING,4.4375" OD x 0.8125"

BEARING - flush mount

2шт.

14

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

211587C91

BALL BEARING,1.586" ID x 62 mm OD x 24 mm

BEARING - ball

1шт.

17

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing retainer (Replaces flange 565631R1)

2шт.

18

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

3шт.

19

231-5146

FLANGE NUT,3/8"-16

3шт.

20

1541315C1

AUGER

- cross, left-hand, without internal hubs in left-hand end, if used, used with bar 1541306C1, item 21

1шт.

21

1541306C1

BAR ASSY.

BAR - cross auger, left-hand, with external hubs, if used, used with auger 1541315C1, item 20

1шт.
