(9A-16) - CROSS AUGER AND KICKER, AUGER HOUSING

Запчасти Case IH 1800 (9A-16) - CROSS AUGER AND KICKER, AUGER HOUSING (13) - PICKING SYSTEM

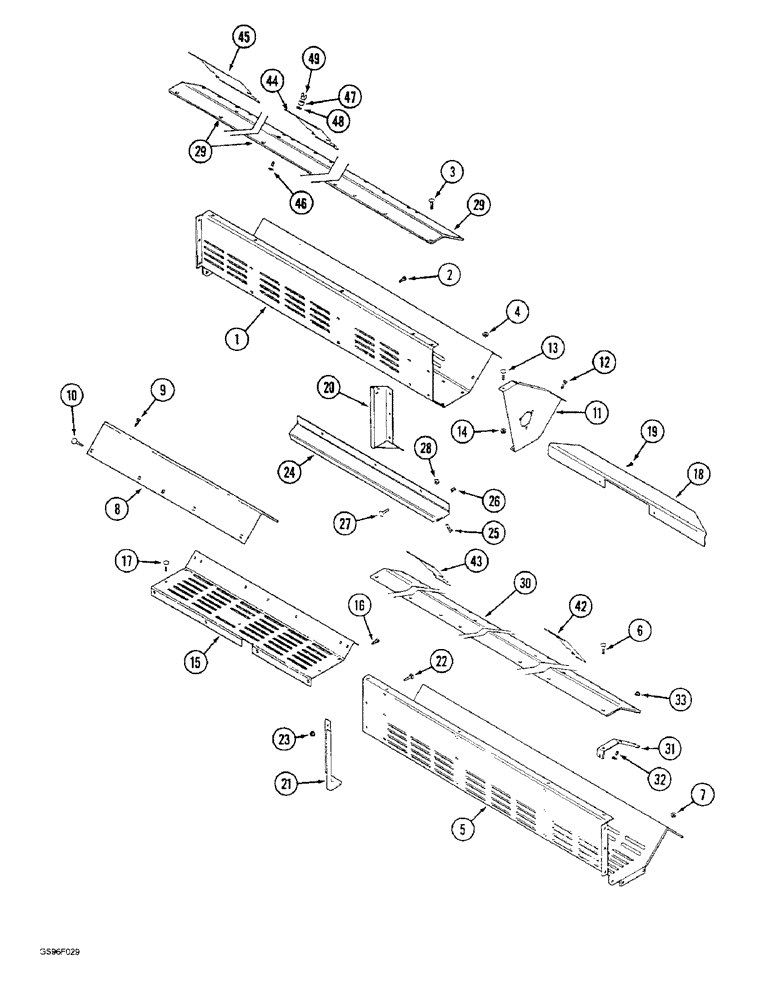

Схема запчастей Case IH 1800 - (9A-16) - CROSS AUGER AND KICKER, AUGER HOUSING (13) - PICKING SYSTEM
13
27
44
29
19
16
12
29
33
2
31
30
8
3
47
24
26
21
28
9
6
7
42
49
43
46
17
4
23
5
14
20
18
48
10
32
15
1
25
22
45
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1251232C1

HOUSING

SECTION - auger housing, left-hand, includes decal

1шт.

2

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

13шт.

3

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

12шт.

4

231-5146

FLANGE NUT,3/8"-16

12шт.

5

1251233C1

HOUSING

SECTION - auger housing, right-hand, includes decal

1шт.

6

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

12шт.

7

231-5146

FLANGE NUT,3/8"-16

12шт.

8

217791C1

HOUSING

SECTION - center

1шт.

9

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

2шт.

10

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

5шт.

11

217792C1

HOLDER

SUPPORT - bearing, center

1шт.

12

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

1шт.

13

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

14

231-5146

FLANGE NUT,3/8"-16

5шт.

15

217796C2

HOUSING

SECTION - auger housing, center

1шт.

16

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

8шт.

17

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

18

220956C2

PLATE

- boll edge

1шт.

19

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch

2шт.

20

220978C1

HOLDER

SUPPORT - opening, left-hand

1шт.

21

220979C1

HOLDER

SUPPORT - opening, right-hand

1шт.

22

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

8шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

24

220977C1

HOLDER

SUPPORT - opening, upper

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

27

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

3шт.

28

231-5146

FLANGE NUT,3/8"-16

3шт.

29

217846C1

HOLDER

SECTION - auger, front, left-hand

1шт.

30

217845C1

HOLDER

SECTION - auger, front, right-hand

1шт.

31

217863C1

HOLDER

SUPPORT - auger sheet

10шт.

32

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

30шт.

33

231-5146

FLANGE NUT,3/8"-16

40шт.

42

219816C1

HOLDER

SECTION - auger cover

1шт.

43

219817C1

HOLDER

SECTION - auger cover

4шт.

44

219818C1

HOLDER

SECTION - auger cover

7шт.

45

219819C1

HOLDER

SECTION - auger cover

4шт.

46

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

10шт.

47

425-106

NUT,3/8"-16, Cl 5

10шт.

48

492-11038

LOCK WASHER,3/8"

10шт.

49

129-410

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC (Replaces nut 126032)

10шт.
