(9B-04) - FAN DRIVE, USED WITH 8 INCH DIAMETER IDLER PULLEY

Запчасти Case IH 1800 (9B-04) - FAN DRIVE, USED WITH 8 INCH DIAMETER IDLER PULLEY (15) - HANDLING SYSTEM

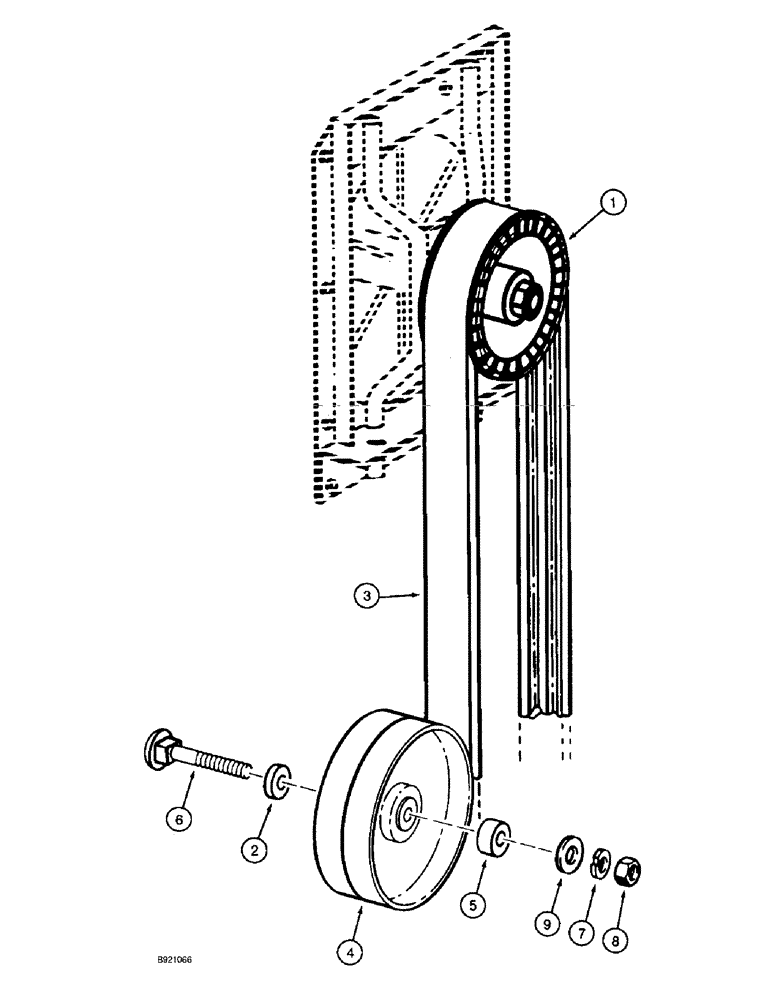

Схема запчастей Case IH 1800 - (9B-04) - FAN DRIVE, USED WITH 8 INCH DIAMETER IDLER PULLEY (15) - HANDLING SYSTEM
6
1
8
2
5
4
7
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PULLEY - fan, see page 9B-3

1шт.

2

1278050C1

SPACER

- front, idler pulley

1шт.

See Figure Note.

1шт.

3

1288899C5

V-BELT,16.00 mm W x 1875.82 mm L, 3 Ribs

Fan Drive, Used with both 8 and 10 inch Diameter Pulleys, Replaces Belt 1288899C4 16.00 mm W x 1875.82 mm L, 3 Ribs

1шт.

4

187388C91

PULLEY

- fan engage idler, 8 inch diameter

1шт.

See Figure Note.

1шт.

5

1278051C1

SPACER

- rear, idler pulley

1шт.

See Figure Note.

1шт.

6

598822R1

BOLT

BOLT - carriage, 5/8 NC x 3-3/4 inch

1шт.

See Figure Note.

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

See Figure Note.

1шт.

8

425-1010

NUT,5/8"-11, G5

1шт.

See Figure Note.

1шт.

9

495-81052

WASHER,0.91" ID x 1.25" OD x 0.12" Thk

- flat, 29/32 x 1-1/4 x 7/64 inch

1шт.

See Figure Note.

1шт.
