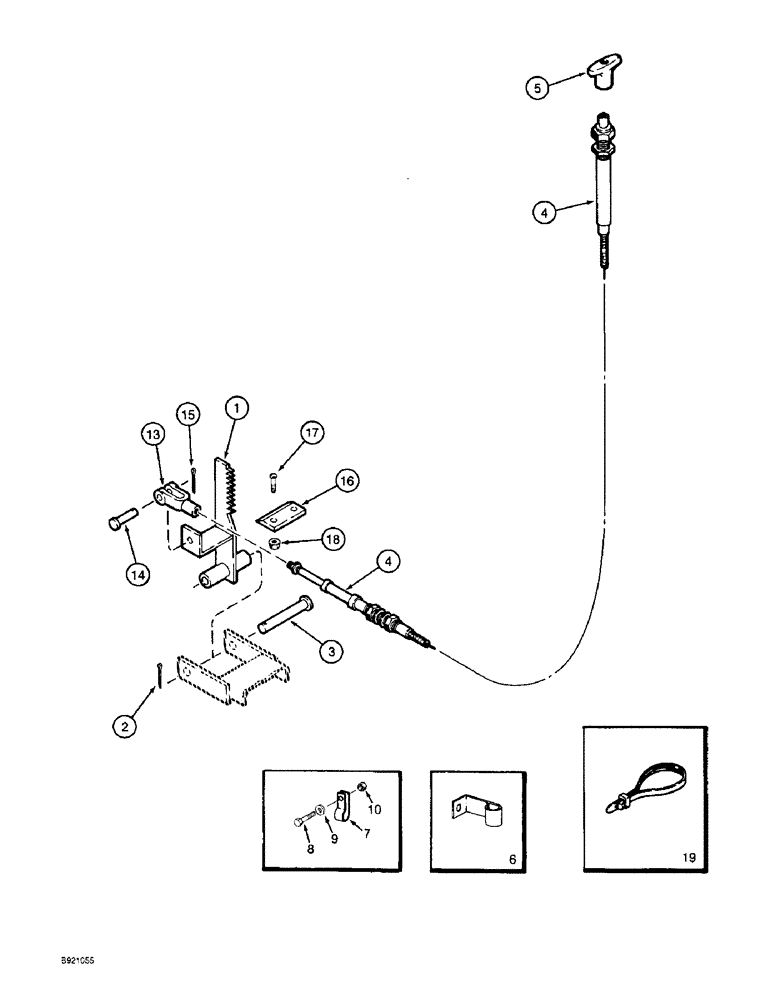

Запчасти Case IH 1800 (7-16) - PARKING BRAKE AND CONTROLS, USED WITH MASTER BRAKE ON PAGE 7-9 (5.1) - BRAKES

1

1277202C1

PLATE

SECTOR - parking brake, used with item 40, brake actuator shown on page 7-9

1шт.

2

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

3

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN - headed, 3/8 x 4 inch (Replaces pin PO15464)

1шт.

4

166149C91

CABLE

ASSEMBLY - parking brake, 125 inch (3175 mm) long

1шт.

5

170273C1

HANDLE

- control

1шт.

6

370383R1

CLIP

CLAMP - brake cable

1шт.

7

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

13

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10 NF

1шт.

14

427-3071

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch, hardened

1шт.

15

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

16

77802C1

ORIFICE RING

BAR - parking brake ratchet

1шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

19

702093C1

CABLE TIE

STRAP - tie

5шт.
