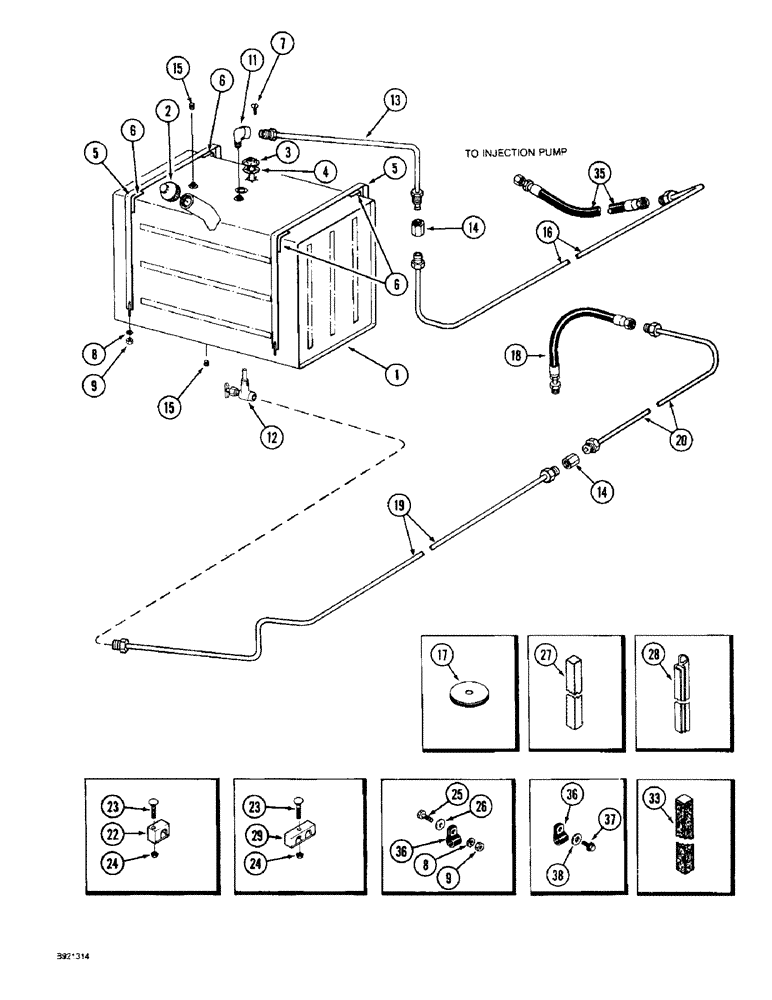

Запчасти Case IH 1800 (3-10) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

1339069C3

FUEL TANK

TANK ASSEMBLY - fuel, 89 gallon

1шт.

2

23995DC

FILLER CAP

CAP - vented, fuel tank filler

1шт.

3

121810C1

ELECTRICAL GAUGE

SENDER - fuel level gauge

1шт.

4

168515C1

GASKET,3.05mm Thk

- fuel tank sending unit

1шт.

5

1278531C1

STRAP

- fuel tank

2шт.

6

NSS

NOT SOLD SEPARAT

STRIP - tank support lining, 9 inch (229 mm) long, cut from bulk seal 990541R1 below

8шт.

7

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

2шт.

12

390069R91

SHUT-OFF VALVE

VALVE - fuel shut-off

1шт.

13

87746C3

FUEL TUBE,0.375" OD

TUBE - fuel tank return

1шт.

14

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING - 5/8-18 inch inverted flare

2шт.

15

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket, pipe, 1/4-18 inch

2шт.

16

1982257C2

FUEL TUBE,0.375" OD

TUBE - fuel return

1шт.

17

1329460C1

GROMMET

- tube

1шт.

18

1329284C1

HOSE

- fuel, 12 inch (305 mm) long, if used

1шт.

18

140701A1

FUEL HOSE,9.52 mm ID x 150.00 mm, SAE 30R7

If Used 9.52 mm ID x 150.00 mm, SAE 30R7

1шт.

19

1338814C1

TUBE

- supply, fuel tank

1шт.

20

1338813C3

TUBE

- fuel supply, 45 degree double flare on both ends, if used

1шт.

20

137602A1

FUEL TUBE,0.375 mm OD, 797, 64 mm Length

TUBE - fuel supply, one bead end and one 45 degree flare end, if used

1шт.

22

183821C1

CLAMP

- tube, single

1шт.

23

434-420

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT - carriage, 1/4 NC x 1-1/4 inch

5шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

26

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - fuel tank foam, 18 inch (457 mm) long, cut from bulk seal 73215C1 below

2шт.

27

NSS

NOT SOLD SEPARAT

SEAL - fuel tank foam, 22 inch (559 mm) long, cut from bulk seal 73215C1 below

2шт.

27

NSS

NOT SOLD SEPARAT

SEAL - fuel tank foam, 5-1/8 inch (130 mm) long, cut from bulk seal 1264566C2 below

2шт.

28

NSS

NOT SOLD SEPARAT

SEAL - fuel tank, 5-5/16 inch (135 mm) long, cut from bulk seal 1263038C1 below

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - fuel tank, 17-23/32 inch (450 mm) long, cut from bulk seal 1263038C1 below

2шт.

29

183825C1

CLAMP

- tube, double

4шт.

33

204023C1

SEALING STRIP

- strip, 46-1/2 inch (1181 mm) long

2шт.

35

1982258C1

HOSE

- return, fuel

1шт.

36

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

Hose, Closed coated 13/16", Insul, 3/8" Bolt

2шт.

37

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

1шт.

38

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

1шт.

990541R1

FIXING STRIP

SEAL - bulk, lining, 1-1/4 (32) wide x 600 inch (15240 mm) long

1шт.

73215C1

GASKET

SEAL - bulk, foam, adhesive-backed, 48 inch (1219 mm) long

1шт.

1264566C2

GASKET

SEAL - bulk, foam, adhesive-backed, 48 inch (1219 mm) long

1шт.

1263038C1

SEAL,7620mm L

- bulk, 300 inch (7620 mm) long

1шт.
