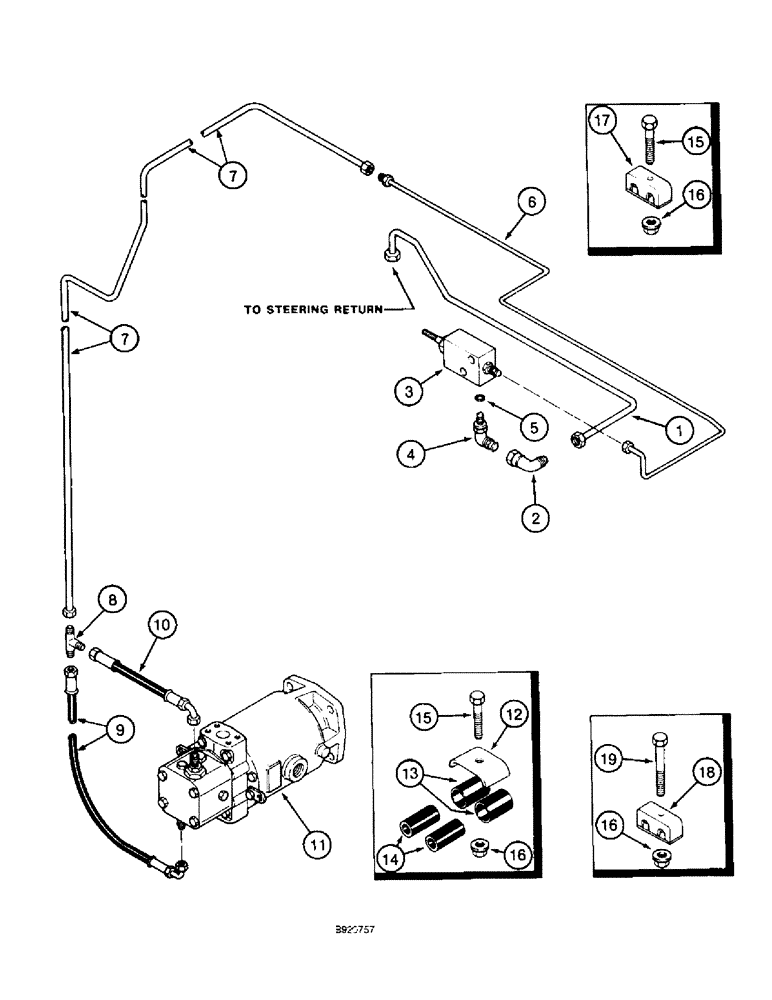

Запчасти Case IH 1800 (6-10) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

1

1285346C4

TUBE

- return

1шт.

2

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - Foot-N-Inch, parts list page 6-15

1шт.

4

218-5335

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-20, O-Ring

- 90 degree, 9/16-18 flare x 1/2-20 inch adjustable O-ring boss (Replaces elbow 534526R1)

1шт.

6

1285386C5

TUBE

- supply

1шт.

7

1285431C3

TUBE

- supply

1шт.

8

218-591

TEE,7/16"-20, 37 Degree

- 7/16-20 inch flare branch x flare x flare

1шт.

9

175760C2

HYDRAULIC HOSE,6.35mm ID x 254mm L, SAE 100R2

HOSE - 10 inch (254 mm) long

1шт.

10

87107C1

HOSE,6.35 mm ID x 152.4 mm, SAE 100R2 CLASS 8

1шт.

11

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, parts list page 6-27

1шт.

12

165602C1

CLAMP

- tube

1шт.

13

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

1шт.

14

163490C1

RUBBER INSULATOR

INSULATOR - rubber, 3/8 ID x 1-13/64 inch long

1шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

17

183824C1

CLAMP

- tube

1шт.

18

1301178C1

CLAMP

- tube

1шт.

19

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

15

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
