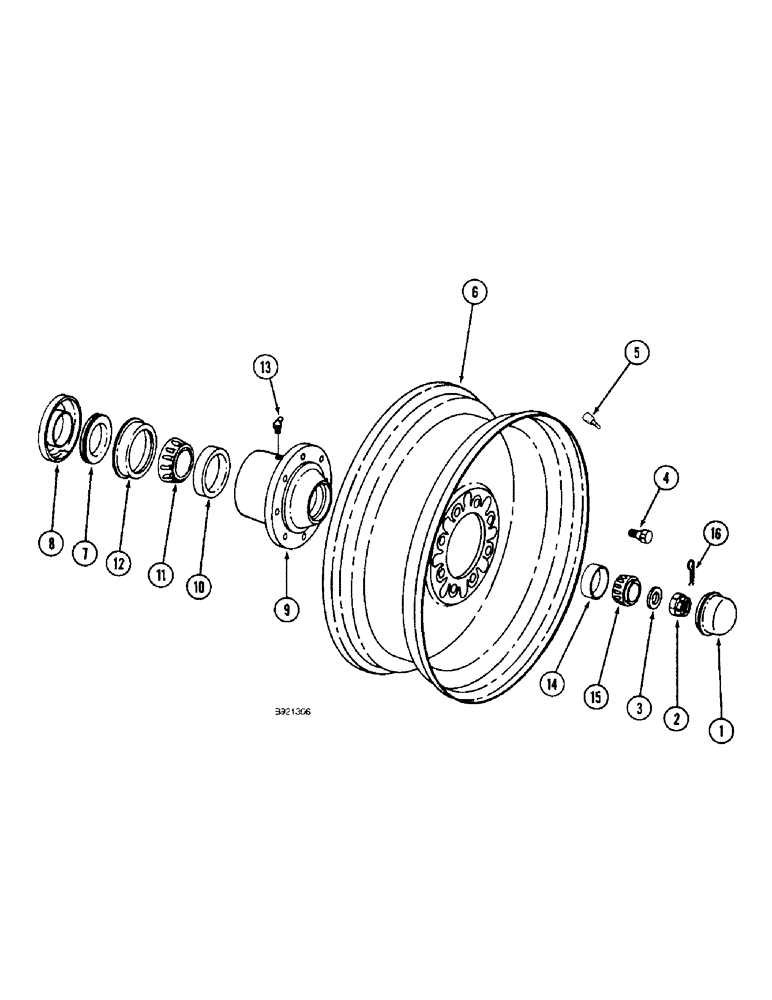

Запчасти Case IH 1800 (5-20) - WHEEL AND HUB - REAR STEER, PRIOR TO P.I.N. JJC133070 (04) - STEERING

1

189425C1

HUB CAP

CAP - wheel hub

2шт.

2

1259683C1

NUT

- hex, slotted, 30 mm - 1.5

2шт.

3

896-12030

WASHER,33mm ID x 56mm OD x 5mm Thk

- flat, 33 x 56 x 5 mm, hardened

2шт.

4

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

- hex flange, special

16шт.

5

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter

2шт.

6

188759C2

RIM

WHEEL - 10 x 24 inch, for 11.25 x 24 inch tire

2шт.

7

491641C1

SEAL

- wheel hub

2шт.

8

1259522C1

SHIELD

- wheel dust

2шт.

9

1259528C1

HUB

ASSEMBLY - wheel

2шт.

10

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - bearing, tapered roller, inner (Replaces cup 13390D)

1шт.

11

ST753B

BEARING ASSY,66.67mm ID x 22mm W

BEARING - tapered roller, inner, 2-5/8 inch ID

1шт.

12

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

RETAINER - hub seal

1шт.

13

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

1шт.

14

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD, outer

1шт.

15

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING - tapered roller, outer

1шт.

16

732-6350

COTTER PIN,M6.3 x 50

PIN, SPLIT (COTTER), M6.3 x 50

2шт.
