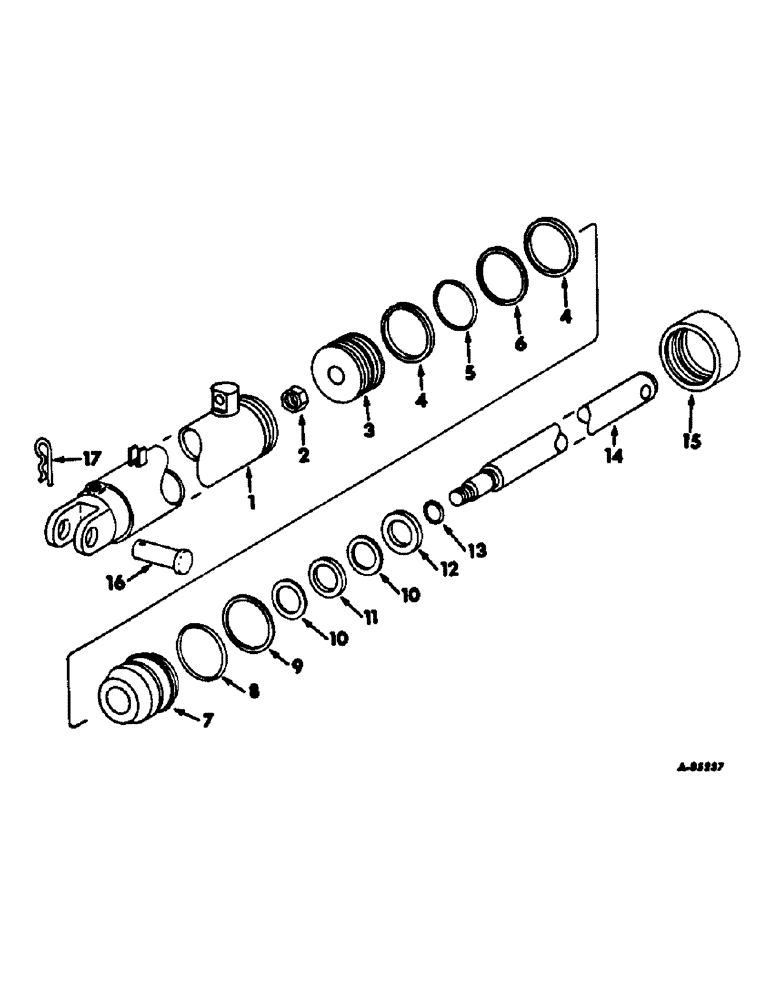

Запчасти Case IH 95 (10-16) - HYDRAULICS, LIFT HYDRAULIC CYLINDER, 3-1/2 X 50-13/16 INCH DOUBLE ACTING (07) - HYDRAULICS

59898C92

CYLINDER ASSY, 3-1/2 x 50-13/16 in. double acting hydraulic lift

1шт.

1

59927C92

BODY ASSY, hyd cylinder

1шт.

2

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1/2-1/8-12 hex. lock

1шт.

3

387354R1

PISTON

1шт.

4

383005R1

RING

piston bearing

2шт.

5

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32 piston

3шт.

6

381086R1

RING

SEAL RING, piston

1шт.

7

387353R1

END

HEAD, front

1шт.

7

1272149C92R

REMAN-HYD CYLINDER

95 INTERNATIONAL HARVESTER COTTON HARVESTER, 95 INTERNATIONAL HARVESTER FINGER HEAD COTTON HARVESTER, Both HEAD, front, Reman for New PN 387353R1

1шт.

7

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

8

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16 frt head static seal

1шт.

9

381088R1

BACK-UP RING

frt head back-up

1шт.

10

387362R2

BACK-UP RING

WASHER, piston rod back-up

2шт.

11

403995R1

RING

quad, piston rod

1шт.

12

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

13

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8 piston rod seal

1шт.

14

59929C1

ROD, piston

1шт.

15

381089R1

RING

frt head retaining

1шт.

16

60909C1

PIN

cylinder pivot

1шт.

17

520175R1

CLIP

PIN, quick attachable cotter

1шт.

387881R92

SEAL KIT

KIT, cylinder service, Consists of ref nos. 4, 5, 6, 8, 9, 10, 11 12 and 13

1шт.
