(3-02) - FUEL INJECTION SYSTEM 6TA-590 ENGINE

Запчасти Case IH 1822 (3-02) - FUEL INJECTION SYSTEM 6TA-590 ENGINE (02) - FUEL SYSTEM

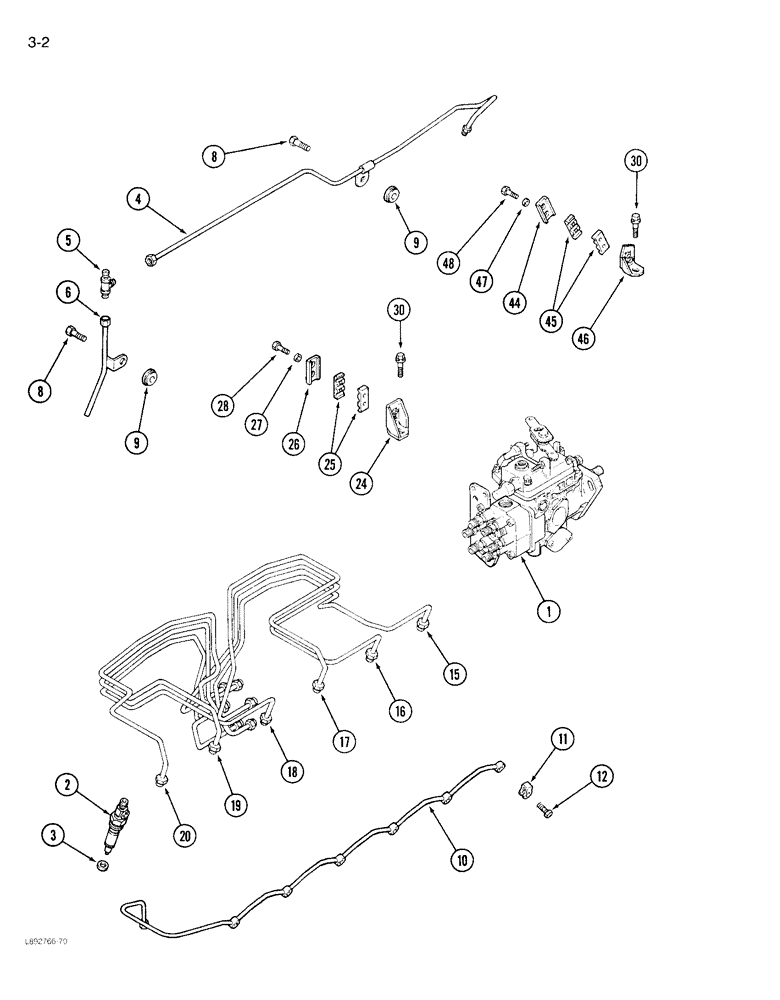

Схема запчастей Case IH 1822 - (3-02) - FUEL INJECTION SYSTEM 6TA-590 ENGINE (02) - FUEL SYSTEM
19
11
27
26
47
9
17
1
30
28
16
6
15
8
20
5
18
48
30
4
2
9
3
45
10
44
8
24
46
25
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See page 3-11)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See page 3-15)

6шт.

3

J900808

SEAL

GASKET - injector

6шт.

4

J905709

FUEL TUBE

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union 7/16"-24 thd

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

2шт.

9

J900267

SEAL

CUSHION - mounting, tube

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J914043

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 1 cylinder (Replaces J907272)

1шт.

16

J914044

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 2 cylinder (Replaces J907272)

1шт.

17

J914090

FUEL TUBE,2 mm ID x 6.4 mm OD

TUBE - fuel injector, No. 3 cylinder (Replaces J907274)

1шт.

18

J914045

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 4 cylinder (Replaces J907275)

1шт.

19

J914046

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 5 cylinder (Replaces J907276)

1шт.

20

J914091

FUEL TUBE,2 mm ID x 6.4 mm OD

TUBE - fuel injector, No. 6 cylinder (Replaces J907277)

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube

2шт.

24

J917777

BRACE

- tube (Replaces J906584)

1шт.

25

J917747

CLAMP

ISOLATOR - tube (Replaces J914339)

2шт.

26

J904519

SUPPORT

PLATE - clamp

1шт.

27

J903723

WASHER

- lock, 5 mm

2шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, (Replaces J903609) Hex Hd, M5 x .8 x 20, w/LW

2шт.

30

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, Hex Flg Hd, M8 x 1.25 x 25

2шт.

A77529

BRACKET

ASSEMBLY - fuel tube

1шт.

44

J904519

SUPPORT

PLATE - clamp

1шт.

45

J917747

CLAMP

ISOLATOR - tube (Replaces J914339)

2шт.

46

J917778

BRACE

- fuel tube (Replaces J906651)

2шт.

47

J903723

WASHER

- flat

2шт.

48

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, (Replaces J903609) Hex Hd, M5 x .8 x 20, w/LW

2шт.
