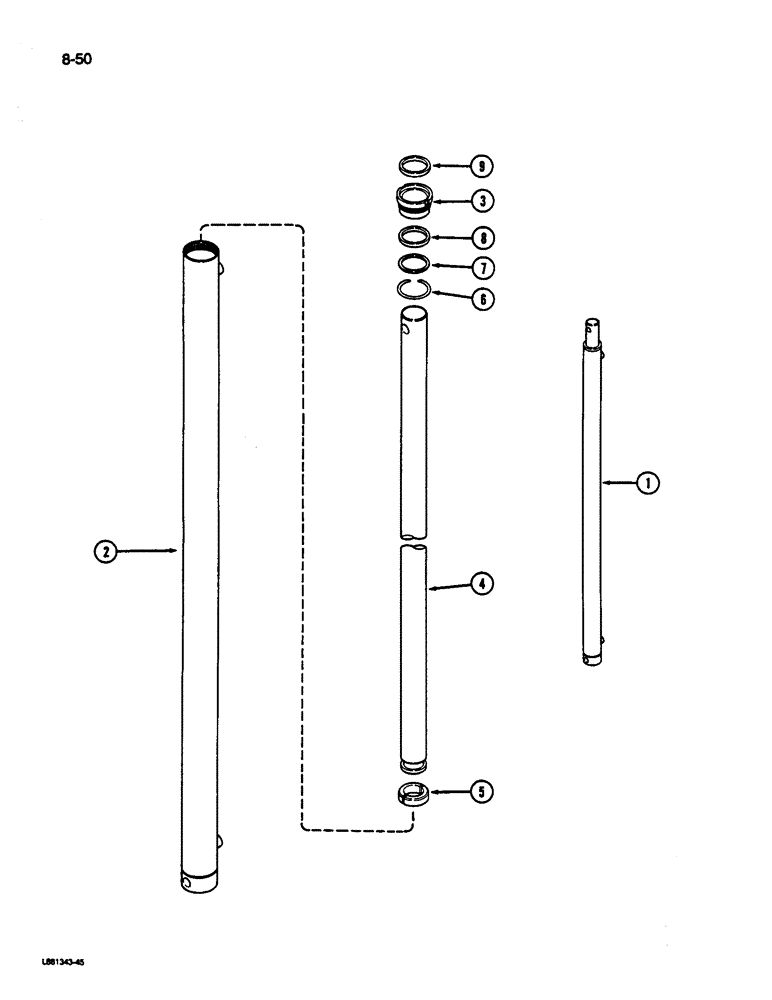

Запчасти Case IH 1822 (8-50) - BASKET LIFT SLAVE CYLINDER (07) - HYDRAULICS

1

1282195C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 2-1/2 x 72 inch, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

1286335C1

CYLINDER END CAP

HEAD - front

1шт.

4

1286331C1

PISTON ROD

ROD - piston

1шт.

5

1286332C1

RETAINER

- piston rod (2 halves)

1шт.

6

1286333C1

CIRCLIP

RING - seal retainer

1шт.

7

1286334C1

WASHER

WASHER - seal backup

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod U-cup

1шт.

Part of O-ring and seal service kit P/N 1282389C1

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-ring and seal service kit P/N 1282389C1

1шт.

1282389C1

SEAL KIT

KIT - o-ring and seal service, Includes: Ref. 8 and 9

1шт.
