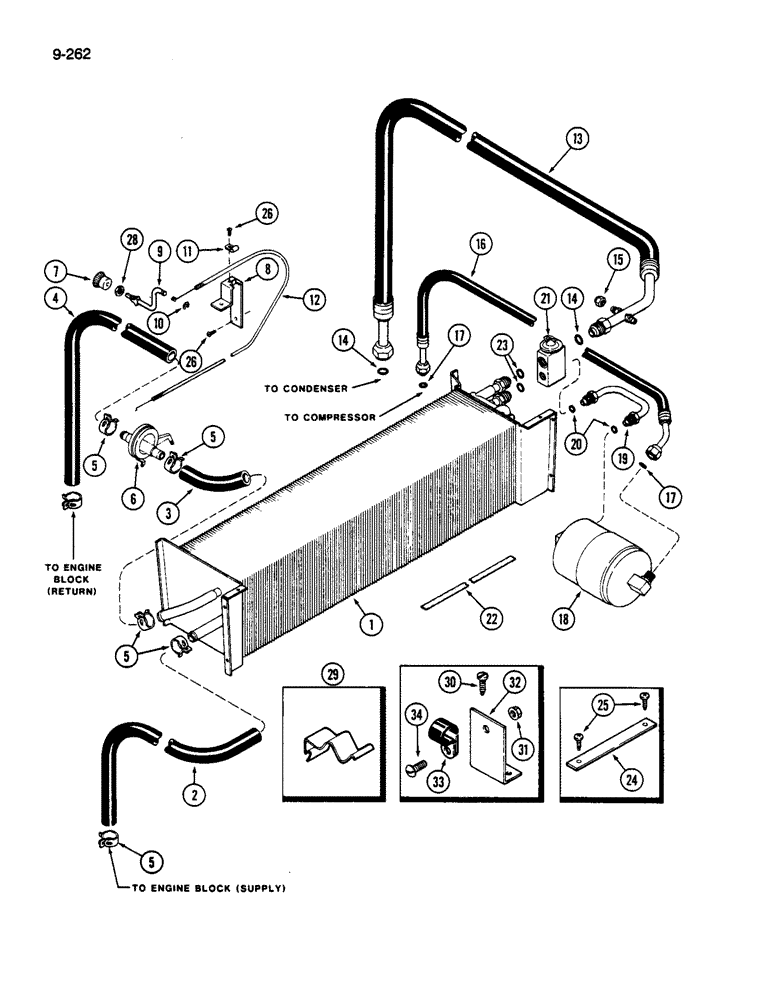

Запчасти Case IH 1822 (9-262) - HEATER AND AIR CONDITIONING, CAB CONNECTIONS (10) - CAB & AIR CONDITIONING

1

135777C2

CORE

EVAPORATOR CORE - cab (Order 79675C92)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - heater to chassis junction, 130 inch (3302 mm) (Order 1255859C1, Serial Range: cut-length)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater to valve (Return) 5 inch (127 mm) (Order 117724C1, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater valve to chassis junction (Return) 115 inch (2 921 mm) (Order 117724C1, Serial Range: cut-length)

1шт.

5

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Spring wire Type E (Replaces 313318R1) #24

6шт.

6

3234102R92

VALVE

- heater control

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1283445C2

BRACKET

SUPPORT - cable, heater valve control

1шт.

9

1281809C1

ARM

- heater control

1шт.

10

379310R1

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

2шт.

11

1283334C1

CLIP

- mounting, heater cable

1шт.

12

1276220C3

CABLE

- control, heater valve

1шт.

13

1276164C1

HOSE

- evaporator discharge

1шт.

14

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch

2шт.

15

118188C1

CAP

- seal

1шт.

16

1276163C2

HOSE

ASSEMBLY -, Serial Range: drier-cab

1шт.

17

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

18

REF

INSTRUCTION

RECEIVER-DRIER - cab (See Page 9-257)

1шт.

19

1250438C1

TUBE ASSY.

TUBE ASSEMBLY - receiver-drier

1шт.

20

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

21

98370C2

VALVE

- expansion (Replaces 118321C1)

1шт.

Used to wrap expansion valve and exposed end of discharge hose.

1шт.

Part of evaporator core and expansion valve assembly P/N 1250464C2

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - insulation, 96 inch (2440 mm) (Order 118468C1, cut to length)(See Note)

1шт.

23

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch

1шт.

Used to wrap expansion valve and exposed end of discharge hose.

1шт.

Part of evaporator core and expansion valve assembly P/N 1250464C2

1шт.

23

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch

1шт.

24

1321363C2

STRAP

- retaining, hose

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

27048R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - No. 10-16 x 3/8

3шт.

28

109311H

JAM NUT

- 7/16-28, heater control arm

1шт.

29

3233746R1

CLIP

- cable

1шт.

30

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

31

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

32

98158C1

BRACKET

- heater valve support

1шт.

33

27291R1

CLAMP

- 1 inch diameter closed

1шт.

34

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

1974632C1

EVAPORATOR

CORE AND EXPANSION VALVE ASSEMBLY, Includes: Ref. 21 and 23 and with the following

1шт.

1250463C2

GROMMET

- evaporator tubes (See Page 9-261)

1шт.

1250464C2

GROMMET

- heater tubes (See page 9-261)

1шт.
