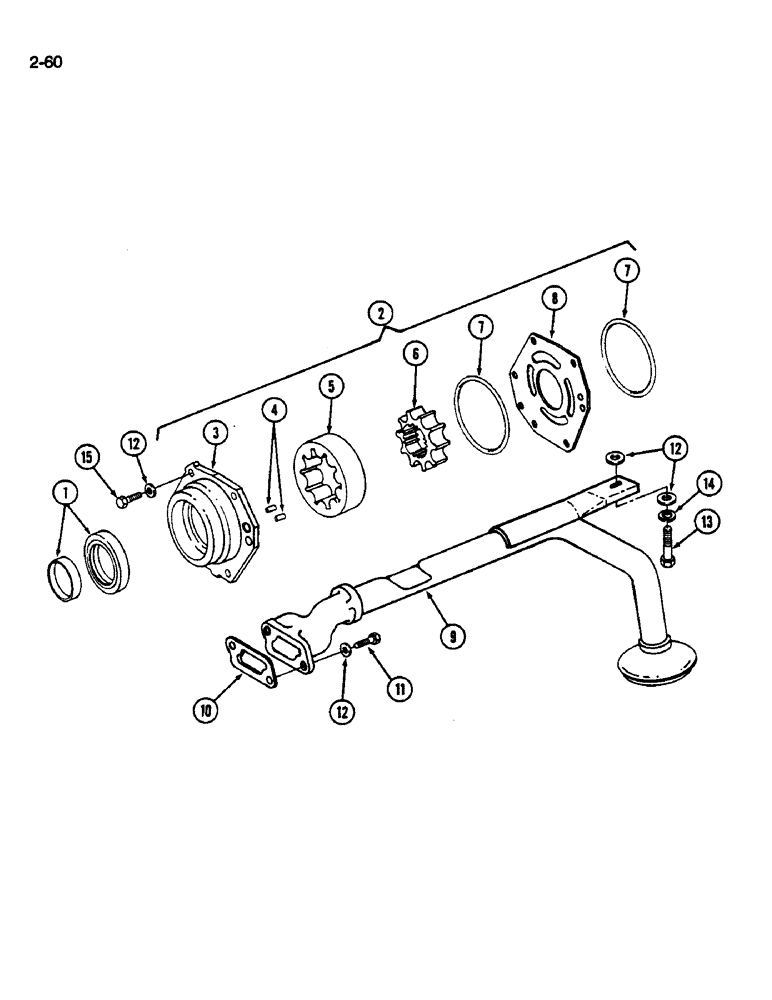

Запчасти Case IH 1822 (2-60) - LUBRICATING OIL PUMP AND INLET TUBE D466 AND DT466C DIESEL ENGINE (01) - ENGINE

1

690437C91

GASKET KIT

KIT - front oil seal and wear sleeve

1шт.

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

2

1808832C91

PUMP

KIT - oil pump service

1шт.

2

244645A1R

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

2

244645A1C

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - oil pump

1шт.

4

680482C1

PIN

PIN - dowel, hardened, 5/16 x 5/8 inch

2шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - outer

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR - inner

1шт.

7

675860C1

RING

O-RING - oil pump housing

1шт.

8

1802879C1

PLATE

PLATE - oil pump housing (Replaces 675365C1)

1шт.

9

690571C1

TUBE

TUBE ASSEMBLY - oil pump inlet (D466 Engine for 1822 prior to P.I.N. 57804, DT466 Engine for 1844 prior to P.I.N. 467761)

1шт.

9

1806037C1

TUBE

TUBE ASSEMBLY - oil pump (D466 Engine for 1822 P.I.N. 57804 and after, DT466C Engine for 1844 P.I.N. 467761 and after)

1шт.

10

671821C1

GASKET

GASKET - oil pump inlet tube (For tube, 690571C1)

1шт.

10

1802867C1

GASKET

GASKET - oil pump inlet tube (For tube, 1806037C1)

1шт.

11

25232R1

BOLT,Hex, 5/16" - 18 x 2", Gr 8

BOLT - hex, 5/16 NC x 2 inch, Grade 8

2шт.

12

27326R1

WASHER,.344" x 11/16" x .089", HDN

WASHER - hardened, 5/16 inch

10шт.

13

25492R1

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

BOLT - hex, 5/16 x 7/8 inch, Grade 8

1шт.

14

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

27971R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

BOLT - prevailing torque, 5/16 NC x 1-1/8 inch

6шт.
