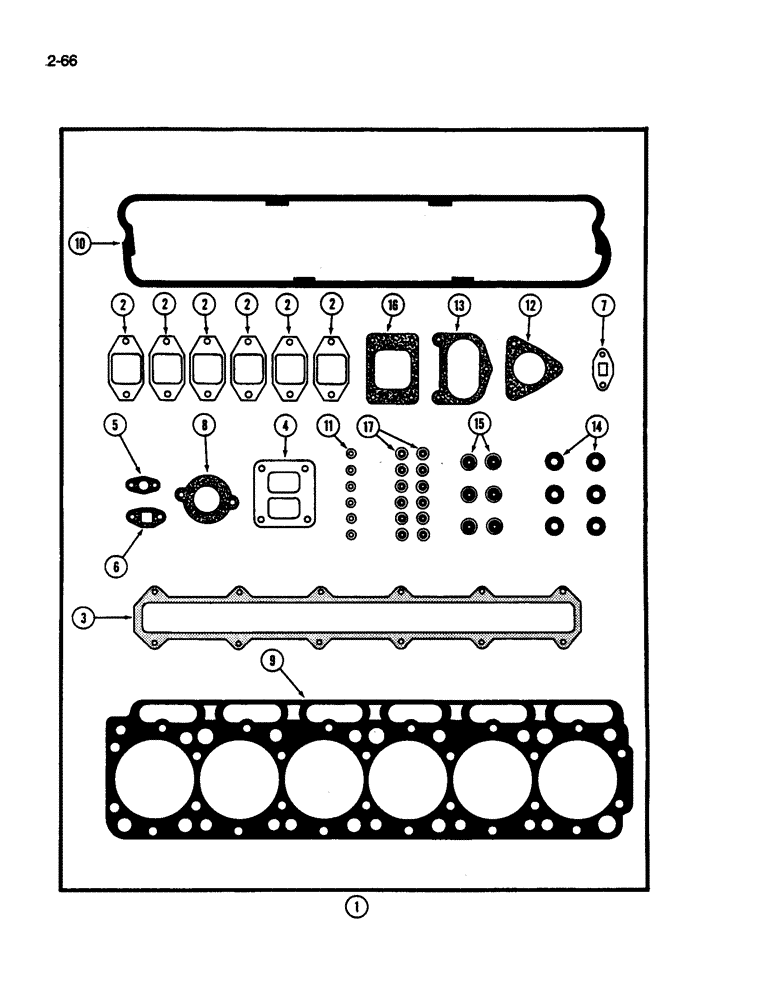

Запчасти Case IH 1822 (2-66) - GASKET KITS, D466 AND < 1DT466C DIESEL ENGINE (01) - ENGINE

1

1808973C92

GASKET

- cylinder head (Replaces 674398C96)

1шт.

2

688928C1

MANIFOLD GASKET

- exhaust manifold

6шт.

3

682199C1

MANIFOLD GASKET

- intake manifold

1шт.

4

670073C1

GASKET

- turbocharger

1шт.

5

253660R1

GASKET

- turbocharger oil inlet tube

1шт.

6

670079C1

GASKET

- oil drain tube

1шт.

7

687903C1

GASKET

- oil drain tube

1шт.

8

675384C1

GASKET

- thermostat housing

1шт.

9

676108C2

CYLINDER HEAD GASKET

- cylinder head

1шт.

10

675109C2

GASKET

- valve cover

1шт.

11

675477C1

GASKET

- injector nozzle

6шт.

12

673973C4

GASKET

- valve cover breather

1шт.

13

686181C1

GASKET

- intercooler air inlet elbow

1шт.

14

682810C1

RING

GROMMET - injection dust seal

6шт.

15

677692C1

GROMMET

- valve cover

6шт.

16

673341C1

MANIFOLD GASKET

- intake manifold elbow

1шт.

17

681234C1

BUSHING

SHIELD - oil rotator

12шт.

1800169C92

ENGINE

REPLACEMENT SERVICE ENGINE - DT466C engine (Consists of all engine parts except the following: alternator, generator fan blades and belt, muffler, and exhaust pipe (1844 Cotton Picker)

1шт.

Skeleton engine, order 687203C95. A reman engine is also available, 106834A1R.

1шт.

1803377C92

ENGINE

REPLACEMENT SERVICE ENGINE - D466 engine (Consists of all engine parts except the following: alternator, generator fan blades and belt muffler, and exhaust pipe (1822 Cotton Picker)

1шт.

Skeleton engine, order 674961C94.

1шт.

84589327R

REMAN-BASIC ENGINE

D-466 Reman Basic Engine Less Fuel System (1822 Cotton Picker)

1шт.

84589327C

CORE-BASIC ENGINE

Return Number

1шт.
