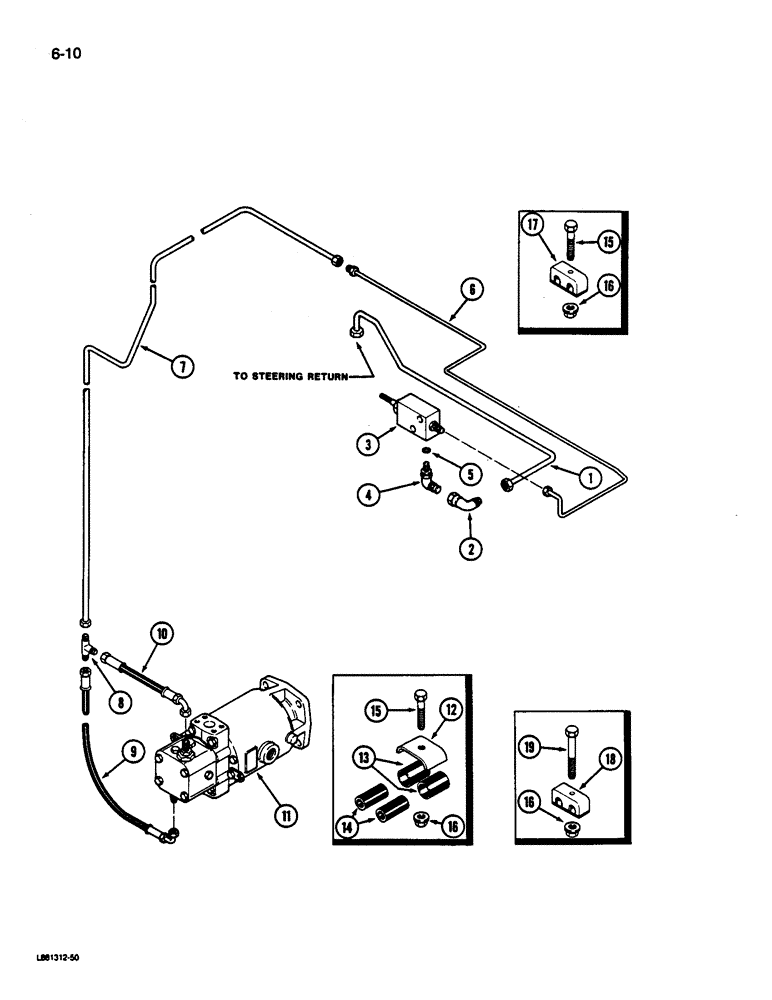

Запчасти Case IH 1822 (6-10) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

1

1285346C4

TUBE

- return

1шт.

2

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 3/8 tube, 9/16-18 x 9/16-18 inch thread

1шт.

3

REF

INSTRUCTION

VALVE - foot-n-inch (See Page 6-15)

1шт.

4

534526R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-20, O-Ring

- 90 degree adjustable, 3/8 inch tube

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

6

1285386C5

TUBE

- supply

1шт.

7

1285431C3

TUBE

- supply

1шт.

8

9402979

TEE,7/16"-20, 37 Degree

- three way, 1/4 tube 7/16-20 x 7/16-20 x 7/16-20 inch thread

1шт.

9

175760C1

HOSE ASSY.

HOSE - foot-n-inch

1шт.

10

87107C1

HOSE,6.35 mm ID x 152.4 mm, SAE 100R2 CLASS 8

1шт.

11

REF

INSTRUCTION

MOTOR - hydrostatic (See Page 6-33)

1шт.

12

165602C1

CLAMP

- tube

1шт.

13

163489C1

STRIP

- clamp, 1/4 inch

1шт.

14

163490C1

RUBBER INSULATOR

STRIP - clamp, 3/8 inch

1шт.

15

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

16

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, 1/4 inch NC

1шт.

17

183824C1

CLAMP

- tube

1шт.

18

1301178C1

CLAMP

- tube

1шт.

19

180044

SPRING

- hex, 1/4 NC x 2 inch

1шт.
