(9D-08) - OPERATOR SEAT AND SUPPORTS

Запчасти Case IH 1844 (9D-08) - OPERATOR SEAT AND SUPPORTS (10) - CAB & AIR CONDITIONING

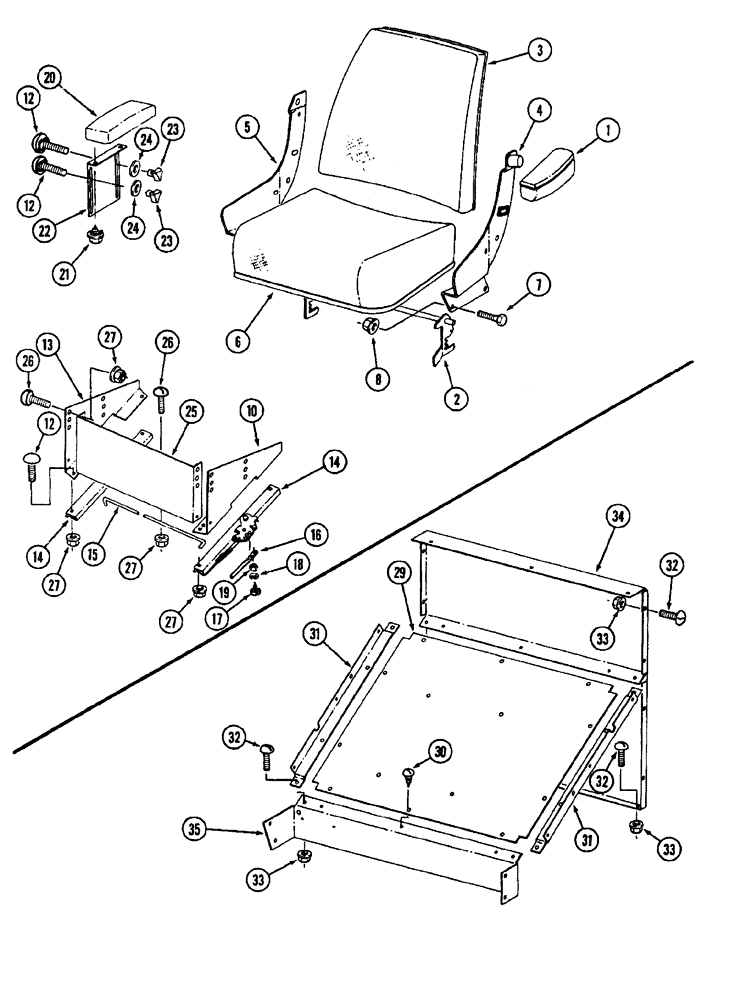

Схема запчастей Case IH 1844 - (9D-08) - OPERATOR SEAT AND SUPPORTS (10) - CAB & AIR CONDITIONING
5
27
12
7
32
1
24
24
13
35
34
14
23
3
33
31
20
31
21
4
32
30
16
27
18
23
27
15
12
26
10
19
32
25
22
12
33
26
14
29
8
33
2
6
17
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1321294C92

SEAT

ASSEMBLY - operator

1шт.

1

180919C1

CUSHION

- arm rest, left

1шт.

2

1310828C1

SUPPORT

ASSEMBLY - seat tilt

1шт.

3

180918C1

CUSHION

ASSEMBLY - backrest

1шт.

4

1310835C1

BRACKET

- seat side, left

1шт.

5

1310830C1

BRACKET

- seat side, right

1шт.

6

180917C1

CUSHION

ASSEMBLY - seat

1шт.

7

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

8

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

10

91668C1

PLATE

SUPPORT - seat bracket, left

1шт.

12

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

6шт.

13

91669C1

PLATE

SUPPORT - seat bracket, right

1шт.

14

91659C1

RAIL

ADJUSTER ASSEMBLY - seat track

2шт.

15

192996C1

ROD

- seat adjusting link

1шт.

16

98199C1

ROD

- seat adjusting link

1шт.

17

86511922

SCREW,Pan, #10 - 24 x 3/4"

- pan head cross recess, No. 10 x 3/4 inch

2шт.

18

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

20

1301216C3

ARMREST

REST - arm

1шт.

21

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

SCREW - hex flange lock, 5/16 NC x 1/2 inch

2шт.

22

192999C1

SUPPORT

- arm rest mounting

1шт.

23

196970C1

KNOB

- arm rest

2шт.

24

25708R1

WASHER

- flat, 11/32 x 11/16 x 5/64 inch

2шт.

25

1301410C1

CHANNEL

- seat bracket filler

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

2шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

29

193000C1

PLATE

- platform center support, seat

1шт.

30

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, , Seat platform Hex Wash Hd, 5/16"-18 x 13/16"

10шт.

31

193001C2

SUPPORT

- platform center side, seat

2шт.

32

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- 5/16 NC x 3/4 inch, seat platform

21шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC, seat platform

21шт.

34

193003C1

SUPPORT ASSY.

SUPPORT - platform center rear, seat

1шт.

35

193006C3

SUPPORT

- center front, seat platform

1шт.
