(9C-12) - BASKET TOP, 1844 COTTON PICKER

Запчасти Case IH 1844 (9C-12) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET

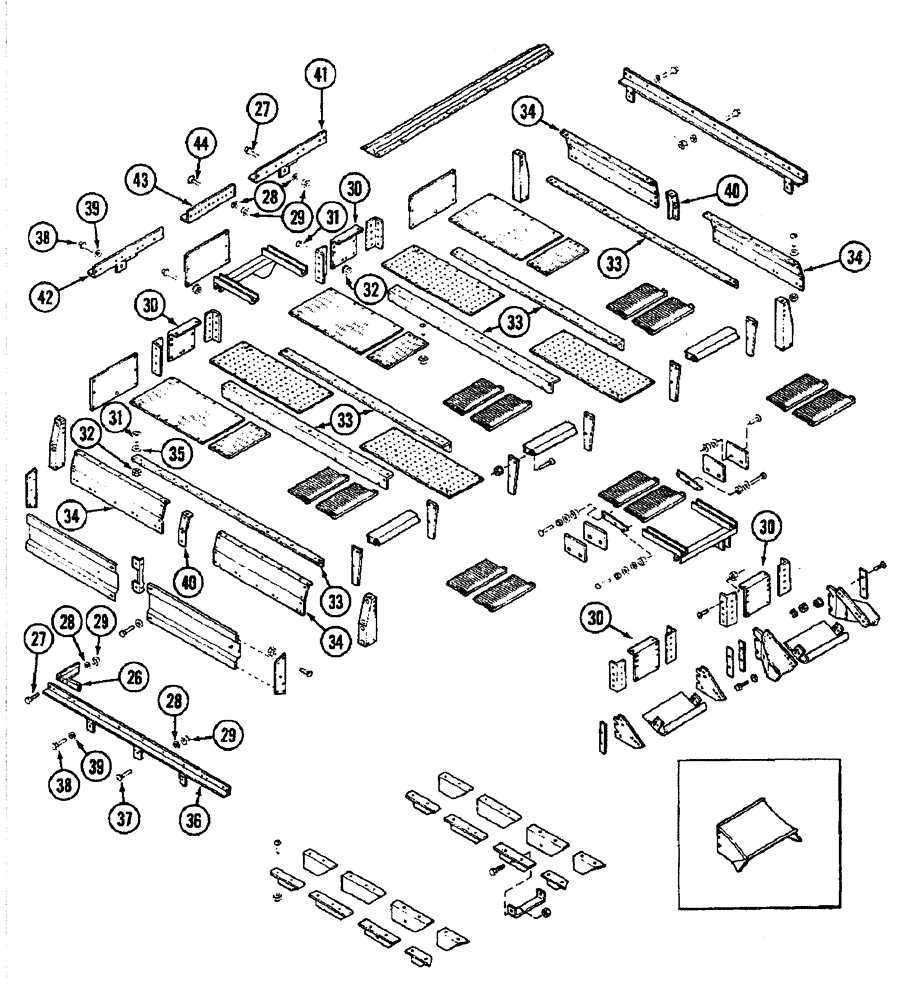

Схема запчастей Case IH 1844 - (9C-12) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET
34
34
29
38
33
31
28
28
30
41
27
30
29
38
30
40
39
37
31
39
40
44
33
33
26
35
29
34
27
30
34
28
33
32
36
32
43
42
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

26

1278117C1

ANGLE

BRACE - corner

4шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

30

1260281C2

SUPPORT

- plate

4шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

33

1260291C4

ANGLE

BRACKET - support

6шт.

34

1260280C2

COVER

- side

4шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

36

1288774C2

ANGLE

BRACKET - side, right

1шт.

37

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

38

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

39

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

40

1260292C1

SUPPORT

- basket

2шт.

41

1288777C2

ANGLE BAR

BRACKET - support, left (Front and rear)

2шт.

42

1288778C2

ANGLE BAR

BRACKET - support, right (Front and rear)

2шт.

43

1270062C1

ANGLE BAR

BRACKET - support, tie

2шт.

44

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.
